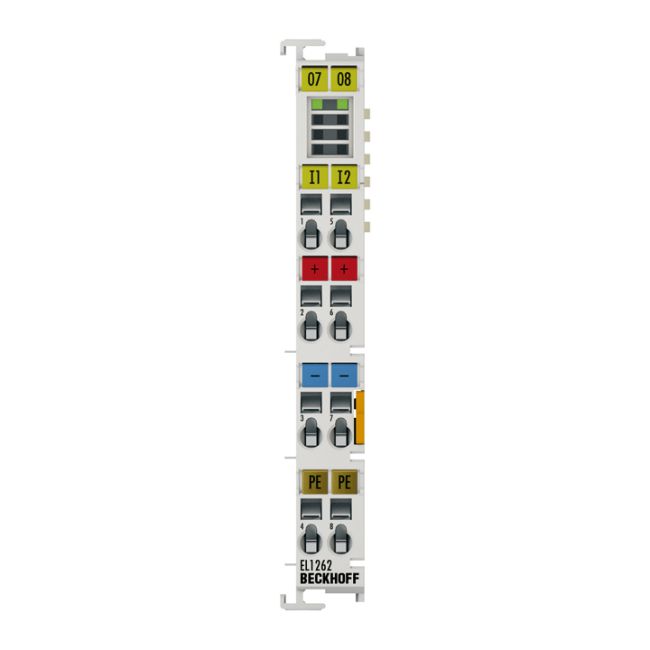

| Connection technology | 4-wire |
| Specification | similar to EN 61131-2, type 3, “0”: -3…5 V DC, “1”: 11…30 V DC, typ. 3 mA input current |
| Number of inputs | 2 |
| Sampling rate | max. 1 Msample/s |
| Nominal voltage | 24 V DC (-15 %/+20 %) |
| “0” signal voltage | -3…+5 V (EN 61131-2, type 3) |
| “1” signal voltage | 11…30 V (EN 61131-2, type 3) |
| Input current | typ. 3.0 mA |
| Input filter | typ. < 1 µs |
| Oversampling/multi-timestamping factor | n = integer multiple of the cycle time, 1…1000, see documentation |
| Precision of timestamp in the terminal | 10 ns (+ input delay) |
| Distributed clock precision | << 1 µs |
| Distributed clocks | yes |
| Current consumption power contacts | typ. 20 mA + load |
| Current consumption E-bus | typ. 70 mA |
| Electrical isolation | 500 V (E-bus/field potential) |
| Bit width in the process image | n x 2 inputs + 64 bit CycleCounter/latch |
| Special features | oversampling |
| Weight | approx. 55 g |
| Operating/storage temperature | 0…+55 °C/-25…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP20/variable |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL, ATEX, IECEx, cFMus |
| Ex marking | ATEX:
II 3 G Ex nA IIC T4 Gc
IECEx:
Ex nA IIC T4 Gc
Ex tc IIIC T135 °C Dc
cFMus:
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, AEx ec IIC T4 Gc |
