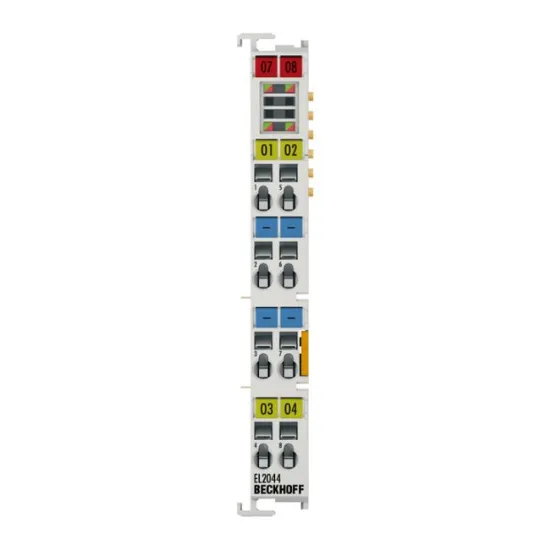

EL2044 | EtherCAT Terminal, 4-channel digital output, 24 V DC, 2 A, with extended diagnostics

Name: EL2044 | EtherCAT Terminal, 4-channel digital output, 24 V DC, 2 A, with extended diagnostics
SKU: EL2044
Price: 1000.00 VND
Availability: InStock

EL2044 | EtherCAT Terminal, 4-channel digital output, 24 V DC, 2 A, with extended diagnostics
SKU: EL2044
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Mua Ngay :

nhà chế tạo: ABB

SKU: EL2044

Ngày giao hàng: 1-3 days

1.000 ₫

Số lượng:

EL2044 | EtherCAT Terminal, 4-channel digital output, 24 V DC, 2 A, with extended diagnostics

Thông Tin Chi Tiết Sản Phẩm

Technical data	EL2044, ES2044
Connection technology	2-wire
Number of outputs	4
Nominal voltage	24 V DC (-15 %/+20 %)
Load type	ohmic, inductive, lamp load up to max. 24 W
Max. output current	max. 2 A (short-circuit proof) per channel, with diagnostic
Output stage	push (high-side switch)
Short-circuit current	typ. < 4 A
Reverse voltage protection	yes
Breaking energy	typ. < 150 mJ/channel
Switching times	typ. TON: 50 µs, typ. TOFF: 100 µs
Current consumption E-bus	typ. 55 mA
Electrical isolation	500 V (E-bus/field potential)
Current consumption power contacts	typ. 25 mA + load
Configuration	via TwinCAT System Manager
Special features	diagnostics via process data and LED: overtemperature, PowerFail, short circuit (per channel), open load detection
Weight	approx. 50 g
Operating/storage temperature	-25…+60 °C/-40…+85 °C
Relative humidity	95 %, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.	IP 20/variable
Pluggable wiring	for all ESxxxx terminals
Approvals/markings	CE
