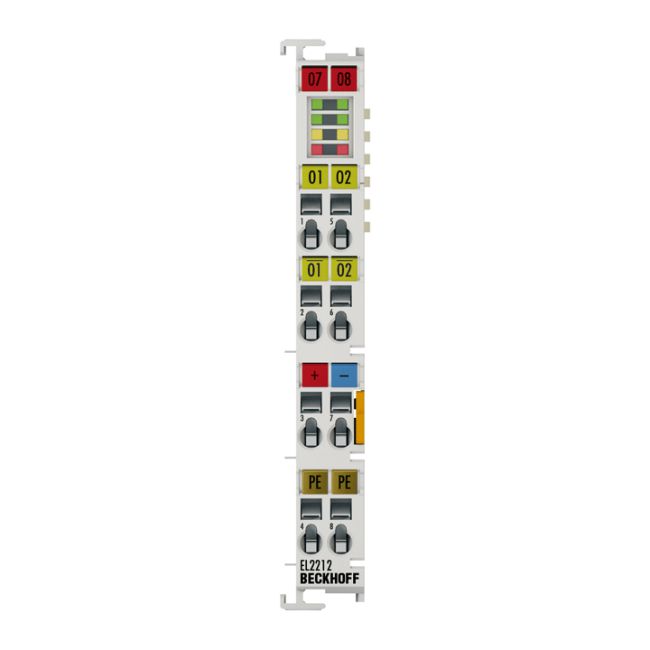

EL2212 | EtherCAT Terminal, 2-channel digital output, 24…72 V DC, 10 A, overexcitation, multi-timestamp

Name: EL2212 | EtherCAT Terminal, 2-channel digital output, 24…72 V DC, 10 A, overexcitation, multi-timestamp
SKU: EL2212
Price: 1000.00 VND
Availability: InStock

EL2212 | EtherCAT Terminal, 2-channel digital output, 24…72 V DC, 10 A, overexcitation, multi-timestamp
SKU: EL2212
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Mua Ngay :

nhà chế tạo: ABB

SKU: EL2212

Ngày giao hàng: 1-3 days

1.000 ₫

Số lượng:

EL2212 | EtherCAT Terminal, 2-channel digital output, 24…72 V DC, 10 A, overexcitation, multi-timestamp

Thông Tin Chi Tiết Sản Phẩm

Technical data	EL2212, ES2212
Connection technology	4-wire
Number of outputs	2
Nominal voltage	24…72 V DC (-15 %/+0 %)
Load type	inductive > 1 mH
Precision of timestamp in the terminal	10 ns
Resolution timestamp	1 ns
Distributed clocks	yes
Distributed clock precision	<< 1 µs
Max. output current	peak current: max. 10 A per channel, holding current: 0.2…2.5 A per channel
Output stage	full bridge (push-pull)
Short-circuit current	typ. 12 A
Reverse voltage protection	–
Switching times	without distributed clocks: typ. TON/TOFF 20 µs, with distributed clocks: typ. TON/TOFF < 1 µs via internal compensation
Current consumption E-bus	typ. 120 mA
Electrical isolation	500 V (E-bus/field potential)
Current consumption power contacts	load-dependent
Configuration	via TwinCAT System Manager
Special features	Multi-timestamping, current-controlled outputs can be connected in high-resistance mode.
Weight	approx. 50 g
Operating/storage temperature	0…+55 °C/-25…+85 °C
Relative humidity	95 %, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.	IP 20/variable
Pluggable wiring	for all ESxxxx terminals
Approvals/markings	CE
