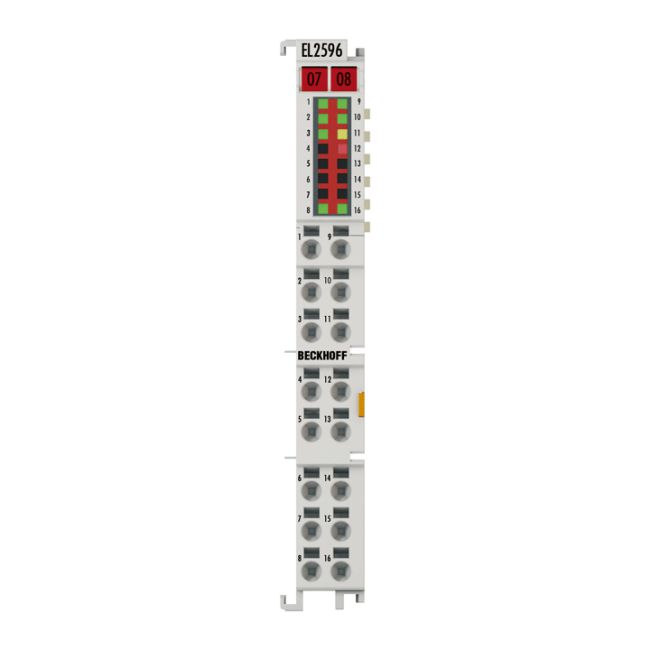

EL2596 | EtherCAT Terminal, 1-channel LED output, 24 V DC, 3 A

Name: EL2596 | EtherCAT Terminal, 1-channel LED output, 24 V DC, 3 A
SKU: EL2596
Price: 1000.00 VND
Availability: InStock

EL2596 | EtherCAT Terminal, 1-channel LED output, 24 V DC, 3 A
SKU: EL2596
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Mua Ngay :

nhà chế tạo: ABB

SKU: EL2596

Ngày giao hàng: 1-3 days

1.000 ₫

Số lượng:

EL2596 | EtherCAT Terminal, 1-channel LED output, 24 V DC, 3 A

Thông Tin Chi Tiết Sản Phẩm

Technical data	EL2596
Recommended use	standard terminal for illumination in vision applications up to 24 V DC
Connection technology	2-wire
Number of outputs	1
Input voltage	24 V DC (-15 %/+20 %)
Load type	LED (ohmic)
Distributed clocks	yes
Distributed clock precision	<< 1 µs
Output voltage	Continuous light mode : 0…U_IN Continuous light operation PWM: 0…(U_IN – 0,5 V) Pulsed operation (0…2 A): 0…(U_IN – 2 V) Pulsed operation (3 A): 0…(U_IN – 3 V) linear behavior of the maximum output voltage between 2 A and 3 A
Max. output current	0…3 A in pulsed mode (depending on output voltage and Duty Cycle) 0…1.2 A in continuous mode
Switching times	typ. TON: < 1 µs, typ. TOFF: < 1 µs, pulses from 25 µs…10 s
Trigger output (to camera)	1 (electrically isolated, max. 10 mA push-pull, 10…24 V DC, Voltage adjustable via externally connectable voltage distributor)
Trigger input (from camera)	1 (electrically isolated, typ. 3 mA, 4…24 V DC, switchable sensitivity)
Current consumption E-bus	typ. 240 mA
Electrical isolation	500 V (E-bus/field potential)
Current consumption power contacts	–
Special features	constant voltage, constant current and PWM as available operating modes; extensive real-time diagnostics; connection option voltage divider TriggerOut; continuous LED operation; RGB/common anode operation
Weight	approx. 55 g
Operating/storage temperature	0…+55 °C/-25…+85 °C
Relative humidity	95 %, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.	IP 20/see documentation
Approvals/markings	CE
