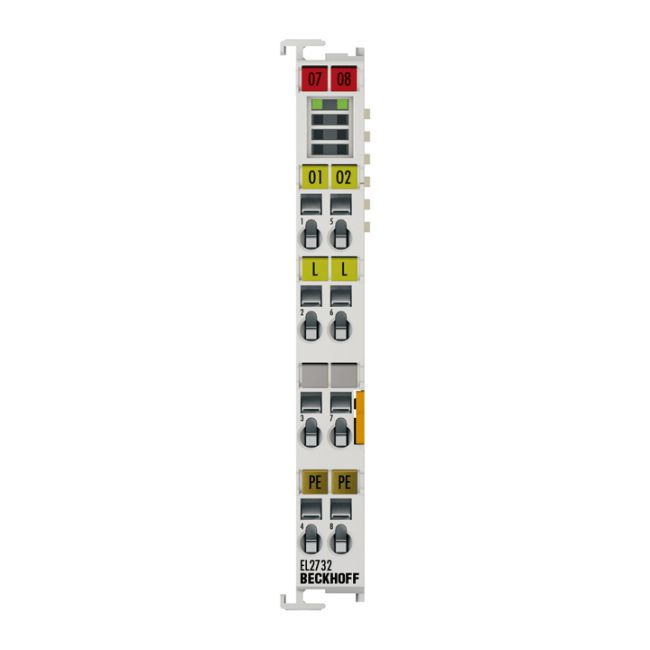

EL2732 | EtherCAT Terminal, 2-channel triac output, 12…230 V AC, 1 A, without power contacts

Name: EL2732 | EtherCAT Terminal, 2-channel triac output, 12…230 V AC, 1 A, without power contacts
SKU: EL2732
Price: 1000.00 VND
Availability: InStock

EL2732 | EtherCAT Terminal, 2-channel triac output, 12…230 V AC, 1 A, without power contacts
SKU: EL2732
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Mua Ngay :

nhà chế tạo: ABB

SKU: EL2732

Ngày giao hàng: 1-3 days

1.000 ₫

Số lượng:

EL2732 | EtherCAT Terminal, 2-channel triac output, 12…230 V AC, 1 A, without power contacts

Thông Tin Chi Tiết Sản Phẩm

Technical data	EL2732, ES2732
Connection technology	triac output, 2-wire
Number of outputs	2 x make contacts (without power contacts), mutually locked
Rated load voltage	12…230 V AC
Load type	ohmic, inductive
Distributed clocks	–
Max. output current	1 A (leakage current: typ. 0.8 mA, max. 1.5 mA) per channel
Switching times	in zero crossing, 0.1…10 ms
Rotating field frequency	47…63 Hz
Surge voltage protection	> 275 V
Peak current	40 A (16 ms), 1.5 A (30 s)
Standby current	0.6 mA
Leakage current (OFF state)	typ. 0.8 mA, max. 1.5 mA
Switch-on time	0.1…10 ms, zero crossing
Switch-off time	T/2
Residual voltage	max. 1.5 V (60 mA…1 A), 150 ? (< 60 mA)
Current consumption E-bus	typ. 120 mA
Electrical isolation	500 V (E-bus/field voltage), 3750 V AC (1 min.)
Current consumption power contacts	–
Bit width in the process image	2 outputs
Configuration	no address or configuration setting
Special features	suitable for conventional blind motors
Weight	approx. 55 g
Operating/storage temperature	0…+55 °C/-25…+85 °C
Relative humidity	95 %, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.	IP 20/variable
Pluggable wiring	for all ESxxxx terminals
Approvals/markings	CE
