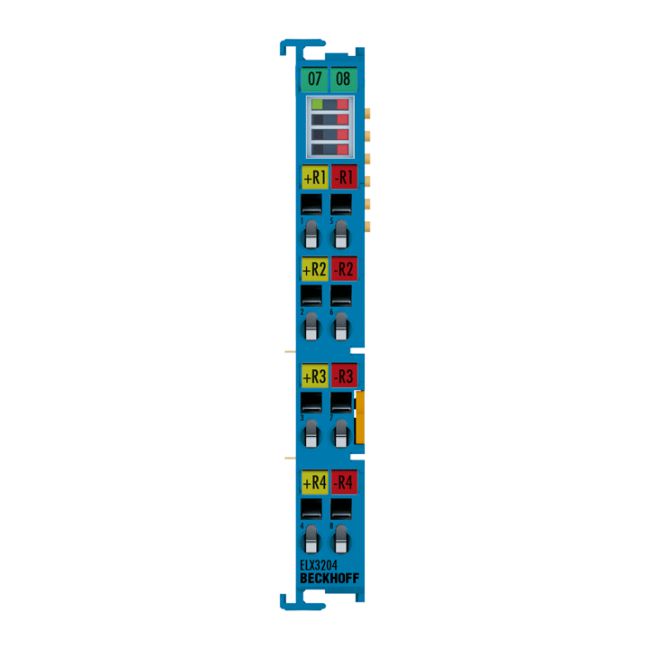

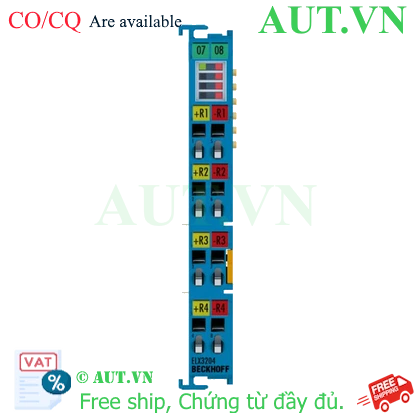

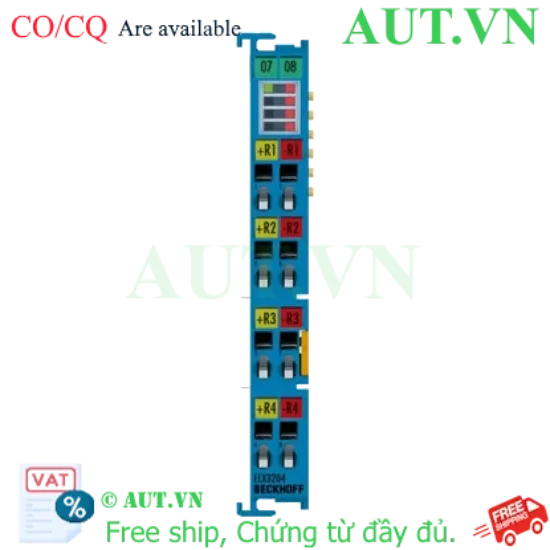

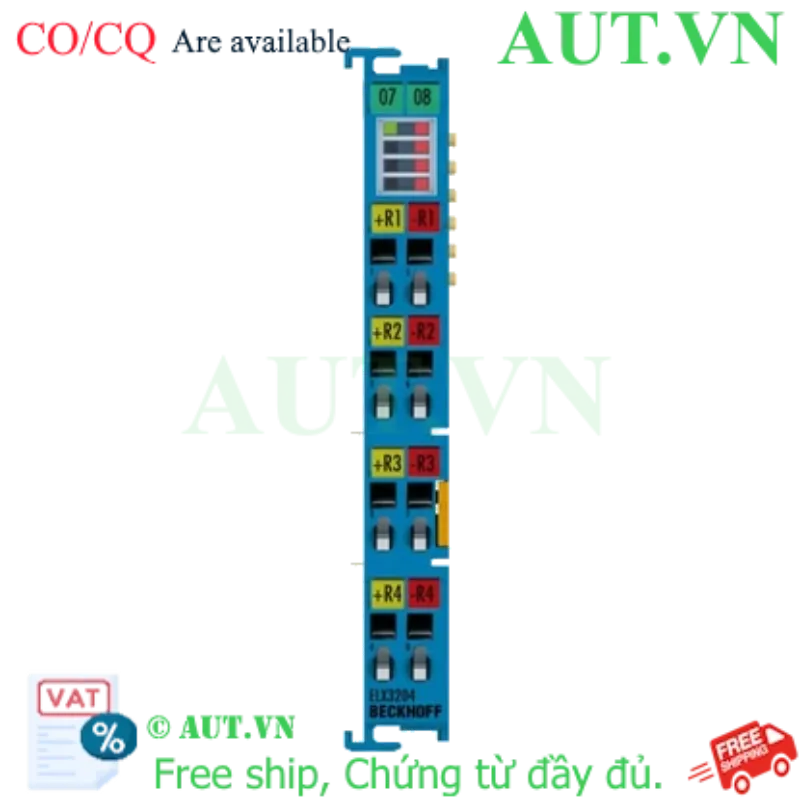

| Number of inputs | 4 (differential) |
| Power supply | via the E-bus |
| Connection method | 2-wire |
| Temperature range | -200…+850 °C (Pt sensors); -60…+250 °C (Ni sensors), for further types and details see documentation |
| Resolution | up to 0.01 °C per digit (preset: 0.1 °C per digit) |
| Measuring current | < 1 mA (depending on sensor and measuring range) |
| Measuring error | < ±0.3 % (relative to full scale value) |
| Internal resistance | typ. ? 10 k? (differential) |
| Input filter limit frequency | typ. 1 kHz |
| Sensor types | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (10 ?…4 k?), KT(Y) sensors |
| Conversion time | 10…3300 ms (adjustable, default: 270 ms) |
| Supply voltage electronics | 24 V DC (via power contacts), ELX9560 power supply |
| Current consumption power contacts | typ. 10 mA |
| Current consumption E-bus | typ. 70 mA |
| Special features | limit value monitoring, digital filter and characteristic curve linearization integrated, connection method freely configurable |
| Weight | approx. 60 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/see documentation |
| Approvals/markings | CE, UL, ATEX, IECEx, cFMus, CCC |
| Ex marking | ATEX:
II 3(1)G Ex ec [ia Ga] IIC T4 Gc
II (1)D [Ex ia Da] IIIC
I (M1) [Ex ia Ma] I
IECEx:
Ex ec [ia Ga] IIC T4 Gc
[Ex ia Da] IIIC
[Ex ia Ma] I
cFMus:
AIS Class I, II, III, Division 1, Groups A thru G
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, AEx ec [ia Ga] IIC T4 Gc
[AEx ia Da] IIIC T4 |
