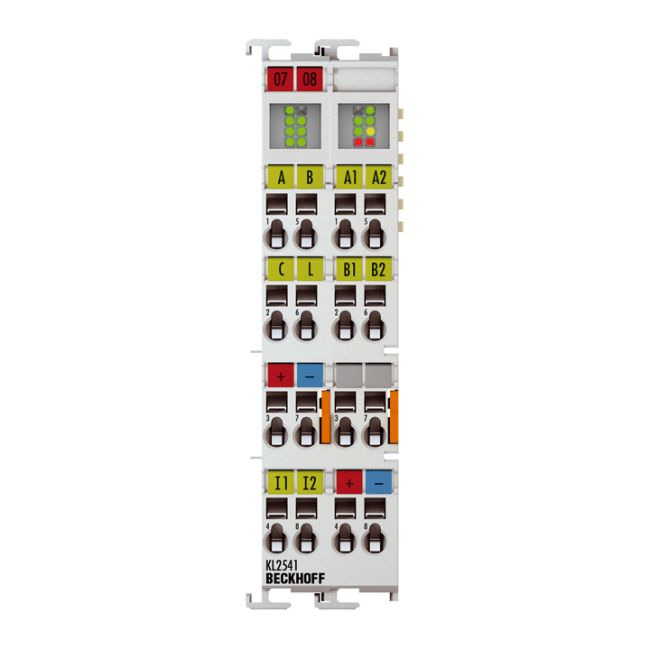

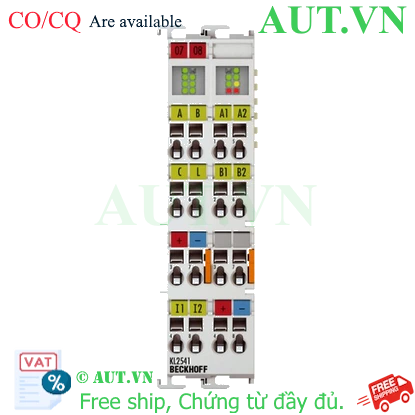

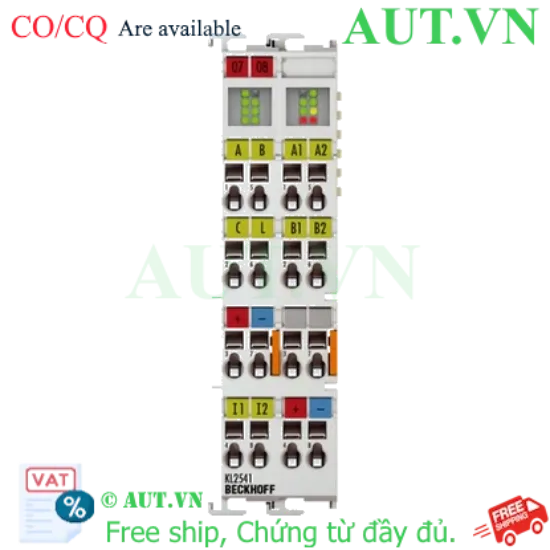

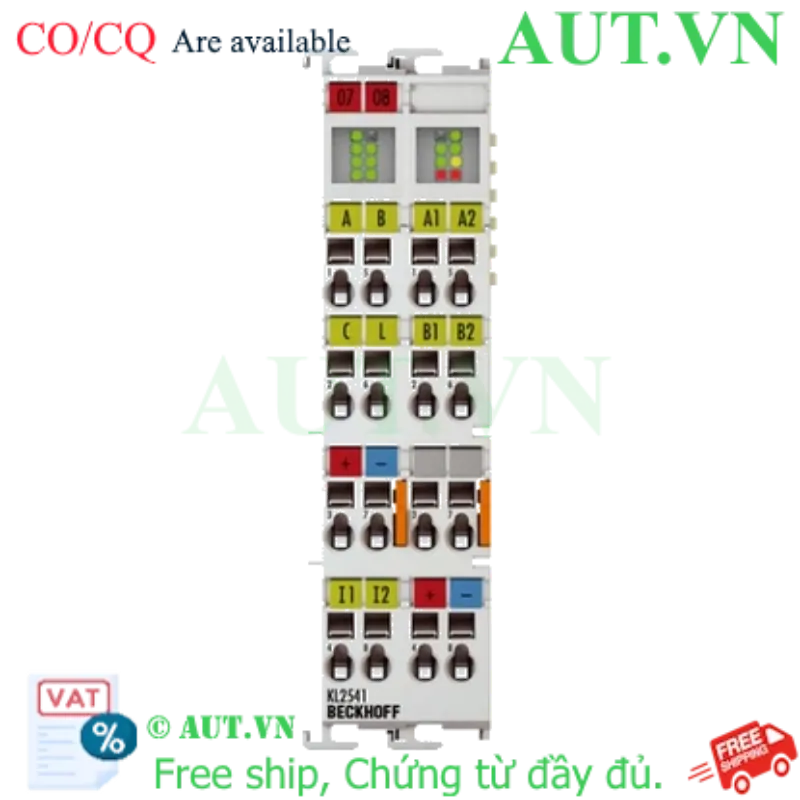

| Technology | compact drive technology |
| Number of channels | 1 |
| Number of outputs | 1 x stepper motor, encoder input |
| Number of inputs | 2 x end position, 1 x encoder |
| Connection technology | direct motor connection |
| Supply voltage electronics | 24 V DC (via power contacts) |
| Supply voltage power | 8…48 V DC (external) |
| Output current | max. 5.0 A |
| Encoder supply | 24 V DC | 5 V DC |
| Step frequency | max. 125,000 steps/s |
| Step pattern | full step, half step, up to 64-fold micro stepping |
| Current controller frequency | approx. 25 kHz |
| Resolution | approx. 5000 positions in typ. applications (per revolution) |
| Diagnostics LED | error phase A and B, loss of step/stagnation, power, enable |
| Encoder input signal | 5…24 V DC, typ. 5 mA, single-ended |
| Input frequency | max. 400,000 increments/s (with 4-fold evaluation) |
| Current consumption power contacts | typ. 35 mA |
| Current consumption K-bus | typ. 100 mA |
| Bit width in the process image | input/output: 2 x 16 bit data + 1 x 8 bit control/status |
| Special features | travel distance control, encoder input |
| Electrical isolation | 500 V (K-bus/signal voltage) |
| Weight | approx. 100 g |
| Operating/storage temperature | 0…+55 °C/-25…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/see documentation |
| Pluggable wiring | for all KSxxxx Bus Terminals |
| Approvals/markings | CE, UL |
