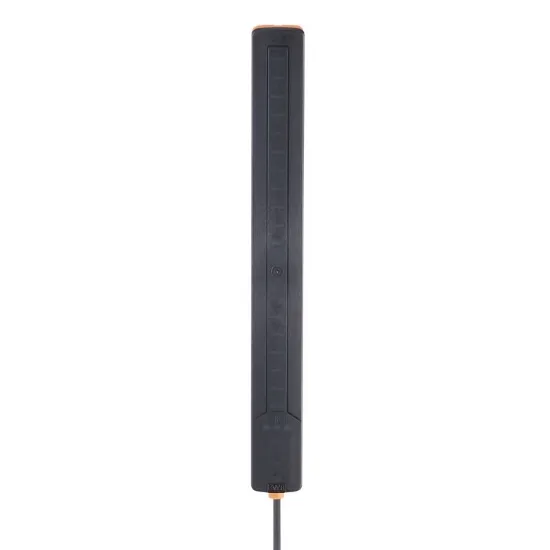

Ảnh của Cảm biến điện dung IFM KQ1000

Cảm biến điện dung IFM KQ1000

Cảm biến điện dung IFM KQ1000
SKU: KQ1000
Hãng sản xuất: IFM
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Mua Ngay : Zalo

nhà chế tạo: IFM
SKU: KQ1000
Ngày giao hàng: 1-3 days
1.000 ₫
Giao đến
*
*
Phương pháp vận chuyển
Tên
Ngày dự kiến giao hàng
Giá bán
Không có tùy chọn giao hàng nào

Cảm biến điện dung IFM KQ1000


Thông Tin Chi Tiết Sản Phẩm


Product characteristics
Electrical design PNP/NPN; (parameterisable)
Communication interface IO-Link
Dimensions [mm] 250 x 28 x 16.7
Application
Media dry bulk material; aqueous solutions; oils
Cannot be used for highly adhesive media
Electrical data
Operating voltage [V] 10…30 DC; (IO-Link: 18…30 DC)
Current consumption [mA] < 50
Protection class III
Reverse polarity protection yes
Max. power-on delay time [ms] 1300
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 3
Outputs
Electrical design PNP/NPN; (parameterisable)
Number of digital outputs 3
Permanent current rating of switching output DC [mA] 200
Max. resistance switching output [Ω] 8
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Measuring range [mm] < 200
Measuring/setting range
Detection range [mm] 228
Set point SP [%] 5…95
Reset point rP [%] 4…94
In steps of [%] 1
Accuracy / deviations
Repeatability [% of the final value] 2
Offset deviation [% of the final value] 4
Resolution [% of the final value] 1
Linearity deviation [% of the final value] 1
Response times
Response time [ms] 1300
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
Profiles Digital Measuring Sensor Profile, Common Profile
SIO mode yes
Required master port type A
Process data analogue 1
Process data binary 3
Min. process cycle time [ms] 9.6
IO-Link process data (cyclical)
function bit length
process value 16
exponent 8
device status 4
binary switching information 3
IO-Link functions (acyclical) direction of installation; limitation of sensor elements; sensitivity; minimum recognition threshold; Performance in case of a fault; error delay; Damping; LED_Modus; switch-on cycle counter; operating hours counter; switching cycles counter; min./max. process value; internal temperature; min./max. internal temperature; diagnostic data for level
Supported DeviceIDs
Type of operation DeviceID
Default 924
Note
For further information please see the IODD PDF file under “Downloads”
Operating conditions
Applications DIN EN 60654-1 application class B2
Ambient temperature [°C] -20…80
Storage temperature [°C] -25…85
Protection IP 65; IP 67
Mechanical data
Weight [g] 432
Dimensions [mm] 250 x 28 x 16.7
Materials PBT; PC;
Displays / operating elements
Display
operation 1 x LED, green
switching status 3 x LED, yellow
function 20 x LED, green
Accessories
Accessories (supplied)
adhesive tape: 1 x 1,2 x 23 x 240 mm
Accessories (optional)
Mounting adapter:, E12675
Mounting adapter:, E12676
Fixing strap:, E10880
Remarks
Remarks
when used on IO-Link class B masters switching outputs OUT2, OUT3 have to be switched off
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 2 m, PUR; 5 x 0.34 mm²
>
