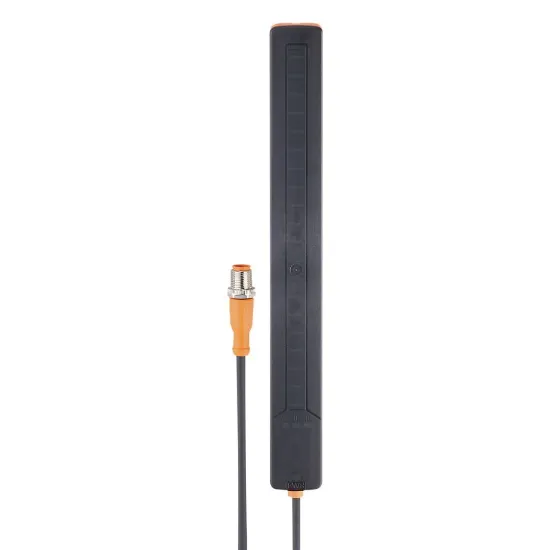

| Product characteristics |
|---|
| Electrical design | PNP/NPN; (parameterisable) |
| Communication interface | IO-Link |
| Dimensions [mm] | 250 x 28 x 16.7 |
| Application |
|---|
| Media | dry bulk material; aqueous solutions; oils |
| Cannot be used for | highly adhesive media |
| Electrical data |
|---|
| Operating voltage [V] | 10…30 DC; (IO-Link: 18…30 DC) |
| Current consumption [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 1300 |
| Inputs / outputs |
|---|
| Number of inputs and outputs | Number of digital outputs: 3 |
| Outputs |
|---|
| Electrical design | PNP/NPN; (parameterisable) |
| Number of digital outputs | 3 |
| Permanent current rating of switching output DC [mA] | 200 |
| Max. resistance switching output [Ω] | 8 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Detection zone |
|---|
| Measuring range [mm] | < 200 |
| Measuring/setting range |
|---|
| Detection range [mm] | 228 |
| Set point SP [%] | 5…95 |
| Reset point rP [%] | 4…94 |
| In steps of [%] | 1 |
| Accuracy / deviations |
|---|
| Repeatability [% of the final value] | 2 |
| Offset deviation [% of the final value] | 4 |
| Resolution [% of the final value] | 1 |
| Linearity deviation [% of the final value] | 1 |
| Response times |
|---|
| Response time [ms] | 1300 |
| Software / programming |
|---|
| Parameter setting options | Damping; hysteresis / window; fault indication; diagnostic function; sensitivity; internal temperature; limitation of measuring range; adjustable switching delay; zero-point calibration; direction of installation; LEDs can be deactivated |
| Interfaces |
|---|
| Communication interface | IO-Link |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Digital Measuring Sensor Profile, Common Profile |
| SIO mode | yes |
| Required master port type | A |
| Process data analogue | 1 |
| Process data binary | 3 |
| Min. process cycle time [ms] | 9.6 |
| IO-Link process data (cyclical) | | function | bit length | | process value | 16 | | exponent | 8 | | device status | 4 | | binary switching information | 3 |
|
| IO-Link functions (acyclical) | direction of installation; limitation of sensor elements; sensitivity; minimum recognition threshold; Performance in case of a fault; error delay; Damping; LED_Modus; switch-on cycle counter; operating hours counter; switching cycles counter; min./max. process value; internal temperature; min./max. internal temperature; diagnostic data for level |
| Supported DeviceIDs | | Type of operation | DeviceID | | Default | 924 |
|
| Note | | For further information please see the IODD PDF file under “Downloads” |
|
| Operating conditions |
|---|
| Applications | DIN EN 60654-1 application class B2 |
| Ambient temperature [°C] | -20…80 |
| Storage temperature [°C] | -25…85 |
| Protection | IP 65; IP 67 |
| Mechanical data |
|---|
| Weight [g] | 377.5 |
| Dimensions [mm] | 250 x 28 x 16.7 |
| Materials | PBT; PC; |
| Displays / operating elements |
|---|
| Display | | operation | 1 x LED, green | | switching status | 3 x LED, yellow | | function | 20 x LED, green |
|
| Accessories |
|---|
| Accessories (optional) | | adhesive tape: 1 x 23 mm x 240 mm |
|
| Remarks |
|---|
| Remarks | | when used on IO-Link class B masters switching outputs OUT2, OUT3 have to be switched off |
|
| Pack quantity | 1 pcs. |
| Electrical connection |
|---|
| Connection | Connector: 1 x M12 |
| Electrical connection – plug |
|---|
| Cable: 0.1 m, PUR |
