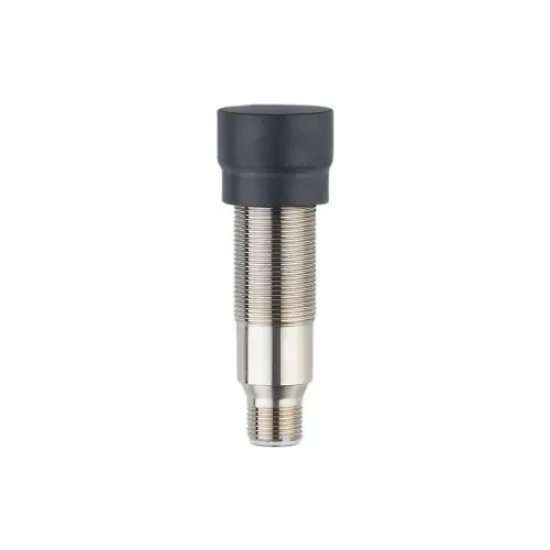

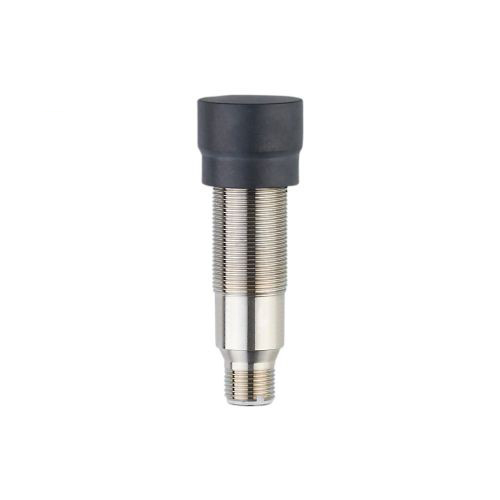

Ảnh của Cảm biến tiệm cận IFM GG714S

Cảm biến tiệm cận IFM GG714S

Cảm biến tiệm cận IFM GG714S
SKU: GG714S
Hãng sản xuất: IFM
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Mua Ngay : Zalo

nhà chế tạo: IFM
SKU: GG714S
Ngày giao hàng: 1-3 days
1.000 ₫
Giao đến
*
*
Phương pháp vận chuyển
Tên
Ngày dự kiến giao hàng
Giá bán
Không có tùy chọn giao hàng nào

Cảm biến tiệm cận IFM GG714S


Thông Tin Chi Tiết Sản Phẩm


Product characteristics
Electrical design PNP
Output function 2 x OSSD (A1 and A2)
Enable zone [mm] 0…6.5
Housing threaded type
Dimensions [mm] M18 x 1 / L = 71.5
Application
Special feature Gold-plated contacts
Type of operation continuous operation (maintenance-free)
Application industrial application
Electrical data
Operating voltage [V] 19.2…30 DC
Rated insulation voltage [V] 30
Current consumption [mA] < 30
Protection class III
Reverse polarity protection yes
Max. power-on delay time [ms] 1000
Outputs
Electrical design PNP
Output function 2 x OSSD (A1 and A2)
Max. voltage drop switching output DC [V] 2.5; (30 mA)
Permanent current rating of switching output DC [mA] 100
Output data Interface type C class 1
Output voltage at 24 V compatible with EN 61131-2 inputs type 1, 2
Short-circuit protection yes
Overload protection no
Max. capacitive load CL_max [nF] 20
Detection zone
Enable zone [mm] 0…6.5
Safe switching-off distance s(ar) [mm] 11
Response times
Response time to safety request [ms] 1
Response time when approaching the enable zone [ms] 1
Risk time (response time for safety-related faults) [ms] 20
Operating conditions
Ambient temperature [°C] -40…70
Rate of temperature change [K/min] 0.5
Max. relative air humidity [%] briefly: 5…95 %; permanent: 5…70 %
Air pressure [kPa] 80…106
Max. height above sea level [m] 2000
Ionising radiation not permissible
Salt spray IEC 60068-2-52
Protection IP 65; IP 67; IP 69K; (with ifm socket duly screwed on)
UV radiation DIN ISO 4892-1, DIN ISO 4892-2
Chemical media
test according to ISO 16750-5
The following media were tested for 22 hours at 75 °C Liebherr Hydraulik 37
Liebherr Hydraulik Gear ATF
Liebherr Hydraulik Plus Arctic
diesel
biodiesel
brake fluid
urea
The following media were tested for 22 hours at 25 °C battery acid
cold cleaner
ammonia-based cleaner
The following media were tested for 2 hours at 25 °C wheel rim cleaner
Safety classification
ISO 13849-1 category 2, PL d
IEC 61508 SIL 2
IEC 62061 SIL cl 2
Mission time TM [h] ≤ 87600
Mission time TM (additional indication)
10 years
Safety-related reliability PFHD [1/h] 1.0E-07
Mechanical data
Weight [g] 136
Housing threaded type
Mounting non-flush mountable
Dimensions [mm] M18 x 1 / L = 71.5
Thread designation M18 x 1
Materials housing: stainless steel (1.4571/316Ti ) ; cover: PBT; plug: PPS GF40
Accessories
Accessories (supplied)
lock nuts: 2
Remarks
Remarks
Unless stated otherwise, all data refer to the reference target plate to IEC 60947-5-2 over the whole temperature range.
(FE360 = ST37K) 24x24x1 mm
Pack quantity 1 pcs.
Electrical connection – plug
Connection Connector: 1 x M12; Contacts: gold-plated
>
