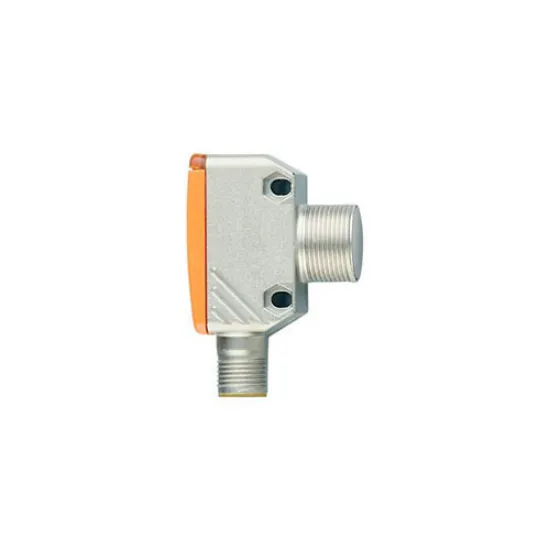

Ảnh của Cảm biến quang IFM OGH282 (khuếch tán)

Cảm biến quang IFM OGH282 (khuếch tán)

Cảm biến quang IFM OGH282 (khuếch tán)
Compact and robust housing
Excellent price/performance ratio
Long ranges
Setting process saves time and cost during set-up
Extensive range of fixing components
SKU: OGH282
Hãng sản xuất: IFM
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Mua Ngay : Zalo

nhà chế tạo: IFM
SKU: OGH282
Ngày giao hàng: 1-3 days
1.000 ₫
Giao đến
*
*
Phương pháp vận chuyển
Tên
Ngày dự kiến giao hàng
Giá bán
Không có tùy chọn giao hàng nào

Cảm biến quang IFM OGH282 (khuếch tán)


Thông Tin Chi Tiết Sản Phẩm


Product characteristics
Type of light red light
Communication interface IO-Link
Housing rectangular
Dimensions [mm] 52.6 x 19.1 x 35.9
Application
Special feature Background suppression
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10…30 DC
Current consumption [mA] 25
Protection class III
Reverse polarity protection yes
Type of light red light
Wave length [nm] 645
Outputs
Electrical design NPN
Output function light-on mode
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Range [mm] < 100; (white paper 200 x 200 mm 90% remission)
Range on white object (90 % remission) [mm] < 100
Range on grey object (18 % remission) [mm] < 100
Range on black object (6 % remission) [mm] < 100
Range adjustable no
Max. light spot diameter [mm] 7
Light spot dimensions refer to at maximum range
Background suppression available yes
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
Profiles Smart Sensor: Device Identification; Device Diagnosis; Teach Channel; Switching Channel
SIO mode yes
Required master port type A
Min. process cycle time [ms] 10
IO-Link process data (cyclical)
function bit length
process value 16
device status 4
binary switching information 1
IO-Link functions (acyclical) application specific tag; operating hours counter; switching cycles counter
Supported DeviceIDs
Type of operation DeviceID
Default 1138
Note
For further information please see the IODD PDF file under “Downloads”
Operating conditions
Ambient temperature [°C] -25…60
Storage temperature [°C] -40…60
Protection IP 67
Mechanical data
Weight [g] 60
Housing rectangular
Dimensions [mm] 52.6 x 19.1 x 35.9
Materials diecast zinc; PEI
Lens material
PEI
Lens alignment side lens
Displays / operating elements
Display
switching status 1 x LED, yellow
operation 1 x LED, green
Accessories
Accessories (supplied)
lock nut: 1 x
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12
Other data
Repeatability / precision: 6 σ
repeatability of the measured values
Abstand white (90 % remission) black (6 %…90 % remission)
20 mm 0.5 mm 1.0 mm
50 mm 0.8 mm 2.0 mm
100 mm 1.5 mm 4.5 mm
Accuracy
Abstand white (90 % remission) black (6 %…90 % remission)
20 mm ± 1.5 mm ± 1.8 mm
50 mm ± 3.0 mm ± 3.5 mm
100 mm ± 5.0 mm ± 6.5 mm
The values apply at
Extraneous light on the object < 10 klx
constant ambient conditions 23 °C / 960 hPa
minimum power-on time in minutes 10
>
