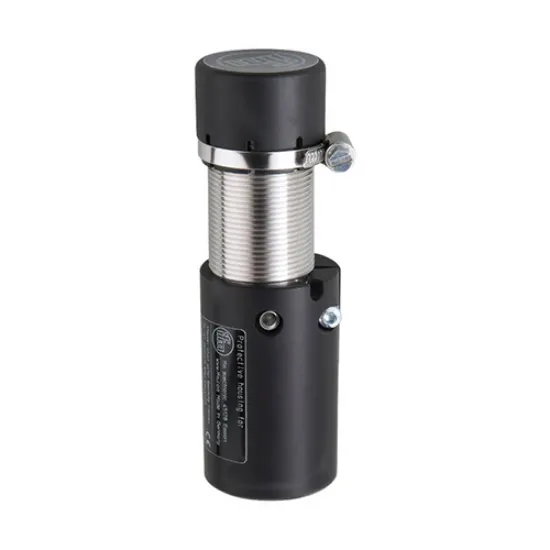

Ảnh của Cảm biến tốc độ IFM DI506A 5…300 Imp/min

Cảm biến tốc độ IFM DI506A 5…300 Imp/min

Cảm biến tốc độ IFM DI506A 5…300 Imp/min
SKU: DI506A
Hãng sản xuất: IFM
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Mua Ngay : Zalo

nhà chế tạo: IFM
SKU: DI506A
Ngày giao hàng: 1-3 days
1.000 ₫
Giao đến
*
*
Phương pháp vận chuyển
Tên
Ngày dự kiến giao hàng
Giá bán
Không có tùy chọn giao hàng nào

Cảm biến tốc độ IFM DI506A 5…300 Imp/min


Thông Tin Chi Tiết Sản Phẩm


Product characteristics
Electrical design PNP
Output function normally open
Sensing range [mm] 10; (without impact protection housing: flush mountable; with impact protection housing: non-flush mountable 7 mm)
Dimensions [mm] M30 x 1.5 / L = 82
Application
Application simple evaluation of rotating and linear movement with regard to underspeed; blocking
Electrical data
Nominal voltage DC [V] 10…36
Current consumption [mA] < 15
Protection class III
Reverse polarity protection yes
Outputs
Total number of outputs 1
Electrical design PNP
Output function normally open
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 250
Short-time current rating of switching output [mA] 250
Switching frequency DC [Hz] 100
Short-circuit proof yes
Overload protection yes
Detection zone
Sensing range [mm] 10; (without impact protection housing: flush mountable; with impact protection housing: non-flush mountable 7 mm)
Sensing range adjustable no
Real sensing range Sr [mm] 10 ± 10 %; (without impact protection housing flush mountable)
Operating distance [mm] 0…5; (with impact protection housing non-flush mountable)
Measuring/setting range
Setting range [Imp/min] 5…300
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr] 10
Response times
Start-up delay [s] 5; (typical)
Max. damping frequency [Imp/min] 15000
Software / programming
Adjustment of the switch point multiturn potentiometer
Operating conditions
Ambient temperature [°C] -20…50
Protection IP 67
Mechanical data
Weight [K40] 302
Mounting flush mountable
Dimensions [mm] M30 x 1.5 / L = 82
Thread designation M30 x 1.5
Materials brass special coating; PBT; PPE; TPE-U; PA 6.6
Displays / operating elements
Display
switching status 1 x LED, green
input signal 1 x LED, yellow
Accessories
Accessories (supplied)
lock nuts: 2
Impact protection housing
Mounting clamp
Remarks
Notes discontinued article
Electrical connection – plug
Connection Connector: 1 x M12
>
