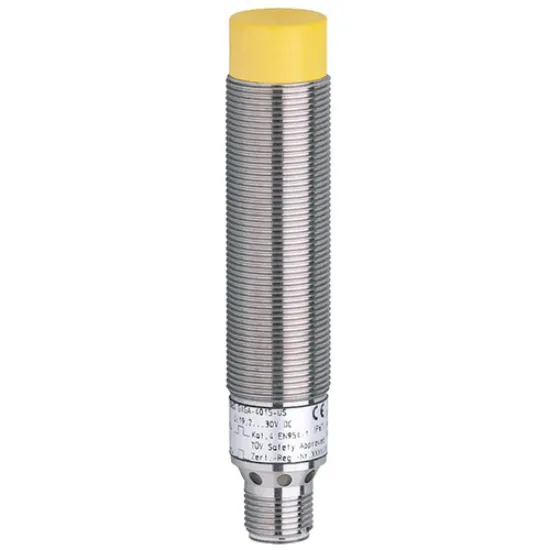

Ảnh của Fail-safe sensor IFM GG505S

Fail-safe sensor IFM GG505S

Fail-safe sensor IFM GG505S
SKU: GG505S
Hãng sản xuất: IFM
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Mua Ngay : Zalo

nhà chế tạo: IFM
SKU: GG505S
Ngày giao hàng: 1-3 days
1.000 ₫
Giao đến
*
*
Phương pháp vận chuyển
Tên
Ngày dự kiến giao hàng
Giá bán
Không có tùy chọn giao hàng nào

Fail-safe sensor IFM GG505S


Thông Tin Chi Tiết Sản Phẩm


Product characteristics
Output function clock signal
Enable zone [mm] 3…6
Housing threaded type
Dimensions [mm] M18 x 1 / L = 90
Application
Special feature Gold-plated contacts
Type of operation continuous operation (maintenance-free)
Application industrial application
Electrical data
Operating voltage [V] 19.2…30 DC
Current consumption [mA] < 15
Protection class III
Reverse polarity protection yes
Max. power-on delay time [ms] 5000
Inputs
Max. input capacitance Ci_max [nF] 2
Outputs
Output function clock signal
Output data Interface type B
Short-circuit protection yes
Max. capacitive load CL_max [nF] 20
Detection zone
Enable zone [mm] 3…6
Safe switching-off distance s(ar) [mm] 15
Response times
Response time to safety request [ms] 20
Response time when approaching the enable zone [ms] 200; (typical 100)
Operating conditions
Applications class C to EN 60654-1 weatherproof application
Ambient temperature [°C] -25…70
Note on ambient temperature
operational life ≤ 87600 h
Ambient temperature [°C] 10…40
Note on ambient temperature
operational life ≤ 175200 h
Rate of temperature change [K/min] 0.5
Max. relative air humidity [%] briefly: 5…95 %; permanent: 5…70 %
Air pressure [kPa] 80…106
Ionising radiation not permissible
Salt spray no
Protection IP 68; IP 69K; (to EN 60529)
Safety classification
ISO 13849-1 category 3, PL e
IEC 61508 SIL 3
Mission time TM [h] ≤ 175200
Mission time TM (additional indication)
20 years
Safety-related reliability PFHD [1/h] 1E-08
Mechanical data
Weight [g] 190
Housing threaded type
Mounting non-flush mountable
Dimensions [mm] M18 x 1 / L = 90
Thread designation M18 x 1
Materials stainless steel; PBT
Displays / operating elements
Display
operation 1 x LED, green
signal 1 x LED, yellow
Accessories
Accessories (supplied)
lock nuts: 2
Remarks
Remarks
Unless stated otherwise, all data refer to the reference target plate to IEC 60947-5-2 over the whole temperature range.
(FE360 = ST37K) 24x24x1 mm
Pack quantity 1 pcs.
Electrical connection – plug
Connection Connector: 1 x M12; Contacts: gold-plated
>
