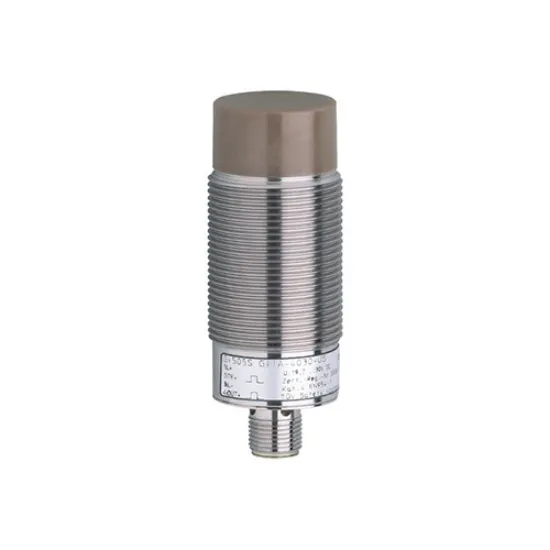

Fail-safe sensor IFM GI505S Fail-safe sensor IFM GI505S SKU: GI505S Hãng sản xuất: IFM Chất lượng: Mới 100% Bảo hành: Chính hãng Chứng từ: CO/CQ, hóa đơn VAT Mua Ngay : nhà chế tạo: IFM SKU: GI505S Ngày giao hàng: 1-3 days 1.000 ₫ Số lượng: Thêm vào giỏ hàng Giao đến Chọn quốc gia Vietnam Vietnam * Khác * Phương pháp vận chuyển Tên Ngày dự kiến giao hàng Giá bán Không có tùy chọn giao hàng nào Áp dụng Custom wishlist được Thêm vào danh sách yêu thích Thêm vào danh sách so sánh Fail-safe sensor IFM GI505SThông Tin Chi Tiết Sản Phẩm Product characteristics Output function clock signal Enable zone [mm] 6…12 Housing threaded type Dimensions [mm] M30 x 1.5 / L = 80 Application Special feature Gold-plated contacts Type of operation continuous operation (maintenance-free) Application industrial application Electrical data Operating voltage [V] 19.2…30 DC Current consumption [mA] < 15 Protection class III Reverse polarity protection yes Max. power-on delay time [ms] 5000 Inputs Max. input capacitance Ci_max [nF] 2 Outputs Output function clock signal Output data Interface type B Short-circuit protection yes Max. capacitive load CL_max [nF] 20 Detection zone Enable zone [mm] 6…12 Safe switching-off distance s(ar) [mm] 30 Response times Response time to safety request [ms] 20 Response time when approaching the enable zone [ms] 200; (typical 100) Operating conditions Applications class C to EN 60654-1 weatherproof application Ambient temperature [°C] 0…70 Note on ambient temperature operational life ≤ 87600 h Ambient temperature [°C] 10…40 Note on ambient temperature operational life ≤ 175200 h Rate of temperature change [K/min] 0.5 Max. relative air humidity [%] briefly: 5…95 %; permanent: 5…70 % Air pressure [kPa] 80…106 Ionising radiation not permissible Salt spray no Protection IP 68; IP 69K; (to EN 60529) Safety classification ISO 13849-1 category 3, PL e IEC 61508 SIL 3 Mission time TM [h] ≤ 175200 Mission time TM (additional indication) 20 years Safety-related reliability PFHD [1/h] 1E-08 Mechanical data Weight [g] 262.5 Housing threaded type Mounting non-flush mountable Dimensions [mm] M30 x 1.5 / L = 80 Thread designation M30 x 1.5 Materials PEEK; stainless steel; O-ring: EPDM Displays / operating elements Display operation 1 x LED, green signal 1 x LED, yellow Accessories Accessories (supplied) lock nuts: 2 Remarks Remarks Unless stated otherwise, all data refer to the reference target plate to IEC 60947-5-2 over the whole temperature range. (FE360 = ST37K) 45x45x1 mm Pack quantity 1 pcs. Electrical connection – plug Connection Connector: 1 x M12; Contacts: gold-plated>Sản Phẩm Liên Quan operational life ≤ 87600 h Thẻ sản phẩm IFM (468) , Fail-safe sensor (14)
