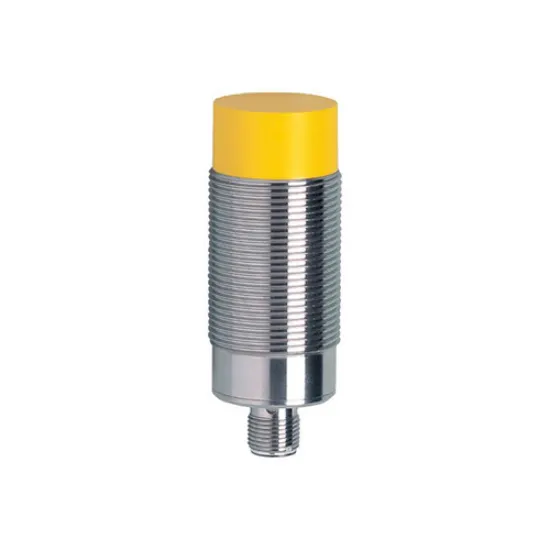

| Product characteristics |
|---|
| Electrical design | PNP |
| Output function | 2 x OSSD (A1 and A2) |
| Enable zone [mm] | 6…12 |
| Housing | threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 80 |
| Application |
|---|
| Special feature | Gold-plated contacts |
| Type of operation | continuous operation (maintenance-free) |
| Application | industrial application |
| Electrical data |
|---|
| Operating voltage [V] | 19.2…30 DC |
| Rated insulation voltage [V] | 30 |
| Current consumption [mA] | < 30 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 5000 |
| Outputs |
|---|
| Electrical design | PNP |
| Output function | 2 x OSSD (A1 and A2) |
| Max. voltage drop switching output DC [V] | 2.5; (100 mA) |
| Permanent current rating of switching output DC [mA] | 100 |
| Output data | Interface type C class 0 |
| Output voltage at 24 V | compatible with EN 61131-2 inputs type 1, 2, 3 |
| Short-circuit protection | yes |
| Max. capacitive load CL_max [nF] | 20 |
| Detection zone |
|---|
| Enable zone [mm] | 6…12 |
| Safe switching-off distance s(ar) [mm] | 30 |
| Response times |
|---|
| Response time to safety request [ms] | 50 |
| Response time when approaching the enable zone [ms] | 200 |
| Risk time (response time for safety-related faults) [ms] | 100 |
| Operating conditions |
|---|
| Applications | class C to EN 60654-1 weatherproof application |
| Ambient temperature [°C] | -25…70 |
| Note on ambient temperature | | operational life ≤ 87600 h |
|
| Ambient temperature [°C] | 10…40 |
| Note on ambient temperature | | operational life ≤ 175200 h |
|
| Rate of temperature change [K/min] | 0.5 |
| Max. relative air humidity [%] | briefly: 5…95 %; permanent: 5…70 % |
| Air pressure [kPa] | 80…106 |
| Max. height above sea level [m] | 2000 |
| Ionising radiation | not permissible |
| Salt spray | no |
| Protection | IP 68; IP 69K |
| Safety classification |
|---|
| ISO 13849-1 | category 3, PL e |
| IEC 61508 | SIL 3 |
| IEC 62061 | SIL cl 3 |
| Mission time TM [h] | ≤ 175200 |
| Mission time TM (additional indication) | |
| Safety-related reliability PFHD [1/h] | 1E-08 |
| Mechanical data |
|---|
| Weight [g] | 259.5 |
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions [mm] | M30 x 1.5 / L = 80 |
| Thread designation | M30 x 1.5 |
| Materials | stainless steel (1.4404 / 316L); PBT |
| Displays / operating elements |
|---|
| Display | | operation | 1 x LED, green | | signal | 1 x LED, yellow |
|
| Accessories |
|---|
| Accessories (supplied) | |
| Remarks |
|---|
| Remarks | | Unless stated otherwise, all data refer to the reference target plate to IEC 60947-5-2 over the whole temperature range. | | (FE360 = ST37K) 45x45x1 mm |
|
| Pack quantity | 1 pcs. |
| Electrical connection – plug |
|---|
| Connection | Connector: 1 x M12; Contacts: gold-plated |
