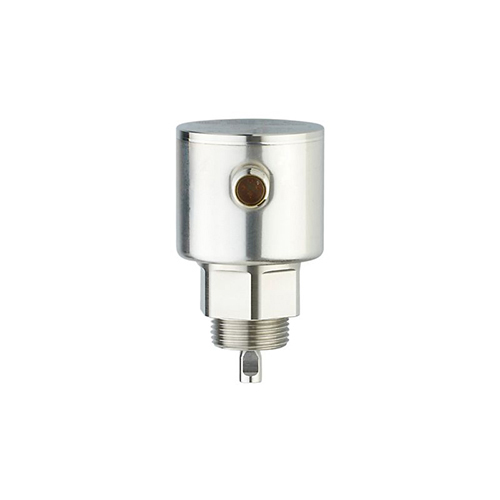

Ảnh của Cảm biến mức IFM LX0024

Cảm biến mức IFM LX0024

Cảm biến mức IFM LX0024
SKU: LX0024
Hãng sản xuất: IFM
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Mua Ngay : Zalo

nhà chế tạo: IFM
SKU: LX0024
Ngày giao hàng: 1-3 days
1.000 ₫
Giao đến
*
*
Phương pháp vận chuyển
Tên
Ngày dự kiến giao hàng
Giá bán
Không có tùy chọn giao hàng nào

Cảm biến mức IFM LX0024


Thông Tin Chi Tiết Sản Phẩm


Product characteristics
Number of inputs and outputs Number of digital outputs: 1; Number of analogue outputs: 1
Factory setting hydrous media; probe length L = 300 mm
Probe length L [mm] 100…1600
Process connection G 3/4 external thread
Application
Special feature Gold-plated contacts
Media Liquids
Dielectric constant of the medium ≥ 1,8; (for media with a dielectric constant of 1.8…5 (e.g. oils), a coaxial pipe is needed for operation)
Recommended media water; hydrous media; oils; oil-based media
Cannot be used for See the operating instructions, chapter “Function and features”.
Medium temperature [°C] -25…80; (90 < 1 h)
Tank pressure [bar] -1…16
Electrical data
Operating voltage [V] 18…30 DC
Current consumption [mA] < 25
Protection class III
Reverse polarity protection yes
Power-on delay time [s] < 3
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 1; Number of analogue outputs: 1
Outputs
Total number of outputs 2
Output signal analogue signal; IO-Link
Electrical design PNP
Number of digital outputs 1
Number of analogue outputs 1
Analogue current output [mA] 4…20, invertible
Max. load [Ω] 500
Analogue voltage output [V] 0…10, invertible
Min. load resistance [Ω] 2000
Short-circuit protection yes
Type of short-circuit protection thermal, pulsed
Overload protection yes
Measuring/setting range
Factory setting hydrous media; probe length L = 300 mm
Probe length L [mm] 100…1600
Active range A [mm] L-40; (when set to oil and oil based media: L-60)
Inactive range I1 / I2 [mm] 30 / 10; (when set to oil and oil based media: 30 / 30)
Sampling rate [Hz] 4
Accuracy / deviations
Repeatability [mm] ± 5
Measuring error [mm] ± 7
Offset error [mm] 5
Resolution [mm] 1
Zero signal (voltage) [V] 0
Zero signal (current) [mA] 4
Full signal (voltage) [V] 10
Full signal (current) [mA] 20
Temperature drift per 10 K ± 0.2 %
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9 CDV
Profiles no profile
SIO mode no
Required master port type A
Process data analogue 1
Min. process cycle time [ms] 2.3
Supported DeviceIDs
Type of operation DeviceID
Default 684
Operating conditions
Ambient temperature [°C] -25…60
Storage temperature [°C] -40…85
Protection IP 68; IP 69K; (7 days / 1 m water depth / 0.1 bar: IP 68)
Mechanical data
Weight [g] 430
Materials stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); FKM; PEI
Materials (wetted parts) stainless steel (1.4305 / 303); probe connection: stainless steel (1.4435 / 316L); PTFE; FKM; Sealing: NBR reinforced fibre
Process connection G 3/4 external thread
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; Contacts: gold-plated
>
