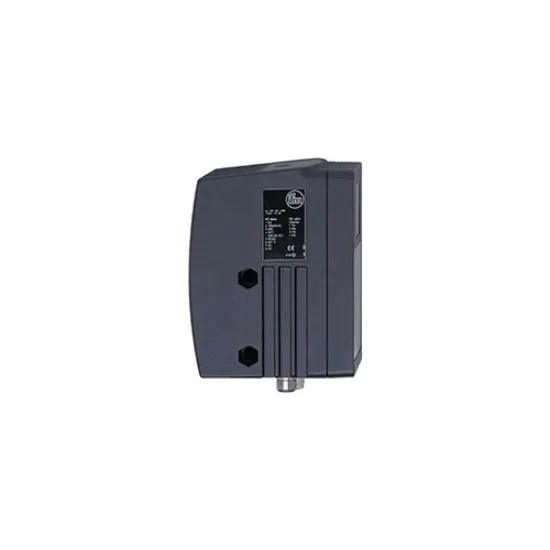

Ảnh của Cảm biến hình ảnh 3D IFM O3D223

Cảm biến hình ảnh 3D IFM O3D223

Cảm biến hình ảnh 3D IFM O3D223
SKU: O3D223
Hãng sản xuất: IFM
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Mua Ngay : Zalo

nhà chế tạo: IFM
SKU: O3D223
Ngày giao hàng: 1-3 days
1.000 ₫
Giao đến
*
*
Phương pháp vận chuyển
Tên
Ngày dự kiến giao hàng
Giá bán
Không có tùy chọn giao hàng nào

Cảm biến hình ảnh 3D IFM O3D223


Thông Tin Chi Tiết Sản Phẩm


Product characteristics
Image resolution 3D [px] 64 x 48
Angle of aperture 3D [°] 64 x 48
Max. reading rate [Hz] 20
Communication interface Ethernet
Dimensions [mm] 123.5 x 75 x 95
Application
Application output of 3D image data
Electrical data
Operating voltage [V] 20.4…28.8 DC; (EN 61131-2)
Current consumption [mA] < 2000; (peak current pulsed; typical value: 600)
Power consumption [W] 15
Protection class III
Image sensor PMD 3D ToF-Chip
Internal lighting yes; (infrared: 850 nm invisible radiation LED class 1)
Inputs / outputs
Number of inputs and outputs Number of digital inputs: 2; Number of digital outputs: 2
Inputs
Number of digital inputs 2
Trigger 24 V PNP (IEC 61131-2 Typ 1)
Input circuit of digital inputs 24 V PNP; (configurable; IEC 61131-2 Typ 1)
Outputs
Total number of outputs 2
Number of digital outputs 2; (configurable)
Output function 24 V PNP; (EN 61131-2 Typ 2)
Max. voltage drop switching output DC [V] 1
Max. current load per output [mA] 100
Analogue current output [mA] 4…20
Max. load [Ω] 300
Analogue voltage output [V] 0…10
Min. load resistance [Ω] 10000
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Operating distance [mm] 200…5500
Note on operating distance
white paper: 200 x 200 mm
reflectivity: 90 %
Image resolution 3D [px] 64 x 48
Angle of aperture 3D [°] 64 x 48
Max. reading rate [Hz] 20
Software / programming
Parameter setting options via two pushbuttons and 10-segment display or via PC / notebook with operating software
Interfaces
Communication interface Ethernet
Ethernet
Number of Ethernet interfaces 1
Transmission standard 10Base-T; 100Base-TX
Transmission rate 10; 100
Protocol TCP/IP; EtherNet/IP
Factory settings
IP address: 192.168.0.69
subnet mask: 255.255.255.0
gateway IP address: 192.168.0.201
MAC address: see type label
Operating conditions
Ambient temperature [°C] -10…50
Storage temperature [°C] -40…85
Protection IP 67
Max. immunity to extraneous light [klx] 8; (on the object)
Mechanical data
Weight [K40] 1197.5
Dimensions [mm] 123.5 x 75 x 95
Materials housing: diecast aluminium; front lens: PMMA; display window: PC
Displays / operating elements
Display
switching status 4 x LED, yellow
4 x LED, green
10-segment display, 4-digit
Accessories
Accessories (supplied)
Protective covers
Remarks
Notes For 8-pole sockets the core colours are not standardised.; Please note the wiring of the sensor and the sockets (see data sheet).
Pack quantity 1 pcs.
Electrical connection – Ethernet
Connector: 1 x M12
Electrical connection – Process connection
Connector: 1 x M12
Other data
Field of view size
measuring range / distance Length Width minimum object surface
200 250 170 7 x 7
1000 1260 870 37 x 37
2000 2520 1740 73 x 73
3000 3780 2610 109 x 109
4000 5040 3480 145 x 145
5500 6930 4790 200 x 200
For reliable detection the object must be detected by at least 2 x 2 pixels
>
