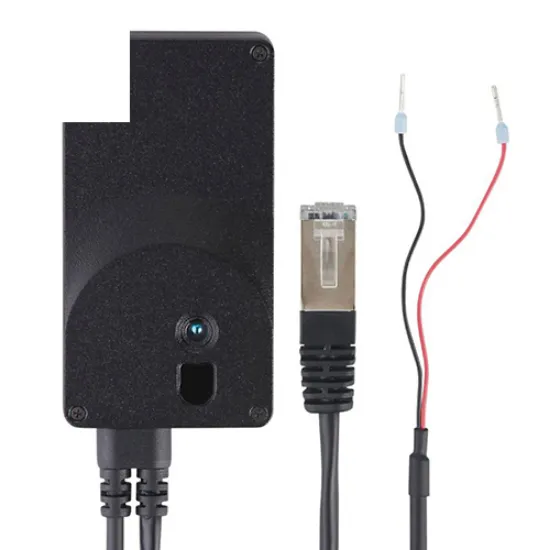

Cảm biến hình ảnh 3D IFM O3X100 Cảm biến hình ảnh 3D IFM O3X100 SKU: O3X100 Hãng sản xuất: IFM Chất lượng: Mới 100% Bảo hành: Chính hãng Chứng từ: CO/CQ, hóa đơn VAT Mua Ngay : nhà chế tạo: IFM SKU: O3X100 Ngày giao hàng: 1-3 days 1.000 ₫ Số lượng: Thêm vào giỏ hàng Giao đến Chọn quốc gia Vietnam Vietnam * Khác * Phương pháp vận chuyển Tên Ngày dự kiến giao hàng Giá bán Không có tùy chọn giao hàng nào Áp dụng Custom wishlist được Thêm vào danh sách yêu thích Thêm vào danh sách so sánh Cảm biến hình ảnh 3D IFM O3X100Thông Tin Chi Tiết Sản Phẩm Product characteristics Type of light infrared light Image resolution 3D [px] 224 x 172 Angle of aperture 3D [°] 60 x 45 Max. reading rate [Hz] 20 Communication interface Ethernet Laser protection class 1 Dimensions [mm] 80 x 43.5 x 21 Application Application output of 3D image data Electrical data Operating voltage [V] 20.4…28.8 DC; (EN 61131-2) Current consumption [mA] < 500; (peak current pulsed; typical value: 160) Power consumption [W] 3.7 Protection class III Type of light infrared light Wave length [nm] 850 Image sensor PMD 3D ToF-Chip Internal lighting yes; (infrared: 850 nm invisible radiation LED) Detection zone Operating distance [mm] 50…3000 Note on operating distance object size: 200 x 200 mm reflectivity: 18 % Image resolution 3D [px] 224 x 172 Angle of aperture 3D [°] 60 x 45 Max. reading rate [Hz] 20 Measuring/setting range Measuring range [m] < 30; (depending on settings, object size, and reflectivity) Software / programming Parameter setting options via PC with ifm Vision Assistant or XML-RPC Interfaces Communication interface Ethernet Usage type parameter setting; data transmission Ethernet Number of Ethernet interfaces 1 Transmission standard 10Base-T; 100Base-TX Transmission rate 10; 100 Protocol TCP/IP Factory settings IP address: 192.168.0.69 subnet mask: 255.255.255.0 gateway IP address: 192.168.0.201 Operating conditions Ambient temperature [°C] -10…40 Note on ambient temperature Housing: < 45° C see operating instructions Storage temperature [°C] -40…85 Protection IP 50 Max. immunity to extraneous light [klx] 8 Mechanical data Weight [g] 266.5 Dimensions [mm] 80 x 43.5 x 21 Materials housing: diecast zinc; front lens: PMMA Remarks Pack quantity 1 pcs. Electrical connection Connection Cable: 1 m, PVC Connection Connector: 1 x RJ45 Other data Field of view size without lens distortion correction measuring range / distance [m] Length [m] Width [m] 0.50 0.60 0.40 1.00 1.10 0.80 1.50 1.70 1.30 2.00 2.30 1.70 2.50 2.80 2.10 3.00 3.40 2.50 Repeatability measuring range / distance [m] Exposure time [µs] Repeatability Accuracy [mm] Measured distance values (1 Sigma) on grey objects reflectivity 18 % [mm] 0.1…0.25 200 ± 5 ± 5 0.25…0.5 400 ± 5 ± 5 0.5…1 1000 ± 7 ± 10 1…2 2000 ± 15 ± 20 2…3 2000 ± 60 ± 40 Repeatability referred to distance measurement of an individual pixel Measured at centre of image with median filter Ambient temperature 20° C Temperature drift -10…+40° C [mm/K] 0.2 Relative accuracy typical ± 4 measured at a reflectivity of 18% to 90%>Sản Phẩm Liên Quan object size: 200 x 200 mm reflectivity: 18 % Thẻ sản phẩm Cảm biến hình ảnh (269) , IFM (468)
