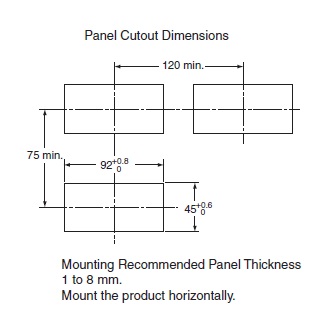

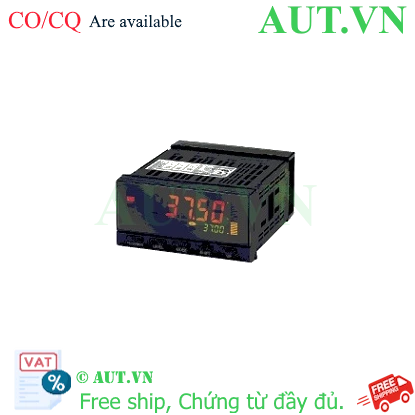

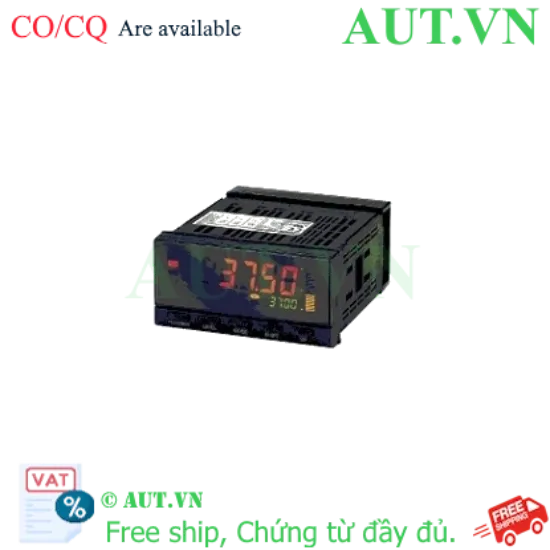

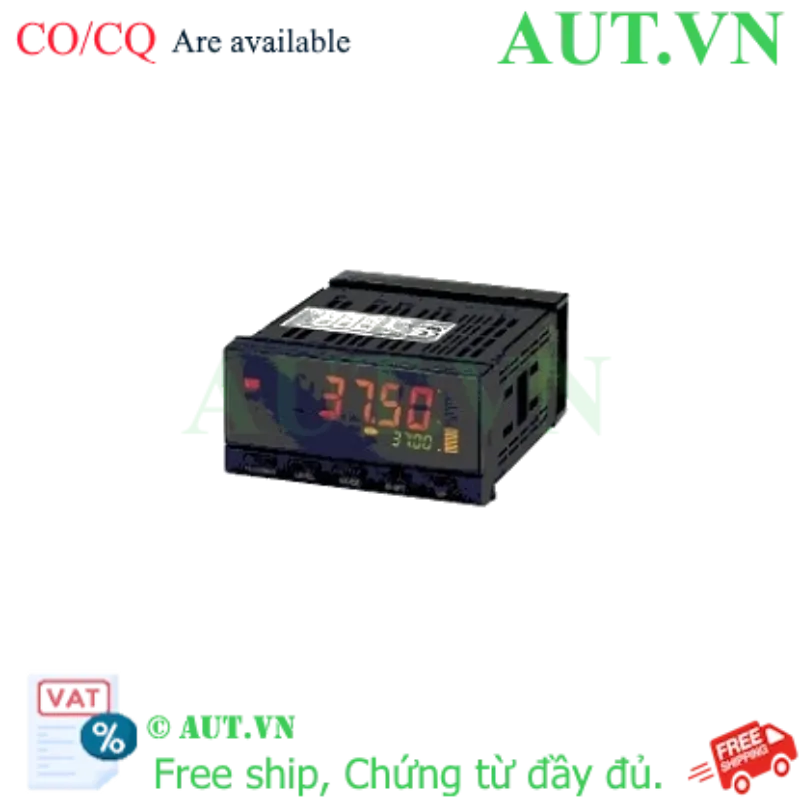

| Power supply voltage | 100 to 240 VAC 50/60 Hz |
|---|
| Allowable power supply voltage range | 85 to 110% of the power supply voltage |
|---|
| Power consumption | 18 VA max. (at maximum load) |
|---|
| External power supply | 12 VDC ±10% 80 mA |
|---|
| Input type | DC voltage/DC current |
|---|
| Output type | Judgment output: TransistorComparative output: HH, H, PASS, L, LL |
|---|
| Current measurement input | Measurement range | 0-20: 0.000 to 20.000 mA4-20: 4.000 to 20.000 mA |
|---|
| Indication range | 0-20: -2.000 to 22.000 mA4-20: 2.000 to 22.000 mA |
|---|
| Accuracy | One input: ±0.1% FS ±1 digit max.Two inputs: ±0.2% FS ±1 digit max. |
|---|
| Input impedance | 120 Ω max. |
|---|
| Max. permissible input | ±31 mA |
|---|
| Voltage measurement input | Measurement range | 0-5: 0.000 to 5.000 V1-5: 1.000 to 5.000 V5: ±5.000 V10: ±10.000 V |
|---|
| Indication range | 0-5: -0.500 to 5.500 V1-5: 0.500 to 5.500 V5: ±5.500 V10: ±11.000 V |
|---|
| Accuracy | One input: ±0.1% FS ±1 digit max.Two inputs: ±0.2% FS ±1 digit max. |
|---|
| Input impedance | 1 MΩ min. |
|---|
| Max. permissible input | ±10 V (±14.5 V at ±10 V) |
|---|
| Event input | Number of input | 8 point |
|---|
| Input method | NO-Voltage contact/NPN open collector |
|---|
| Event name | Timing inputStartup compensation timer inputHold inputForced-zero inputReset inputBank input |
|---|
| Connection method | Connector |
|---|
| Contact | ON: 1 kΩ max.OFF: 100 kΩ min. |
|---|
| No-contact | ON residual voltage: 2 V max. (TIMING input 3 V max.)OFF leakage current: 4 mA max. (TIMING input 17 mA max.)Maximum applied voltage: 30 V max.DCLeakage current: 0.1 mA max. (TIMING input 1.5 mA max.) |
|---|
| Judgment output | Transistor output | NPN open collectorMaximum load voltage: 24 V max.DCMaximum load current: 50 mA max.Leakage current: 100 µA max. |
|---|
| Display | Display method | Negative LCD (backlit LED) 7-segment digital display |
|---|
| Digits | 5 digit (-19999 to 99999) |
|---|

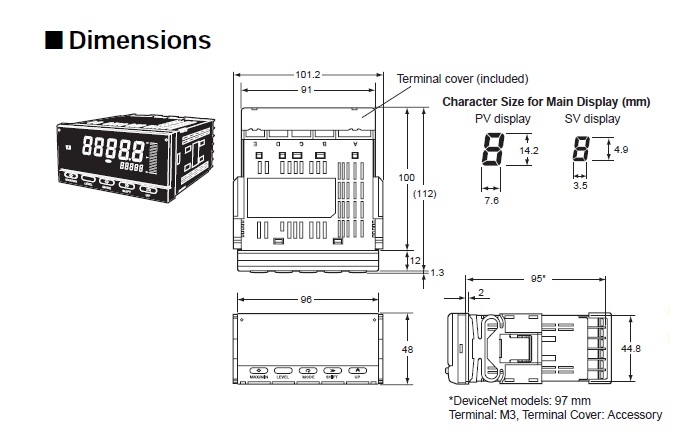

| Character height | PV: 14.2 mm (green/red)SV: 4.9 mm (green) |
|---|
| A/D conversion method | Sequential comparison system |
|---|
| Sampling period | One input: 0.5 msTwo inputs: 1.0 ms |
|---|
| Comparative output response time | One input (OFF→ON): 1.0 ms max.One input (ON→OFF): 1.5 ms max.Two inputs (OFF→ON): 2.0 ms max.Two inputs (ON→OFF): 2.5 ms max. (time until the comparative output is made when there is a forced sudden change in the input signal from 15% to 95% or 95% to 15%.) |
|---|
| Insulation resistance | 20 MΩ min. (at 500 VDC) |
|---|
| Dielectric strength | Between the entire external terminal and case: 2,300 VAC 1 min |
|---|
| Noise immunity | ±1,500 V at power supply terminals in normal or common mode (waveform with 1-ns rising edge and pulse width of 1 µs/100 ns) |
|---|
| Vibration resistance | Malfunction: 10 to 55 Hz, Acceleration: 50 m/s2, 5 min 10 sweeps each in X, Y, and Z directions |
|---|
| Shock resistance | Malfunction: 150 m/s2, 3 times each in 3 axes 6 directions |
|---|
| Degree of protection | Front: NEMA4X for indoor use (equivalent to IP66)Case rear: IP20Terminals: IP00 + finger protection (VDE0106/100) |
|---|
| Memory protection | EE-PROM (non-volatile memory) Number of rewrites: 100,000 |
|---|
| Ambient temperature | Operating: -10 to 55 ℃ (with no freezing or condensation)Storage: -25 to 65 ℃ (with no freezing or condensation) |
|---|
| Ambient humidity | Operating: 25 to 85 % |
|---|
| Accessories | Waterproof packing, Fixtures, Terminal Cover, Unit label, Instruction manual |
|---|
| Weight | Approx. 300 g |
|---|
