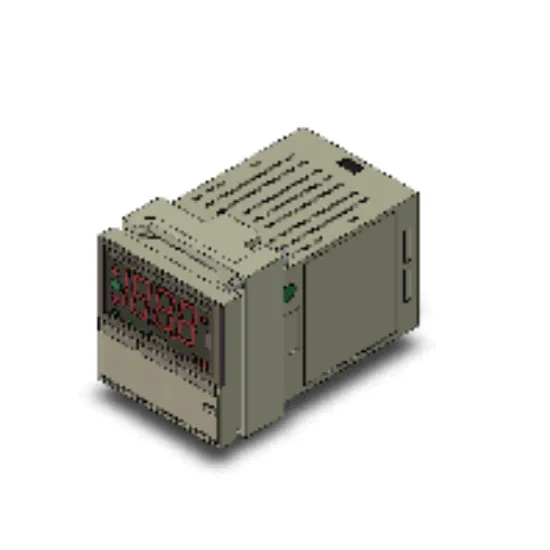

| Shape | DIN48 x 48 |
|---|
| Fixed/Programmable | Fixed |
|---|
| Power supply voltage | 100 to 240 VAC (50/60 Hz) |
|---|
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
|---|
| Power consumption | 5 VA |
|---|
| Input | Number of input points | 1 point |
|---|
| Temperature input | Thermocouple: K, J, T, L, U, N, RPlatinum resistance thermometer: Pt100, JPt100 |
|---|
| Control method | ON/OFF or 2-PID control with auto-tuning |
|---|
| Control output | Number of total control output | 1 point |
|---|
| Control output 1 | Voltage output (for driving SSR) |
|---|
| Control output 2 | None |
|---|
| Voltage output (for driving SSR) | 1 point12 VDC 21 mA, with short-circuit protection circuit |
|---|
| Alarm output | 1 point1 A at 250 VAC (resistive load) |
|---|
| Setting method | Digital setting using front panel keys |
|---|
| Indication method | 7-segment digital display and deviation indicators |
|---|
| Sampling period | 500 ms |
|---|
| Hysteresis | 0.1% FS (for ON/OFF control) |
|---|
| Proportional band | 1 to 999 ℃ (automatic adjustment using auto-tuning/self-tuning) |
|---|
| Integral time | 1 to 1999 s (automatic adjustment using auto-tuning/self-tuning) |
|---|
| Derivative time | 1 to 1999 s (automatic adjustment using auto-tuning/self-tuning) |
|---|
| Control period | 2 s or 20 s (switchable) |
|---|
| Insulation resistance | 20 MΩ min. (500 VDC megger) |
|---|
| Dielectric strength | 2,000 VAC 50/60 Hz 1 min (Between current-carrying terminals of different polarity) |
|---|
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm for 2 h each in X, Y, and Z directionsMalfunction: 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions |
|---|
| Shock resistance | Destruction: 300 m/s2, 3 times each in 6 directionsMalfunction: 100 m/s2, 3 times each in 6 directions |
|---|
| Ambient temperature (Operating) | -10 to 55 ℃ (with no freezing or condensation)For 3-year warranty: -10 to 50 ℃ |
|---|
| Ambient temperature (Storage) | -25 to 65 ℃ (with no freezing or condensation) |
|---|
| Ambient humidity (Operating) | 25 to 85 % |
|---|
| Degree of protection | Front panel: IP50, Rear case: IP20, Terminal section: IP00 |
|---|
| Memory protection | Non-volatile memory (number of writes: 1,000,000) |
|---|
| Case color | Light gray |
|---|
| Terminal type | Plug-in |
|---|
| Accessories | Adapter for Flush Mounting |
|---|
| Weight | Approx. 110 g |
|---|
| Sold separately | Front-connecting Socket (11 Pins): P2CF-11Front-connecting Socket with Finger Protection (11 Pins): P2CF-11-EBack Connecting Socket (11 Pins): P3GA-11Hard Front Cover: Y92A-48BProtective Cover for finger protection: Y92A-48G |
|---|
