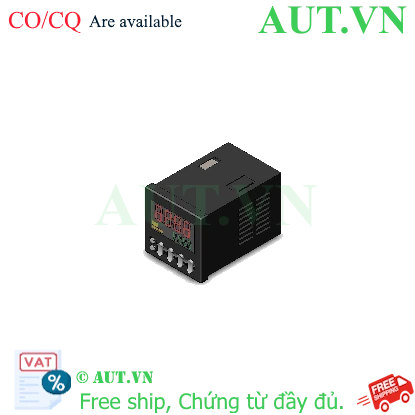

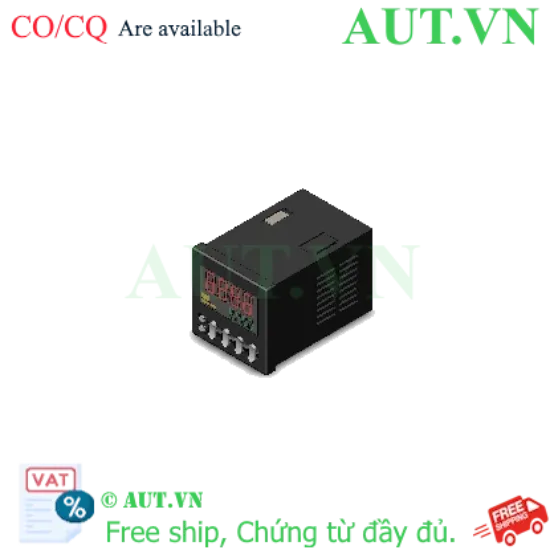

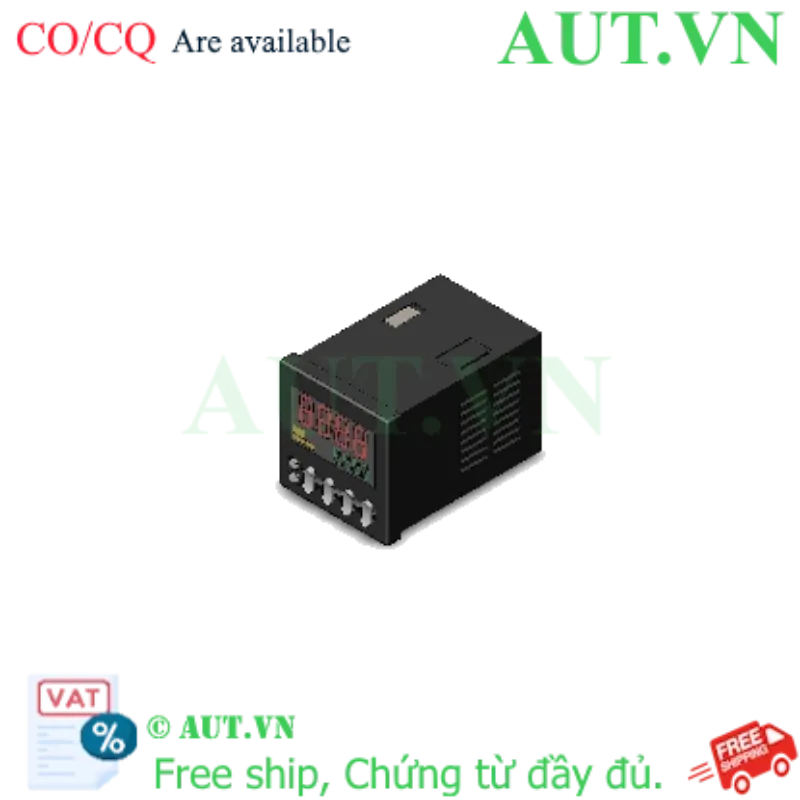

Rated supply voltage | 100 to 240 VAC (50/60 Hz) |
---|
Operating voltage range | 85 to 110% of rated supply voltage |
---|
Power consumption | Approx. 6.2 VA |
---|
Time ranges(Number of ranges) | 10 |
---|
Time ranges | 0.001 to 9.999 s0.01 to 99.99 s0.1 to 999.9 s1 to 9999 s0.1 to 999.9 min1 to 9999 min0.1 to 999.9 h1 to 9999 h1 s to 99 min 59 s1 min to 99 h 59 min |
---|
Input method | No-voltage (NPN)/Voltage (PNP) input (selectable) |
---|
No-voltage input | Solid state input | Short-circuit (ON) impedance: 1 kΩ max. (Leakage current (0 Ω): Approx. 12 mA)Short-circuit (ON) residual voltage: 3 V max.Open circuit impedance: 100 kΩ min.(The DC voltage must be 30 VDC max.) |
---|
Contact input | Use contact which can adequately switch 5 mA at 10 V |
---|
Applicable two-wire sensor | Leakage current: 1.5 mA max.Switching capacities: 5 mA min.Residual voltage: 3.0 VDC max.Operating voltage: 10 VDC |
---|
Voltage input | High level: 4.5 to 30 VDCLow level: 0 to 2 VDC (Input resistance 4.7 kΩ) |
---|
Output modes | A: Signal ON delay (Ⅰ)A-1:Signal ON delay (Ⅱ)A-2: Power ON delay (Ⅰ)A-3: Power ON delay (Ⅱ)b: Repeat cycle (Ⅰ)b-1: Repeat cycle (Ⅱ)d: Signal OFF delayE: IntervalF: CumulativeZ: ON/OFF-duty adjustable flickerS: Stopwatchtoff: Flicker OFF start (Ⅰ)ton: Flicker ON start (Ⅰ)toff-1: Flicker OFF start (Ⅱ)ton-1: Flicker ON start (Ⅱ) |
---|
Control output (Solid state output) | 1 point (Transistor output)Mode: NPN open collector (SPST-NO)Switching capacities: 30 VDC max., 100 mA max.Residual voltage: 1.5 V max. (Capacity value: Approx. 1 V)Leakage current: 0.1 mA max. |
---|
Reset system | Power reset (depending on output mode)/Automatic reset (depending on output mode)/External reset/Manual reset |
---|
Power reset | Minimum power-opening time: 0.5 s (except for A-3, b1, F, ton-1 and toff-1 mode) |
---|
Timer mode | Elapsed time (UP) and remaining time (DOWN) (selectable) |
---|
Display method | 7-segment negative transmissive LCD 4 digit |
---|
Character height | Present value: 12 mm (Red)Set value: 6 mm (green) |
---|
Key protect method | Key protect Switch |
---|
Memory backup method | EEP-ROM (number of writes: 100,000 min., that can store data for 10 years min.) |
---|
Ambient temperature (Operating) | -10 to 55 ℃ (with no freezing or condensation)When mount timer side by side: -10 to 50 ℃ (with no freezing or condensation) |
---|
Ambient temperature (Storage) | -25 to 70 ℃ (with no freezing or condensation) |
---|
Ambient humidity (Operating) | 25 to 85 % |
---|
Accuracy of operating time | Power-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.)Signal start: ±0.005% ±3 ms max. (The values are based on the set value. The value is applied for a minimum pulse width of 1 ms.) |
---|
Setting error | Power-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.)Signal start: ±0.005% ±3 ms max. (The values are based on the set value. The value is applied for a minimum pulse width of 1 ms.) |
---|
Influence of voltage | Power-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.)Signal start: ±0.005% ±3 ms max. (The values are based on the set value. The value is applied for a minimum pulse width of 1 ms.) |
---|
Influence of temperature | Power-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.)Signal start: ±0.005% ±3 ms max. (The values are based on the set value. The value is applied for a minimum pulse width of 1 ms.) |
---|
Insulation resistance | Between current carrying terminals and exposed non-current carrying metal parts: 100 MΩ min. (at 500 VDC)Between non-continuous contacts: 100 MΩ min. (at 500 VDC) |
---|
Dielectric strength | Between current carrying metal parts and non-current carrying metal parts: 2000 VAC 50/60 Hz 1 minBetween operating power circuit and input circuit: 2000 VAC 50/60 Hz 1 minBetween control output, and power supply/input circuit: 2000 VAC 50/60 Hz 1 minBetween non-continuous contacts: 1000 VAC 50/60 Hz 1 min |
---|
Impulse withstand voltage | Between power terminals: 5 kVBetween current carrying terminals and exposed non-current carrying metal parts: 5 kV |
---|
Noise immunity | Between power terminals: ±1.5 kVBetween input terminals: ±600 kVsquare-wave noise by noise simulator, pulse width: 100 ns/1 µs, 1-ns rise |
---|
Static immunity | Mulfunction: 8 kV, Destruction: 15 kV |
---|
Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 hMalfunction: 10 to 55 Hz 0.35 mm single amplitude each in 3 directions for 10 min |
---|
Shock resistance | Destruction: 300 m/s2, 3 times each in 3 axes each directionsMalfunction: 100 m/s2, 3 times each in 6 directions |
---|
Degree of protection | Only panel surface: IEC IP66, UL508 Type 4X (indoors) (when using the Y92S-29 Waterproof Packing and Y92F-30 Flush Mounting Adapter) |
---|

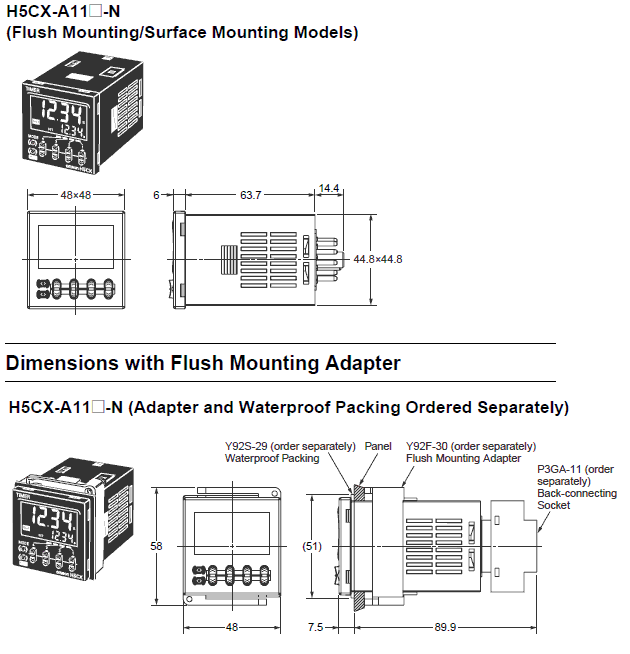

Mounting method | Flush mounting / Surface mounting |
---|

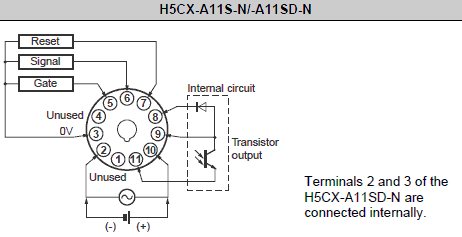

External connection method | 11-pin round socket |
---|
Case color | Black (Munsell N1.5) |
---|
Attachment | Label for DIP switch settings |
---|
Applicable socket | P2CF-11, P2CF-11-E, P3GA-11 |
---|
Accessory (sold separately) | Soft Cover: Y92A-48F1Hard Cover: Y92A-48Flush mounting adapter: Y92F-30/Y92F-45/Y92F-38Waterproof packing: Y92S-29Replacement Front Panel: Y92P-CXT4S/Y92P-CXT4G/Y92P-CXT4B |
---|
Weight | Main Unit: Approx. 115 g |
---|
