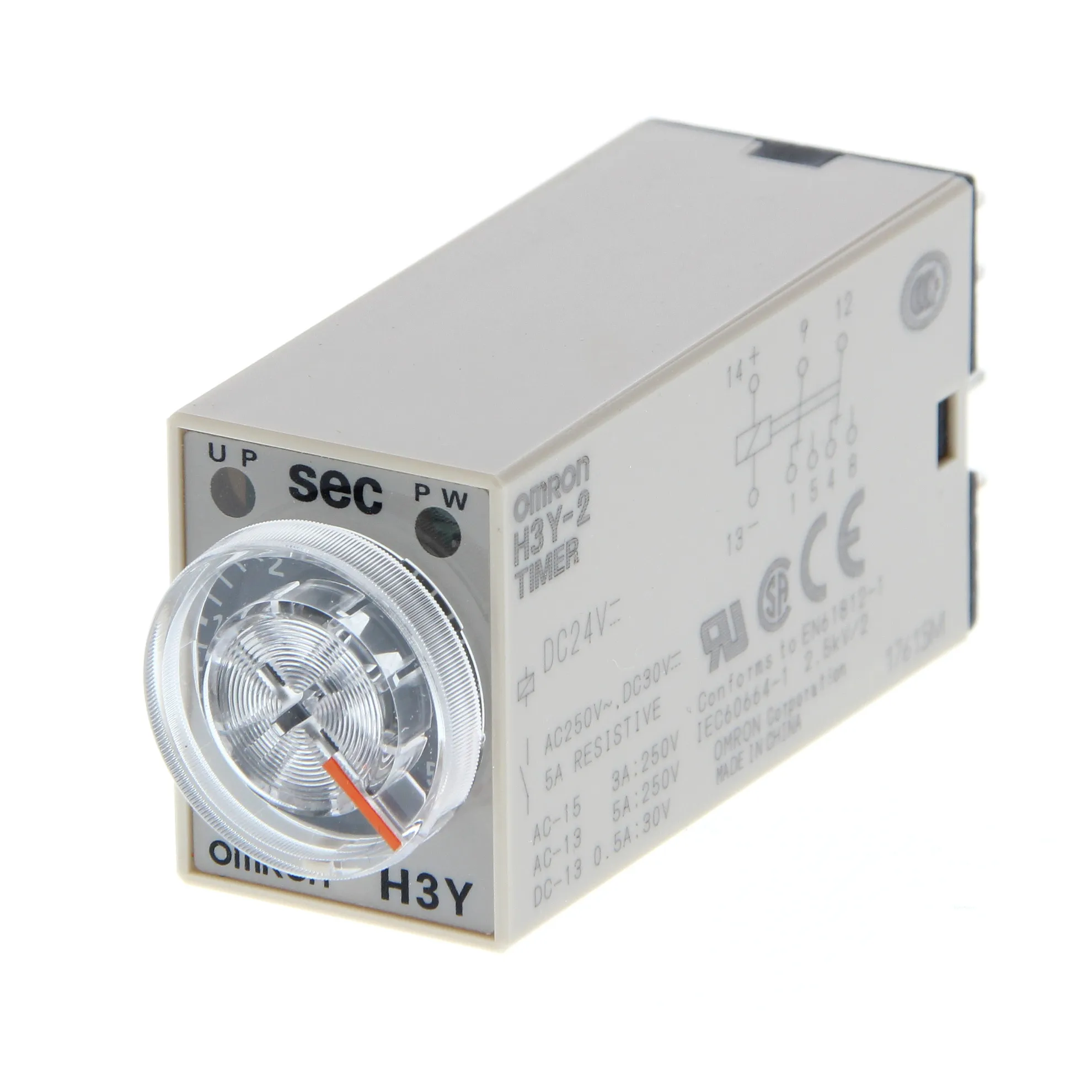

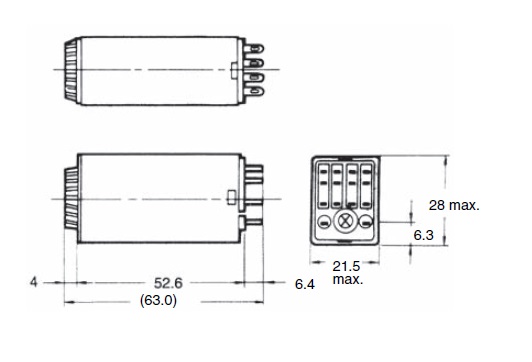

| Model | H3Y-4 DC100-110 60S |
|---|
| Rated power supply voltage | 100 to 110 VDC If power supply incorporates a single-phase full-wave rectifier. |
|---|
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
|---|
| Power consumption | Approx. 1.3 W (at 110 VDC) |
|---|
| Reset voltage | 10% min, of rated supply voltage |
|---|
| Number of time ranges | 1 |
|---|
| Operation mode | Power ON-delay |
|---|

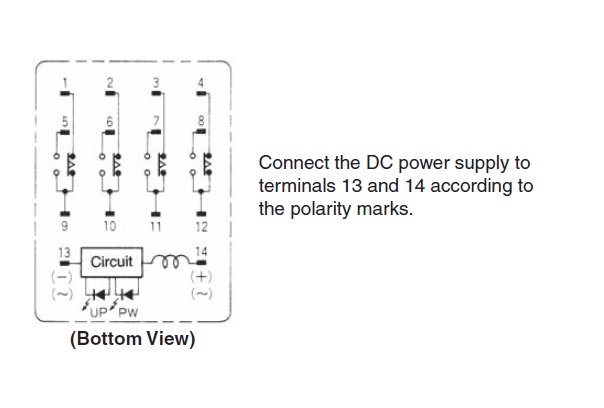

| Control output (Type) | Time-limit: 4PDT |
|---|
| Control output (Contact output) | Resistive load: 3 A at 250 VAC (cosφ=1)Minimum applicable load: 1 mA at 1 VDC (failure level: P) |
|---|
| Operating resetting | Time-limit operation/Self-reset |
|---|
| Ambient temperature range | Operating: -10 to 50 ℃ (with no icing)Storage: -25 to 65 ℃ (with no icing) |
|---|
| Ambient humidity range | Operating: 35 to 85 % |
|---|
| Accuracy of operating time | ±1% FS max. |
|---|
| Setting error | ±10% FS ±50 ms max. |
|---|
| Reset time | 0.1 s max. (including halfway reset) |
|---|
| Influence of voltage | ±2% FS max. |
|---|
| Influence of temperature | ±2% FS max. |
|---|
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
|---|
| Dielectric strength | Between current carrying terminals and exposed non-current carrying metal parts: 2000 VAC 50/60 Hz 1 min (Terminal screw sections are not excluded)Between operating power circuit and control output: 2,000 VAC 50/60 Hz 1 minBetween contacts of different polarity: 1,500 VAC 50/60 Hz 1 minBetween non-continuous contacts: 1,000 VAC 50/60 Hz 1 min |
|---|
| Impulse withstand voltage | Between power terminals: 3 kVBetween current carrying terminals and exposed non-current carrying metal parts: 4.5 kV |
|---|
| Noise immunity | ±1.5 kV square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise) |
|---|
| Static immunity | Mulfunction: 4 kV, Destruction: 8 kV |
|---|
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 1 hourMalfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min |
|---|
| Shock resistance | Destruction: 1,000 m/s2, 3 times each in 6 directionsMalfunction: 100 m/s2, 3 times each in 6 directions |
|---|
| Life expectancy (relay output) | Electrical: 200,000 operations min. (3 A at 250 VAC, resistive load at 1800 operations/h, Room temperature)Mechanical: 10 million operations min. (under no load at 1,800 operations/h) |
|---|
| Degree of protection | IP40 |
|---|
| Connecting method | 14-pin round socket |
|---|
| Case color | Beige |
|---|
| Weight | Approx. 50 g |
|---|
| Applicable socket | PYFZ-14/ PYFZ-14-E/ PY14/ PY14-02 |
|---|
