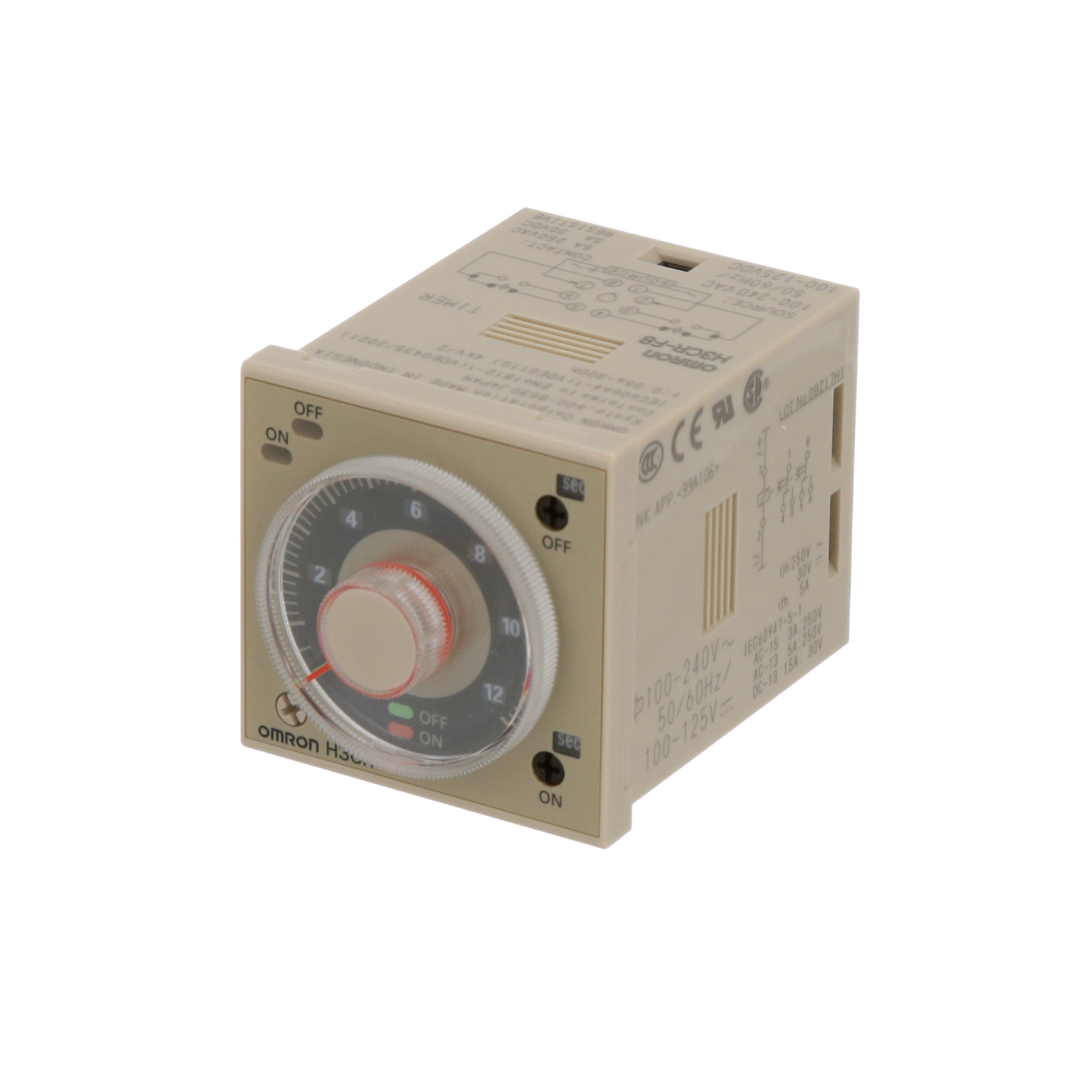

Timer Omron H3CR-F8 AC24-48/DC12-48

Name: Timer Omron H3CR-F8 AC24-48/DC12-48
SKU: H3CR-F8 AC24-48/DC12-48
Price: 670.00 VND
Availability: InStock

Timer  Omron H3CR-F8 AC24-48/DC12-48
Twin Timer
Flicker OFF start
8-pin
Time ranges 0.05 s to 300 h
24 to 48 VAC/12 to 48 VDC

Mua Ngay :

nhà chế tạo: Omron

SKU: H3CR-F8 AC24-48/DC12-48

Ngày giao hàng: 1-3 days

670 ₫

Số lượng:

Thông Tin Sản Phẩm: H3CR-F8 AC24-48/DC12-48

Thông Tin Kỹ Thuật cơ bản của : Timer Omron H3CR-F8N AC100-240/DC100-125

Rated power supply voltage	24 to 48 VAC 50/60 Hz 12 to 48 VDC Ripple 20% max. (If power supply incorporates a single-phase full-wave rectifier)
Control output (Type)	Time-limit: DPDT
Operating resetting	Time-limit operation/Time-limit reset or Self-reset
Connecting method	8-pin round socket

Thông số kỹ thuật chi tiết sản phẩm: Timer Omron H3CR-F8N AC100-240/DC100-125


Rated power supply voltage	24 to 48 VAC 50/60 Hz12 to 48 VDC Ripple 20% max. (If power supply incorporates a single-phase full-wave rectifier)
Allowable voltage variable range	85 to 110% of rated supply voltage (90 to 110% at 12 VDC)
Power consumption	Relay ON: Approx. 0.8 W (at 24 VDC)/Relay OFF: Approx. 0.2 W (at 24 VDC)
Reset voltage	10% max. of rated supply voltage
Number of time ranges	18
Operation mode	Flicker OFF start
Control output (Type)	Time-limit: DPDT
Control output (Contact output)	Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value)
Operating resetting	Time-limit operation/Time-limit reset or Self-reset
Ambient temperature range	Operating: -10 to 55 ℃ (with no icing)Storage: -25 to 65 ℃ (with no icing)
Ambient humidity range	Operating: 35 to 85 %
Accuracy of operating time	±0.2% FS max.±0.2% ±10 ms in a range of 1.2 s and 3 s
Setting error	±5% FS ±50 ms max.
Reset time	0.1 s max.
Influence of voltage	±0.2% FS max.±0.2% ±10 ms in a range of 1.2 s and 3 s
Influence of temperature	±1% FS max. (±1% ±10 ms in a range of 1.2 s and 3 s)
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	Between current carrying metal parts and non-current carrying metal parts: 2,000 VAC 50/60 Hz 1 minBetween control output terminals and operating circuit: 2,000 VAC 50/60 Hz 1 minBetween contacts of different polarity: 2,000 VAC 50/60 Hz 1 minBetween non-continuous contacts: 1,000 VAC 50/60 Hz 1 min
Impulse withstand voltage	Between power terminals: 1 kVBetween current carrying terminals and exposed non-current carrying metal parts: 1.5 kV
Noise immunity	±1.5 kV (between power terminals), square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise)
Static immunity	Mulfunction: 8 kV, Destruction: 15 kV
Vibration resistance	Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 hMalfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min
Shock resistance	Destruction: 980 m/s², 3 times each in 6 directionsMalfunction: 98 m/s², 3 times each in 6 directions
Life expectancy (relay output)	Electrical: 100,000 operations min. (5 A at 250 VAC, resistive load at 1800 operations/h)Mechanical: 20 million operations min. (under no load at 1,800 operations/h)
Degree of protection	IP40 (panel surface)
Connecting method	8-pin round socket
Weight	Approx. 100 g
Applicable socket	P2CF-08/ P2CF-08-E/ PF085A/ P3G-08/ PL08/ PL08-Q/ PLE08-0
