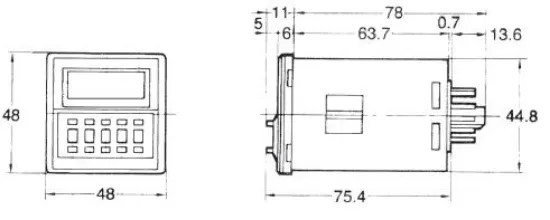

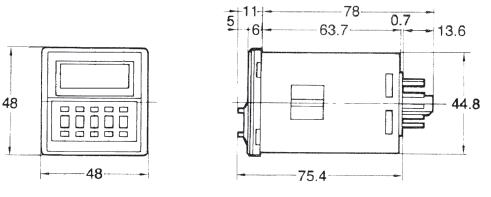

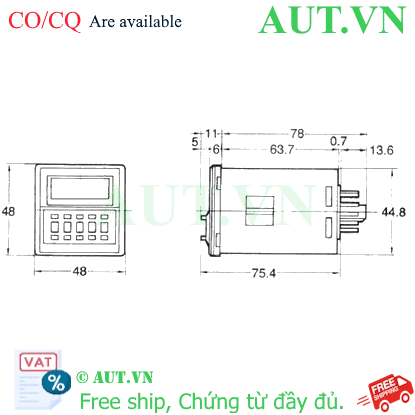

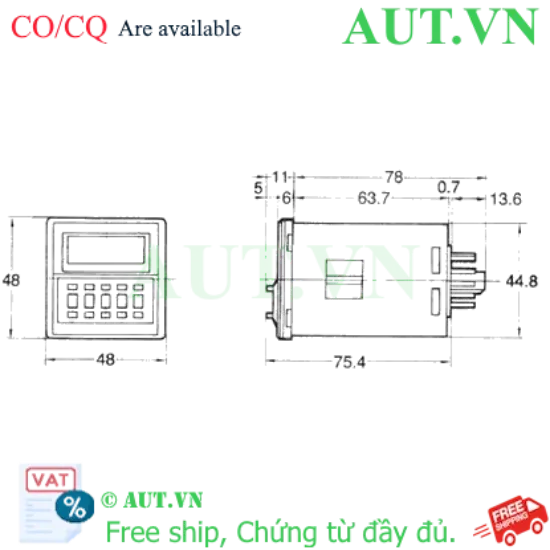

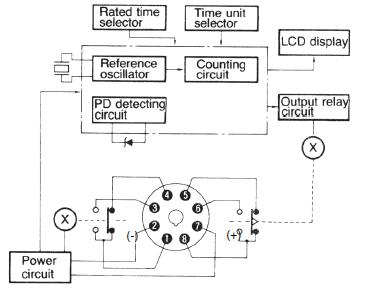

| Model | H3CA-8H DC110 |
|---|
| Rated supply voltage | 110 VDC (Ripple 20% max. (If power supply incorporates a single-phase full-wave rectifier)) |
|---|
| Operating voltage range | 85 to 110% of rated supply voltage |
|---|
| Power consumption | Approx. 2 W |
|---|
| Time ranges（Number of ranges） | 7 |
|---|
| Time ranges | 0.1 to 99.9 s1 to 999 s0.1 to 99.9 min1 to 999 min0.1 to 99.9 h1 to 999 h10 to 9990 h |
|---|
| Input method | No-voltage input (open and short-circuit) |
|---|
| Output modes | A: Power ON delay |
|---|
| Control output （Contact output） | Time-limit contact: SPDT, Instantaneous contact: SPDTResistive load: 3 A at 250 VACMinimum applicable load: 100 mA at 5 VDC (failure level: P Reference value) |
|---|
| Reset system | Self-reset |
|---|
| Power reset | Reset time: 0.1 s max. |
|---|
| Display method | LCD 3 digit |
|---|
| Ambient temperature (Operating) | -10 to 55 ℃ (with no icing) |
|---|
| Ambient humidity (Operating) | 35 to 85 % |
|---|
| Accuracy of operating time | ±0.3% ±0.05 s (The values are based on the set value.) |
|---|
| Setting error | ±0.5% ±0.05 s (The values are based on the set value.) |
|---|
| Influence of voltage | ±0.3% ±0.05 s (The values are based on the set value.) |
|---|
| Influence of temperature | ±0.3% ±0.05 s (The values are based on the set value.) |
|---|
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
|---|
| Dielectric strength | Between current carrying metal parts and non-current carrying metal parts: 2000 VAC 50/60 Hz 1 minBetween control output terminals and operating circuit: 2000 VAC 50/60 Hz 1 minBetween non-continuous contacts: 1000 VAC 50/60 Hz 1 min |
|---|
| Impulse withstand voltage | Between power terminals: 3 kVBetween current carrying terminals and exposed non-current carrying metal parts: 4.5 kV |
|---|
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 1 hourMalfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min |
|---|
| Shock resistance | Destruction: 1,000 m/s2, 3 times each in 6 directionsMalfunction: 100 m/s2, 3 times each in 6 directions |
|---|
| Life expectancy | Electrical: 100,000 operations min. (3 A at 250 VAC resistive load at 1800 operations/h)Mechanical: 10 million operations min. (under no load at 1,800 operations/h) |
|---|
| Degree of protection | IP40 |
|---|
| Mounting method | Flush mounting / Surface mounting |
|---|
| External connection method | 8-pin round socket |
|---|
| Applicable socket | P2CF-08, P2CF-08-E, P3G-08, PL08 |
|---|
| Accessory (sold separately) | Soft Cover: Y92A-48DHard Cover: Y92A-48BFlush mounting adapter: Y92F-30/Y92F-70/Y92F-71 |
|---|
