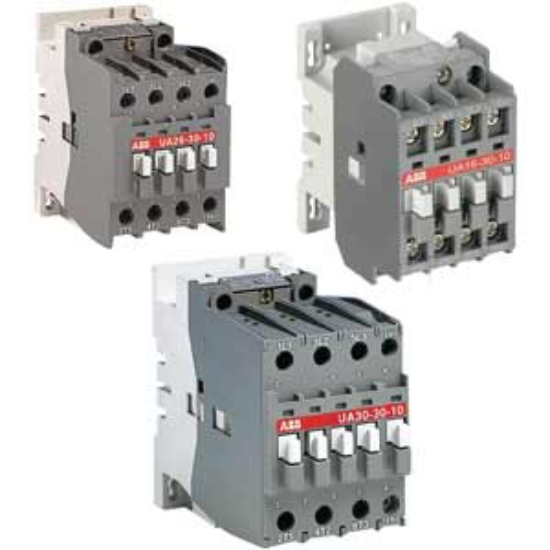

| Model | 1SBL181022R8010 (UA16-30-10 220-230V 50Hz / 230-240V 60Hz) |
| Dòng điện (Ie) | 2A |
| Số cực | 3P |
| Tiếp điểm chính | 3NO |
| Cuộn dây | 220...230VAC, 230...240VAC |
| Tiếp điểm phụ | 1NO |
| Phụ kiện mua rời | DIN-rail: HYBT-01, DIN-rail: PFP-100N, DIN-rail: TC 5x35x1000-Aluminiu m, DIN-rail: TC 5x35x1000-Steel, Stopper: BIZ-07, Stopper: BNL6, Stopper: HYBT-07, Function marker: 1SBN110000R1000 (BA5-50), Surge supressor: 1SBN050100R1000 (RC5-1/50), Surge supressor: 1SBN050100R1001 (RC5-1/133), Surge supressor: 1SBN050100R1002 (RC5-1/250), Surge supressor: 1SBN050100R1003 (RC5-1/140), Interface relay: 1SBN060300R1000 (RA5-1), Interface relay: 1SBN060300T1000 (RA5-1), Mechanical latching unit: FPTN372726R1001 (WB75-A 24V 50Hz / 24-28V 60Hz / 24V DC), Mechanical latching unit: FPTN372726R1002 (WB75-A 42V 50Hz / 42-48V 60Hz / 42V DC), Mechanical latching unit: FPTN372726R1003 (WB75-A 48V 50Hz / 48-55V 60Hz / 48V DC), Mechanical latching unit: FPTN372726R1004 (WB75-A 110V 50Hz / 110-127V 60Hz / 110V DC), Mechanical latching unit: FPTN372726R1006 (WB75-A 220-230V 50Hz / 220-255V 60Hz / 220-230V DC), Mechanical latching unit: FPTN372726R1005 (WB75-A 230-240V 50Hz / 230-277V 60Hz / 230-240V DC), Mechanical latching unit: FPTN372726R1007 (WB75-A 380-415V 50Hz / 380-440V 60Hz / 380-415V DC), Mechanical latching unit: FPTN372726R1008 (WB75-A 415-440V 50Hz / 440-480V 60Hz / 415-440V DC) [...] |
| Tiếp điểm phụ (Mua riêng) | 1SBN010040R1122 (CA5-22M), 1SBN010040R1131 (CA5-31M), 1SBN010040R1113 (CA5-13M), 1SBN010040R1104 (CA5-04M), 1SBN010040R1118 (CA5-11/11M), 1SBN010011R1010 (CC5-10), 1SBN010011R1001 (CC5-01), 1SBN010020R1011 (CAL5-11), 1SBN010015R1001 (CE5-01D0.1), 1SBN010015R1010 (CE5-10D0.1), 1SBN010016R1001 (CE5-01W0.1), 1SBN010016R1010 (CE5-10W0.1), 1SBN010017R1001 (CE5-01D2), 1SBN010017R1010 (CE5-10D2), 1SBN010018R1001 (CE5-01W2), 1SBN010018R1010 (CE5-10W2), 1SBN010010R1001 (CA5-01), 1SBN010010R1010 (CA5-10) [...] |
| Tiếp điểm phụ có thời gian (Mua riêng) | 1SBN020312R1000 (TEF5-ON), 1SBN020314R1000 (TEF5-OFF) |
| Loại | Electromagnetic starter |
| Kích thước | 16AF |
| Công suất ở 415V | 12.5kVAR |
| Tần số | 50/60Hz |
| Điện áp dây | AC |
| Điện áp | 690VAC |
| Thời gian khởi động | 4...11ms coil de-energization and NO contact opening, 10...26ms coil e nergization and NO contact closing [...] |
| Chức năng mở rộng | UA contactors can be used for the switching of capacitor banks whose i nrush current peaks are less than or equal to 100 times nominal rms current [...] |
| Đấu nối | Bắt vít |
| Lắp đặt | Gắn thanh ray |
| Nhiệt độ môi trường | -40...70°C |
| Khối lượng tương đối | 340g |
| Chiều rộng tổng thể | 44mm |
| Chiều cao tổng thể | 74mm |
| Chiều sâu tổng thể | 74mm |
| Cấp bảo vệ | IP20 |
| Tiêu chuẩn | IEC 60947, IEC/EN 60529 |
