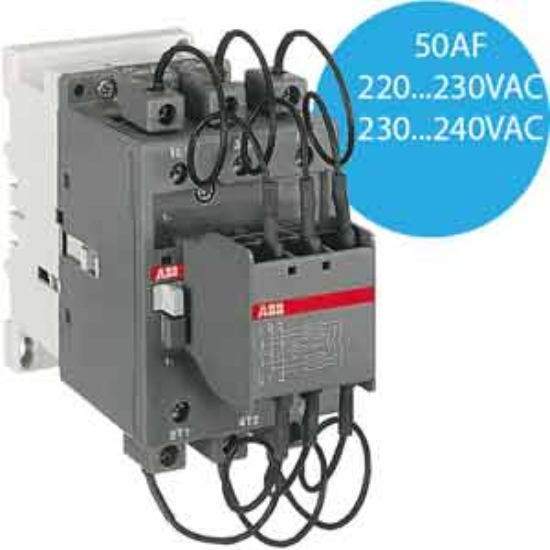

| Model | 1SBL351024R8000 (UA50-30-00RA 220-230V 50Hz / 230-240V 60Hz) |
| Số cực | 3P |
| Tiếp điểm chính | 3NO |
| Cuộn dây | 220...230VAC, 230...240VAC |
| Phụ kiện mua rời | DIN-rail: HYBT-01, DIN-rail: PFP-100N, DIN-rail: TC 5x35x1000-Aluminiu m, DIN-rail: TC 5x35x1000-Steel, Stopper: BIZ-07, Stopper: BNL6, Stopper: HYBT-07, Function marker: 1SBN110000R1000 (BA5-50), Surge suppressor: 1SBN050010R1000 (RV5/50), Surge suppressor: 1SBN050010R1001 (RV5/133), Surge suppressor: 1SBN050010R1002 (RV5/250), Surge suppressor: 1SBN050010R1002 (RV5/440), Surge suppressor: 1SBN050200R1000 (RC5-2/50), Surge suppressor: 1SBN050200R1001 (RC5-2/133), Surge suppressor: 1SBN050200R1002 (RC5-2/250), Surge suppressor: 1SBN050200R1003 (RC5-2/440), Interface relay: 1SBN060300R1000 (RA5-1), Interface relay: 1SBN060300T1000 (RA5-1), Terminal block: 1SBN073508R1000 (LD75), Terminal for control lead connection: 1SBN073552R1003 (LK75-L), Terminal for control lead connection: 1SBN073552R1002 (LK75-F) [...] |
| Tiếp điểm phụ (Mua riêng) | 1SBN010020R1011 (CAL5-11), 1SBN010010R1001 (CA5-01), 1SBN010010R1010 ( CA5-10), 1SBN010015R1001 (CE5-01D0.1), 1SBN010015R1010 (CE5-10D0.1), 1SBN010016R1001 (CE5-01W0.1), 1SBN010016R1010 (CE5-10W0.1), 1SBN010017R1001 (CE5-01D2), 1SBN010017R1010 (CE5-10D2), 1SBN010018R1001 (CE5-01W2), 1SBN010018R1010 (CE5-10W2) [...] |
| Loại | Electromagnetic starter |
| Kích thước | 50AF |
| Công suất ở 415V | 40kVAR |
| Tần số | 50/60Hz |
| Điện áp dây | AC |
| Điện áp | 690VAC |
| Thời gian khởi động | 4...11ms coil de-energization and NO contact opening, 8...27ms coil en ergization and NO contact closing [...] |
| Chức năng mở rộng | U50 RA...UA75 RA series contactors for capacitor switching can be used for installations in which the peak current far exceeds 100 times nominal rms current., The contactors are delivered complete with their damping resistors and must be used without additional inductances, The capacitors must be discharged (maximum residual voltage at terminals <= 50 V) before being re-energized when the contactors are making [...] |
| Đấu nối | Bắt vít |
| Lắp đặt | Gắn thanh ray |
| Nhiệt độ môi trường | -40...70°C |
| Khối lượng tương đối | 1.35kg |
| Chiều rộng tổng thể | 70mm |
| Chiều cao tổng thể | 110mm |
| Chiều sâu tổng thể | 140.4mm |
| Cấp bảo vệ | IP10, IP20 |
| Tiêu chuẩn | EN 60947, EN/IEC 60947-5-1
|
