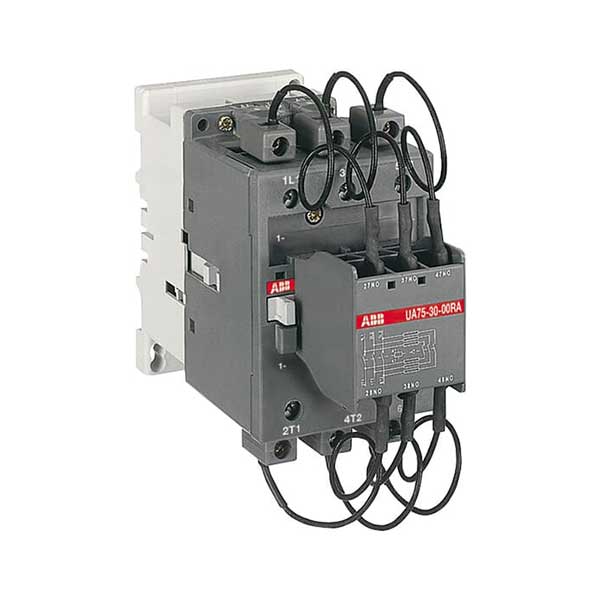

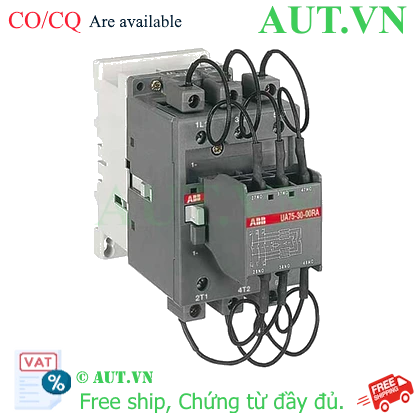

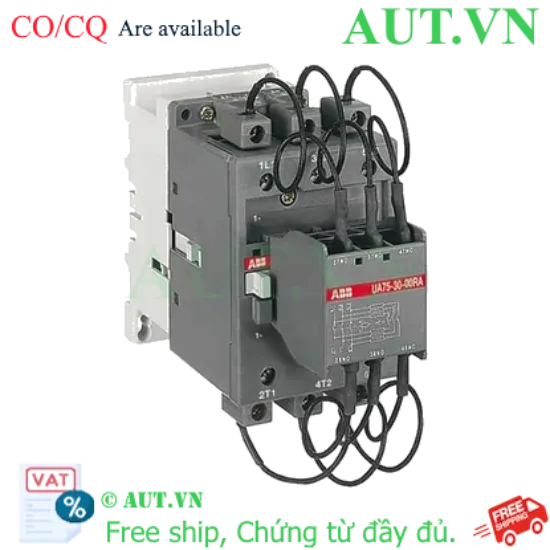

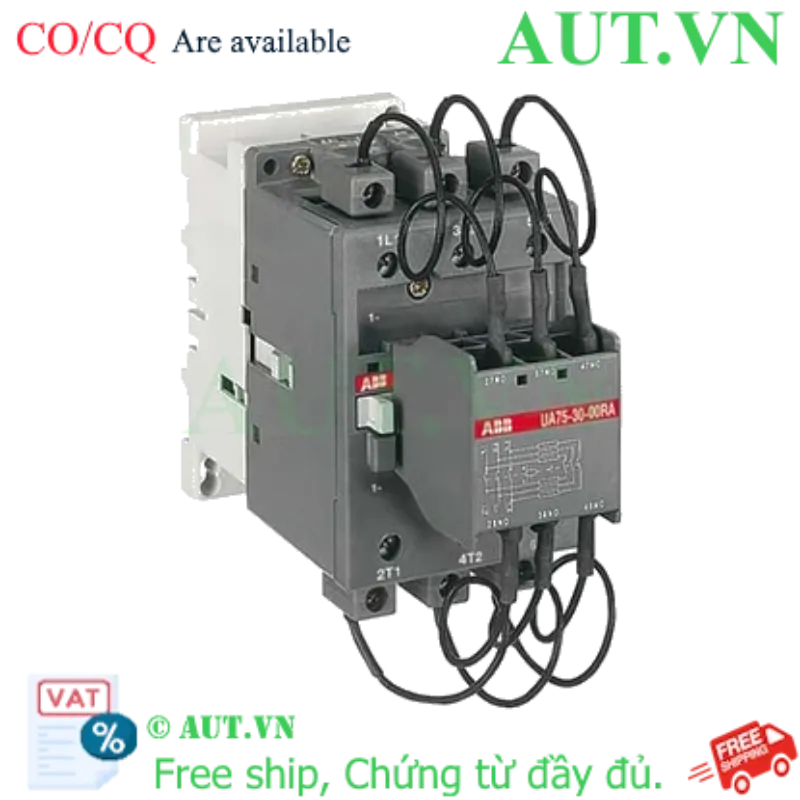

Ảnh của 1SBL371024R8800

1SBL371024R8800

1SBL371024R8800
SKU: 1SBL371024R8800
Hãng sản xuất: ABB
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Mua Ngay : Zalo

nhà chế tạo: ABB
SKU: 1SBL371024R8800
Ngày giao hàng: 1-3 days
1.000 ₫
Giao đến
*
*
Phương pháp vận chuyển
Tên
Ngày dự kiến giao hàng
Giá bán
Không có tùy chọn giao hàng nào

1SBL371024R8800


Thông Tin Chi Tiết Sản Phẩm


Number of Main Contacts NO: 3
Number of Main Contacts NC: 0
Number of Auxiliary Contacts NO: 0
Number of Auxiliary Contacts NC: 0
Rated Operational Voltage: Main Circuit 690 V
Rated Frequency (f): Control Circuit 50 / 60 Hz
Rated Operational Power AC-6b (Pe): (230 / 240 V) 40 °C, 50 / 60 Hz 30 kvar
(230 / 240 V) 55 °C, 50 / 60 Hz 27 kvar
(230 / 240 V) 70 °C, 50 / 60 Hz 23 kvar
(400 / 415 V) 40 °C, 50 / 60 Hz 50 kvar
(400 / 415 V) 70 °C, 50 / 60 Hz 39 kvar
(400 / 415 V) 55 °C, 50 / 60 Hz 45 kvar
(440 V) 40 °C, 50 / 60 Hz 55 kvar
(440 V) 55 °C, 50 / 60 Hz 48 kvar
(440 V) 70 °C, 50 / 60 Hz 42.5 kvar
(500 / 550 V), 40 °C, 50 / 60 Hz 65 kvar
(500 / 550 V) 55 °C, 50 / 60 Hz 60 kvar
(500 / 550 V) 70 °C, 50 / 60 Hz 50 kvar
(690 V) 40 °C, 50 / 60 Hz 80 kvar
(690 V) 55 °C, 50 / 60 Hz 75 kvar
(690 V) 70 °C, 50 / 60 Hz 65 kvar
Short-Circuit Protective Devices: gG Type Fuses 200 A
Maximum Breaking Capacity: cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1300 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 630 A
Maximum Electrical Switching Frequency: 240 cycles per hour
Rated Insulation Voltage (Ui): acc. to IEC 60947-4-1 1000 V
acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp): 8 kV
Rated Control Circuit Voltage (Uc): 50 Hz 230 … 240 V
60 Hz 240 … 260 V
Coil Consumption: Average Holding Value 50 / 60 Hz 18 V·A
Average Holding Value 50 Hz 18 V·A
Average Holding Value 60 Hz 18 V·A
Average Pull-in Value 50 Hz 180 V·A
Average Pull-in Value 60 Hz 210 V·A
Operate Time: Between Coil De-energization and NO Contact Opening 4 … 11 ms
Between Coil Energization and NO Contact Closing 8 … 27 ms
Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH75-25 (75 x 25 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied): 2 x M6 screws placed diagonally
Connecting Capacity Main Circuit: Flexible with Cable End 6 … 10 mm²
Rigid Cable 6 … 16 mm²
Connecting Capacity Auxiliary Circuit: Flexible with Cable End 0.75 … 2.5 mm²
Rigid Cable 1 … 4 mm²
Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Connecting Terminals (delivered in open position) Main Poles: M 6 (+,-) pozidriv 2 screws with 1x (13 x 10 mm) connector
Terminal Type: Screw Terminals
>

Sản Phẩm Liên Quan

Product Net Width:70 mm
Product Net Depth / Length: 140.4 mm
Product Net Height: 150 mm
Product Net Weight: 1.35 kg
