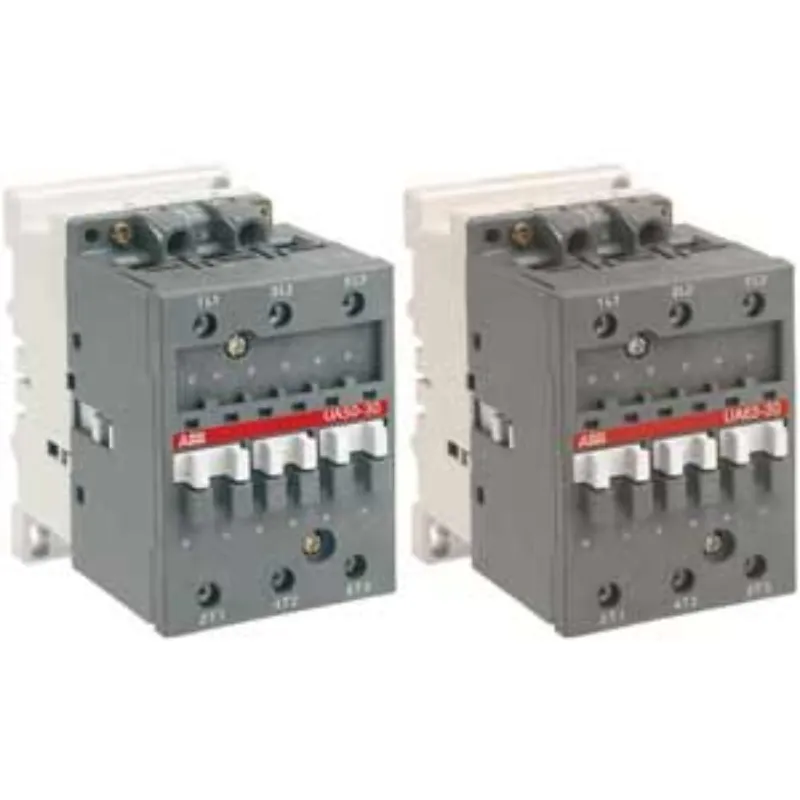

| Model | 1SBL411022R8400 (UA75-30-00 110V 50Hz / 110-120V 60Hz) |
| Số cực | 3P |
| Tiếp điểm chính | 3NO |
| Cuộn dây | 110VAC, 110...120VAC |
| Tiếp điểm phụ | 3NO |
| Phụ kiện mua rời | DIN-rail: HYBT-01, DIN-rail: PFP-100N, DIN-rail: TC 5x35x1000-Aluminiu m, DIN-rail: TC 5x35x1000-Steel, Stopper: BIZ-07, Stopper: BNL6, Stopper: HYBT-07, Function marker: 1SBN110000R1000 (BA5-50), Surge suppressor: 1SBN050010R1000 (RV5/50), Surge suppressor: 1SBN050010R1001 (RV5/133), Surge suppressor: 1SBN050010R1002 (RV5/250), Surge suppressor: 1SBN050010R1002 (RV5/440), Surge suppressor: 1SBN050200R1000 (RC5-2/50), Surge suppressor: 1SBN050200R1001 (RC5-2/133), Surge suppressor: 1SBN050200R1002 (RC5-2/250), Surge suppressor: 1SBN050200R1003 (RC5-2/440), Interface relay: 1SBN060300R1000 (RA5-1), Interface relay: 1SBN060300T1000 (RA5-1), Mechanical latching unit: FPTN372726R1001 (WB75-A 24V 50Hz / 24-28V 60Hz / 24V DC), Mechanical latching unit: FPTN372726R1002 (WB75-A 42V 50Hz / 42-48V 60Hz / 42V DC), Mechanical latching unit: FPTN372726R1003 (WB75-A 48V 50Hz / 48-55V 60Hz / 48V DC), Mechanical latching unit: FPTN372726R1004 (WB75-A 110V 50Hz / 110-127V 60Hz / 110V DC), Mechanical latching unit: FPTN372726R1005 (WB75-A 230-240V 50Hz / 230-277V 60Hz / 230-240V DC), Mechanical latching unit: FPTN372726R1006 (WB75-A 220-230V 50Hz / 220-255V 60Hz / 220-230V DC), Mechanical latching unit: FPTN372726R1007 (WB75-A 380-415V 50Hz / 380-440V 60Hz / 380-415V DC), Mechanical latching unit: FPTN372726R1008 (WB75-A 415-440V 50Hz / 440-480V 60Hz / 415-440V DC), Terminal block: 1SBN073508R1000 (LD75), Terminal for control lead connection: 1SBN073552R1003 (LK75-L), Terminal for control lead connection: 1SBN073552R1002 (LK75-F) [...] |
| Tiếp điểm phụ (Mua riêng) | 1SBN010010R1010 (CA5-10), 1SBN010010R1001 (CA5-01), 1SBN010040R1022 (C A5-22E), 1SBN010040R1031 (CA5-31E), 1SBN010040R1040 (CA5-40E), 1SBN010040R1004 (CA5-04E), 1SBN010040R1018 (CA5-11/11E), 1SBN010020R1011 (CAL5-11), 1SBN010015R1010 (CE5-10D0.1), 1SBN010015R1001 (CE5-01D0.1), 1SBN010017R1010 (CE5-10D2), 1SBN010017R1001 (CE5-01D2), 1SBN010016R1010 (CE5-10W0.1), 1SBN010016R1001 (CE5-01W0.1), 1SBN010018R1010 (CE5-10W2), 1SBN010018R1001 (CE5-01W2) [...] |
| Tiếp điểm phụ có thời gian (Mua riêng) | 1SBN020312R1000 (TEF5-ON), 1SBN020314R1000 (TEF5-OFF) |
| Loại | Electromagnetic starter |
| Kích thước | 75AF |
| Công suất ở 415V | 50kVAR |
| Tần số | 50/60Hz |
| Điện áp dây | AC |
| Điện áp | 690VAC |
| Thời gian khởi động | 4...11ms coil de-energization and NO contact opening, 8...27ms coil en ergization and NO contact closing [...] |
| Chức năng mở rộng | UA50...UA75 series contactors can be used for the switching of capacit or banks whose inrush current peaks are less than or equal to 100 times nominal rms current, The capacitors must be discharged (maximum residual voltage at terminals = 50 V) before being re-energized when the contactors are making [...] |
| Đấu nối | Bắt vít |
| Lắp đặt | Gắn thanh ray |
| Nhiệt độ môi trường | -40...70°C |
| Khối lượng tương đối | 1.16kg |
| Chiều rộng tổng thể | 70mm |
| Chiều cao tổng thể | 110mm |
| Chiều sâu tổng thể | 108mm |
| Cấp bảo vệ | IP10, IP20 |
| Tiêu chuẩn | IEC/EN 60529, IEC 60947 |
