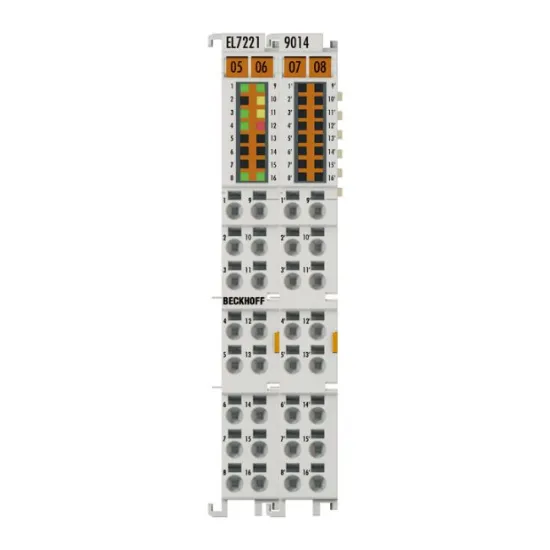

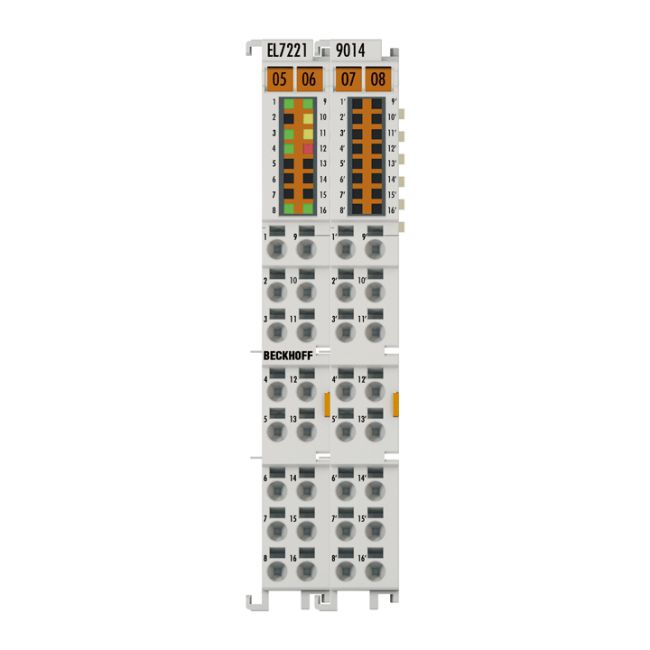

Ảnh của EL7221-9014 | EtherCAT Terminal, 1-channel motion interface, servo motor, 48 V DC, 8 A, OCT, suitable for STO applications

EL7221-9014 | EtherCAT Terminal, 1-channel motion interface, servo motor, 48 V DC, 8 A, OCT, suitable for STO applications

EL7221-9014 | EtherCAT Terminal, 1-channel motion interface, servo motor, 48 V DC, 8 A, OCT, suitable for STO applications
SKU: EL7221-9014
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Mua Ngay : Zalo

nhà chế tạo: Beckhoff
SKU: EL7221-9014
Ngày giao hàng: 1-3 days
1.000 ₫
Giao đến
*
*
Phương pháp vận chuyển
Tên
Ngày dự kiến giao hàng
Giá bán
Không có tùy chọn giao hàng nào

EL7221-9014 | EtherCAT Terminal, 1-channel motion interface, servo motor, 48 V DC, 8 A, OCT, suitable for STO applications


Thông Tin Chi Tiết Sản Phẩm


Technical dataEL7221-9014
ProtocolEtherCAT
Technologycompact drive technology
Connection methoddirect motor connection with OCT
Number of inputs2 x end position, 1 x feedback, 1 x STO
Load typepermanent magnet-excited three-phase synchronous motor
Number of channels1
Number of outputs1 x servomotor, 1 x motor brake
Supply voltage electronics24 V DC (via power contacts)
Supply voltage power8…48 V DC (external)
Performance increase–
Output current with ZB8610 (rms)7.0 A up to 55 °C, 8.0 A up to 45 °C operating temperature
Peak current with ZB8610 (rms)max. 16.0 A for 1 s up to 55 °C operating temperature
Rotating field frequency0…599 Hz
PWM clock frequency16 kHz
Current controller frequency32 kHz
Rated speed controller frequency16 kHz
Output voltage motor brake24 V DC
Output current motor brakemax. 0.5 A
Current consumption power contactstyp. 100 mA + holding current motor brake
Current consumption E-bustyp. 120 mA
Distributed clocksyes
Realization STOhard-wired via safe output
Special featurescompact, absolute feedback, One Cable Technology (OCT), plug and play, integrated track control
Safe stop functionsSafe Torque Off (STO), Safe Stop 1 (SS1)
Electrical isolation500 V (E-bus/field potential)
Weightapprox. 95 g
Operating/storage temperature0…+55 °C/-25…+85 °C
Relative humidity95 %, no condensation
EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.IP 20/see documentation
Approvals/markingsCE, UL
>
