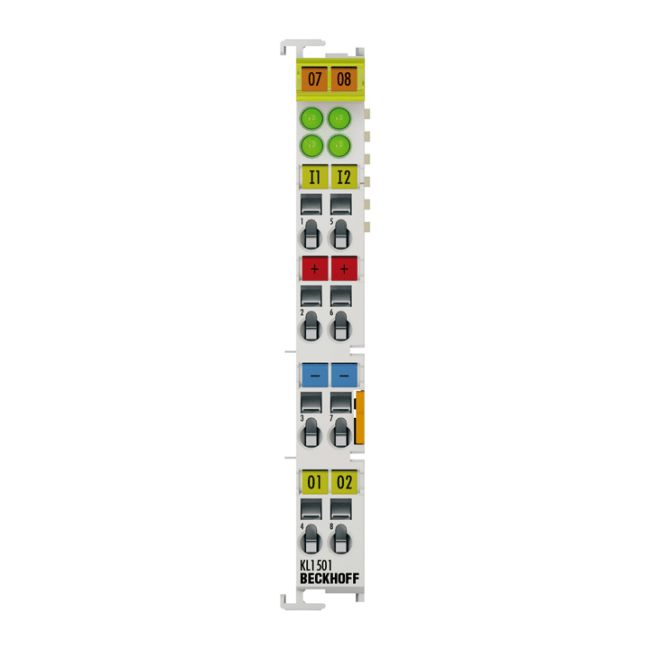

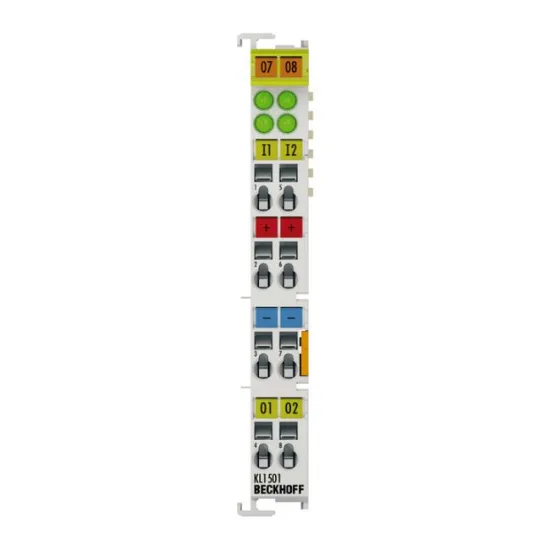

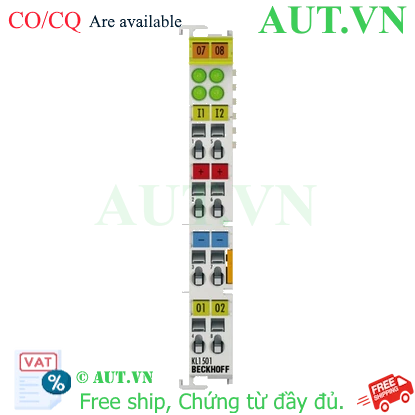

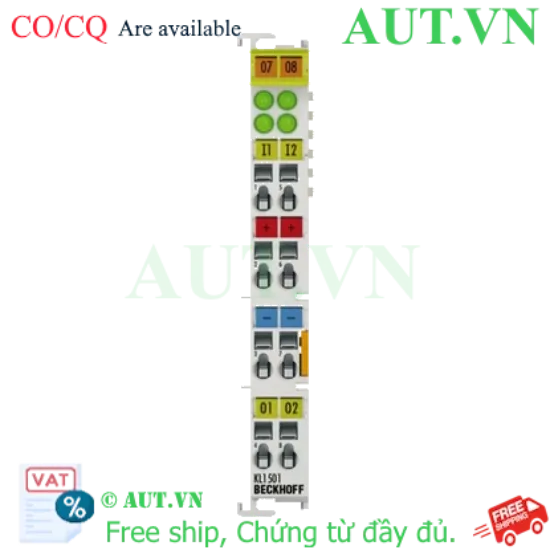

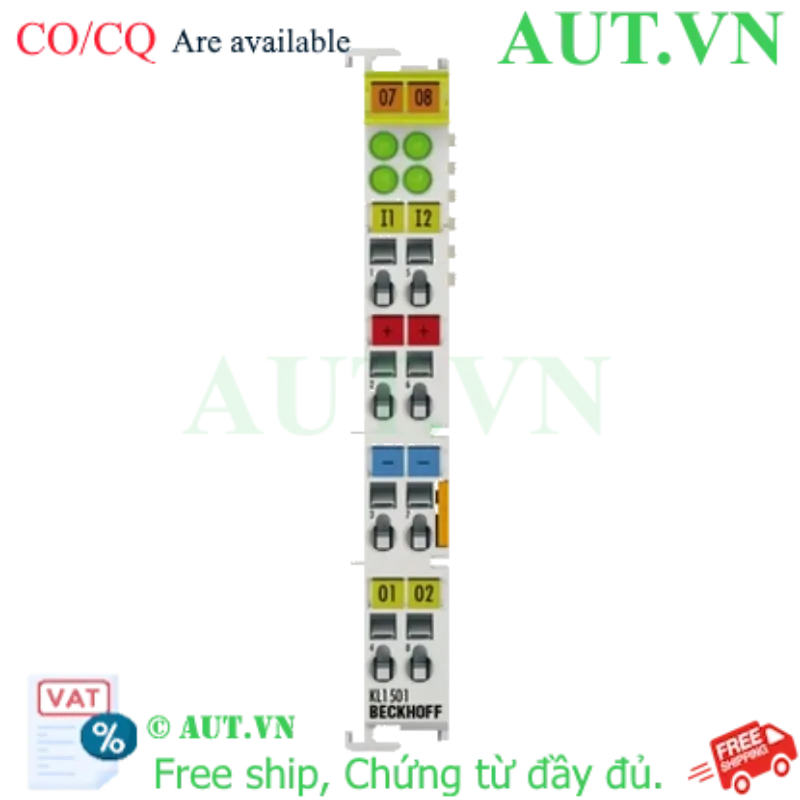

| Connection technology | 1 x up/down counter, 2 x up or down counter |
| Specification | EN 61131-2, type 1, “0”: < 5 V DC, “1”: > 15 V DC, typ. 5 mA |
| Number of counters | 1 or 2 |
| Nominal voltage | 24 V DC (-15 %/+20 %) |
| “0” signal voltage | -3…+5 V (EN 61131-2, type 1) |
| “1” signal voltage | 15…30 V (EN 61131-2, type 1) |
| Counting frequency | max. 100 kHz (2 kHz for switching up/down) |
| Counter depth | 32 bit |
| Input current | typ. 5 mA (EN 61131-2, type 1) |
| Max. output current | 24 V/0.5 A (short-circuit proof) per channel |
| Current consumption K-bus | typ. 50 mA |
| Current consumption power contacts | load only |
| Electrical isolation | 500 V (K-bus/field potential) |
| Bit width in the process image | 40 inputs/outputs: 32 bit data, 8 bit control/status |
| Configuration | no address setting, configuration via Bus Coupler or controller |
| Special features | set counters, switch outputs |
| Weight | approx. 50 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/variable |
| Pluggable wiring | for all KSxxxx Bus Terminals |
| Approvals/markings | CE, UL, ATEX, IECEx, cFMus |
| Ex marking | ATEX:
II 3 G Ex nA IIC T4 Gc
IECEx:
Ex nA IIC T4 Gc
Ex tc IIIC T135 °C Dc
cFMus:
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, AEx ec IIC T4 Gc |
