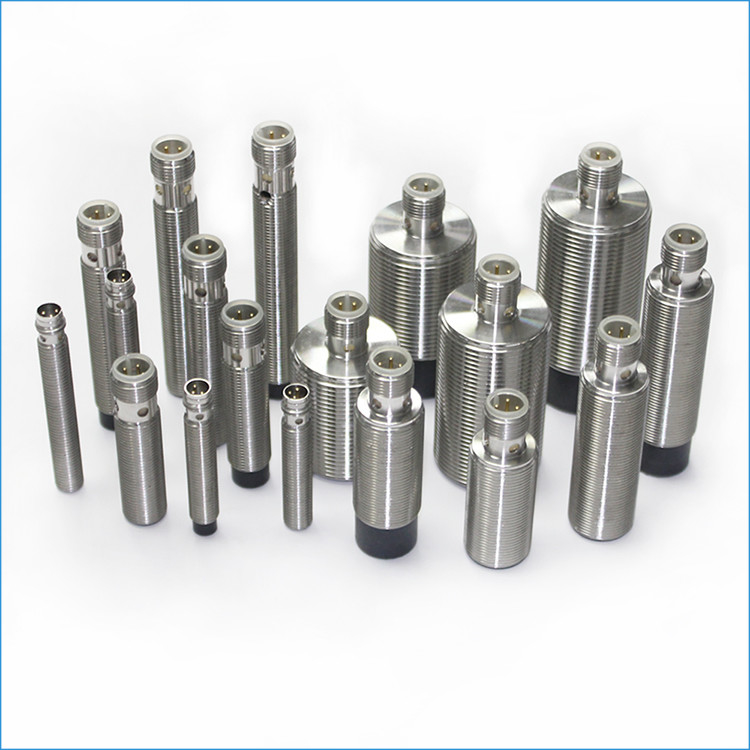

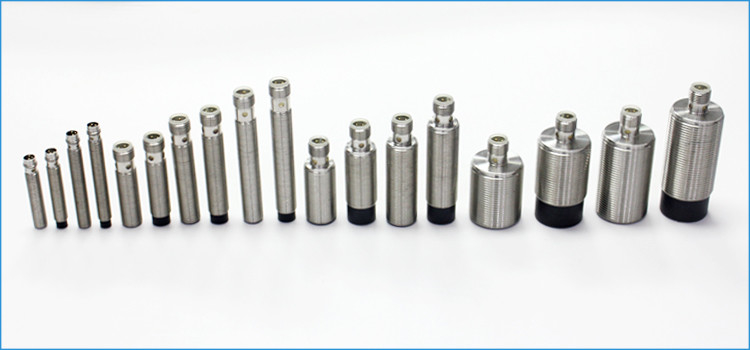

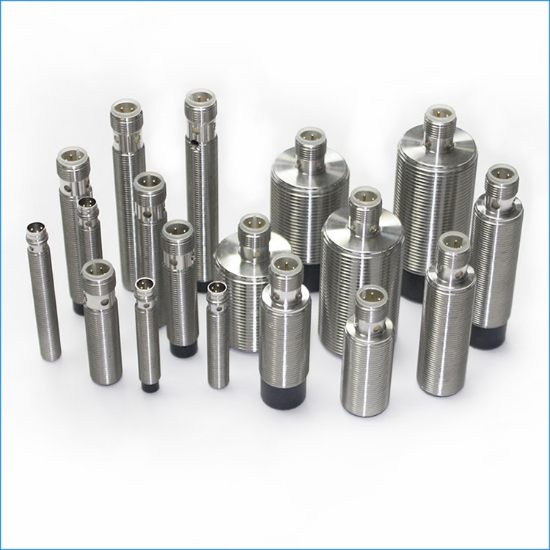

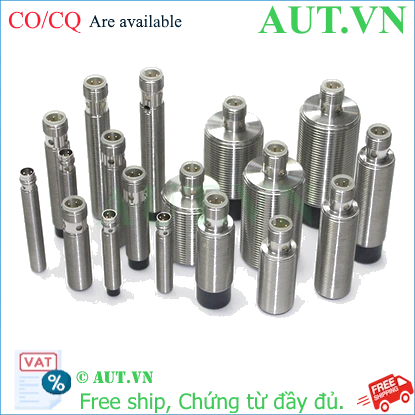

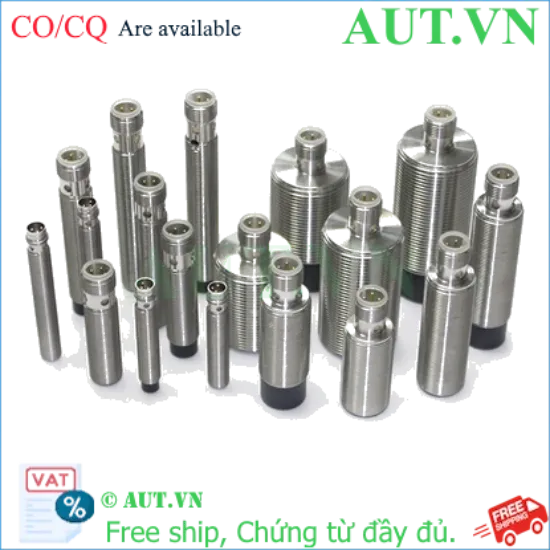

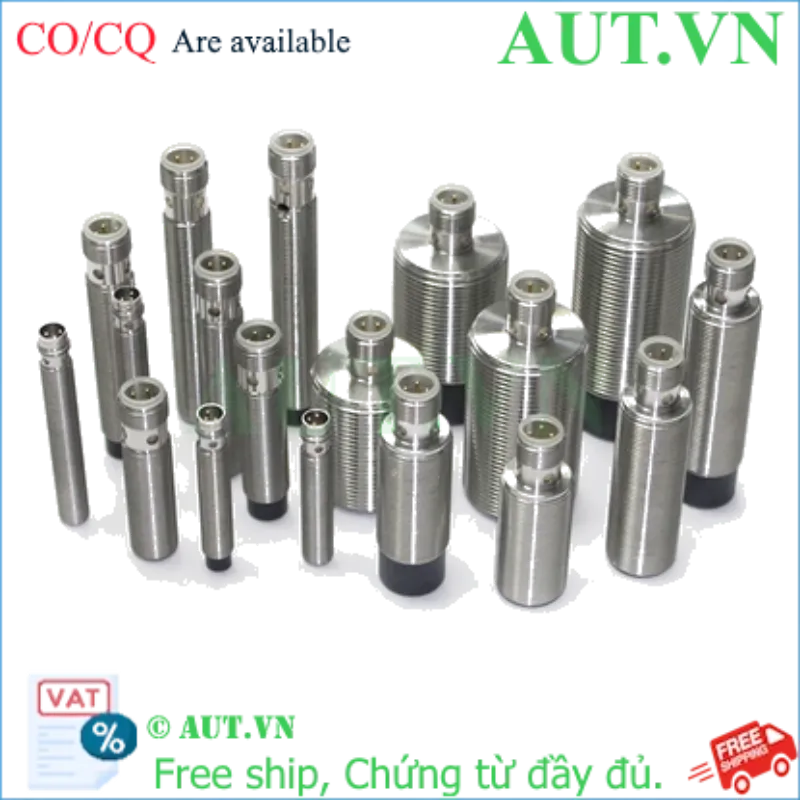

Cảm biến tiệm cận F&C Sensor F3C-12KS02-P/D

Length

Standard Body

Short Body

NPN NO

F3C-12KS02-N/D

F3C-12KN04-N/D

F3C-12ES02-N N/D

F3C-12EN04-N N/D

NPN NC

F3C-12KS02-N2 N/D

F3C-12KN04-N2/D

F3C-12ES02-N2 N/D

F3C-12EN04-N2 N/D

PNP NO

F3C-12KS02-P N/D

F3C-12KN04-P/D

F3C-12ES02-P N/D

F3C-12EN04-P R2M

PNP NC

F3C-12KS02-P2 N/D

F3C-12KN04-P2/D

F3C-12ES02-P2 N/D

F3C-12EN04-P2 N/D

Sensing Distance

2mm

4mm

2mm

4mm

Standard Object

12×12×1(iron)

Response Frequency

600Hz

Hysteresis

≤10% sensing distance

Operating Voltage

12~24VDC±10% (customize 5V)

Current Consumption

≤8mA (No Load)

Load Current

100mA Max at 24Vdc

Circuit Protection

Polarity Reverse Protection and Short-Circuit Protection

Operating Temperature

-20°C~+70°C

Material

PBTand SUS304

Wiring method

2M/3-wires

Protection degree

IP67
