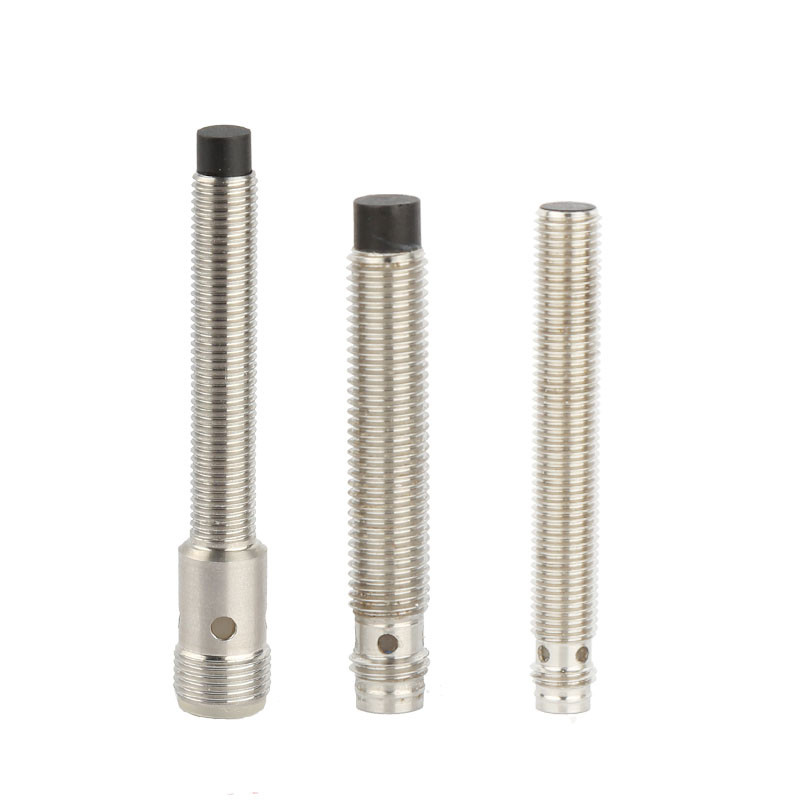

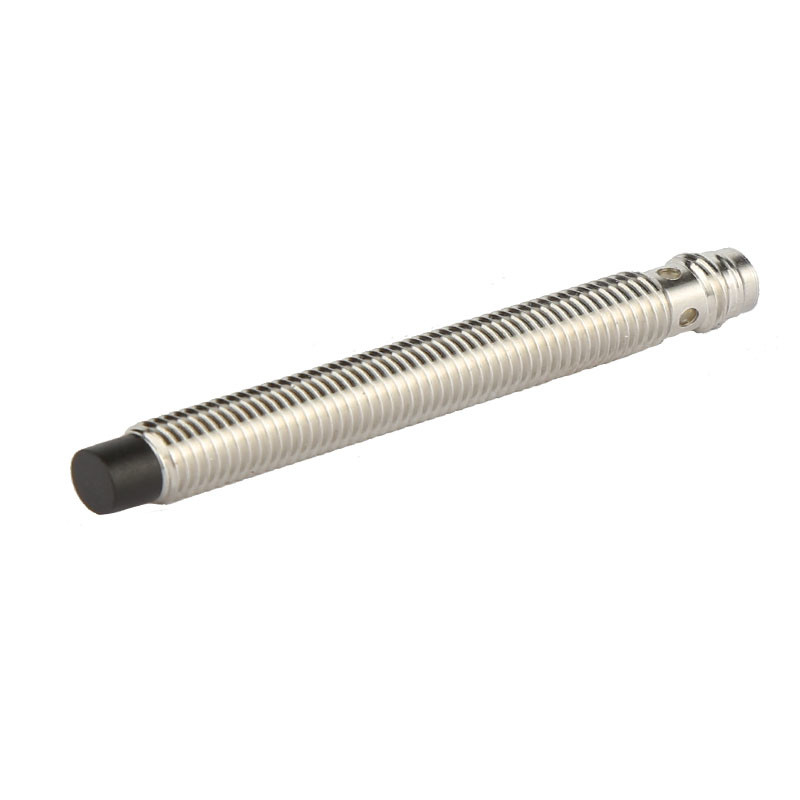

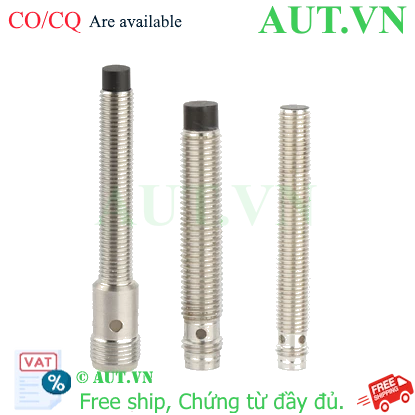

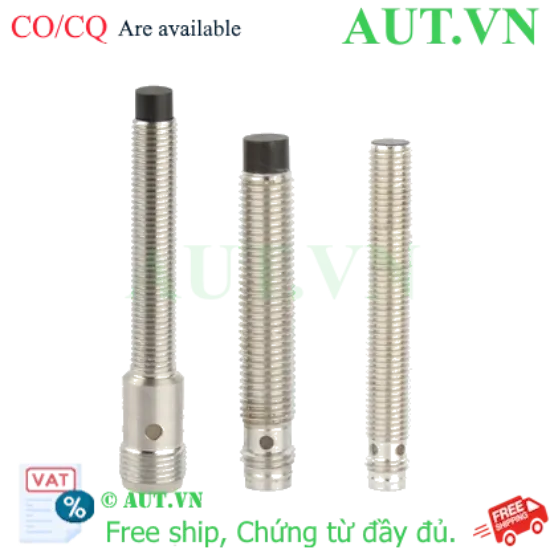

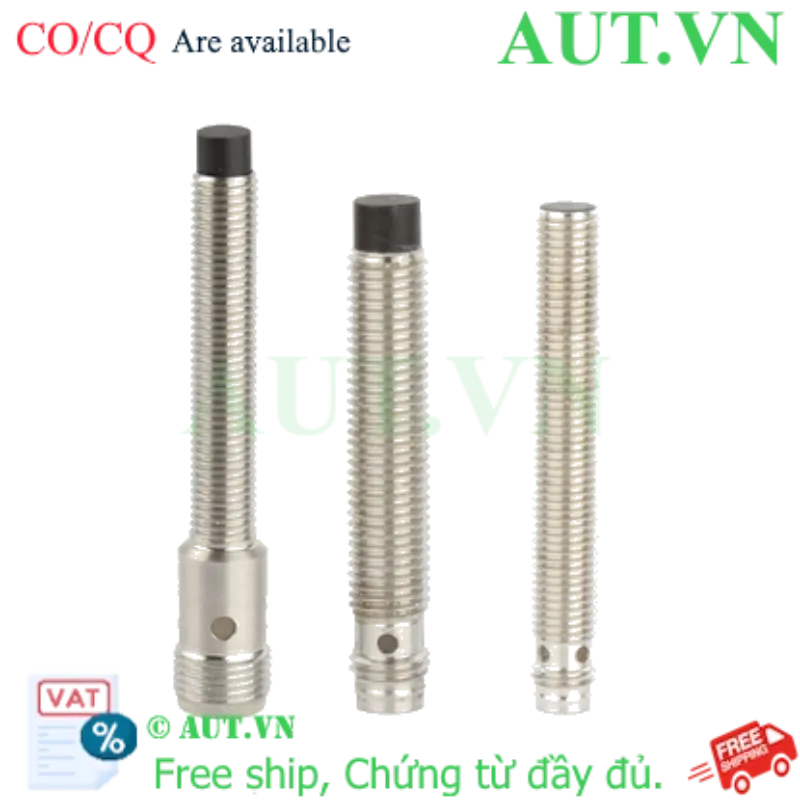

Cảm biến tiệm cận F&C Sensor F3L-08KN04-P/D

Type

Standard Head

Mounting Method

Non-Flush

Length

Standard Body

Standard Body

Short Body

Short Body

Sensing Distance

2mm

4mm

2mm

4mm

NPN NO

F3C-08KN02-N

F3L-08KN04-N/D

F3C-08EN02-N/D

F3L-08EN04-N/D

NPN NC

F3C-08KN02-N2/D

F3L-08KN04-N2/D

F3C-08EN02-N/D

F3L-08EN04-N2/D

PNP NO

F3C-08KN02-P /D

F3L-08KN04-P/D

F3C-08EN02-P/D

F3L-08EN04-P/D

PNP NC

F3C-08KN02-P2/D

F3L-08KN04-P2/D

F3C-08EN02-P2/D

F3L-08EN04-P2/D

Sensing Object

8×8×1(iron,metal)

12×12×1(iron,metal)

8×8×1(iron,metal)

12×12×1(iron,metal)

Response Frequency

1000HZ

Hysteresis

within 10% of sensing distance

Operating Voltage

12~24V DC

Operating Temperature

-25~70℃

Material

PBT and SUS304

Connection

M8 Connector

Certificate

CE

Protection Class

IP67

Circuit Protection

Polarity reverse protection and Short -Circuit Protection.
