Thông tin mô tả của: Phụ Kiện Mitsubishi CHINT FCP22-M8 4P

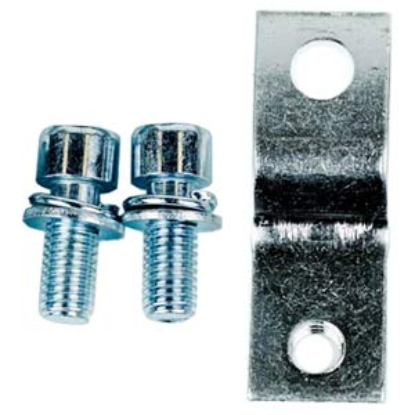

Tấm bắt thiết bị CHINT FCP22-M8 4P
Application: NM8N series
Function: Make the circuit breaker have a flexible wiring mode
Frame size : 22 for 250 frame
Pole: 4P
Plate type: Standard
Number of screw holes: 2
Screw hole diameter: 8.5mm
Screw size: M8
Distance between 2 hole centers: 39.2mm
Overal width: 20mm
Thông tin mô tả của: Phụ Kiện Mitsubishi CHINT FCP25-M8 4P(1600)
Tấm bắt thiết bị CHINT FCP25-M8 4P(1600)
Application: NM8N series
Function: Make the circuit breaker have a flexible wiring mode
Frame size : 25 for 1600 frame
Pole: 4P
Plate type: L, Plate type: Z
Number of screw holes: 5
Screw hole diameter: 11mm
Screw size: M10
Distance between 2 hole centers: 25
Overal width: 74.5mm, Overal width: 77mm
Thông tin mô tả của: Phụ Kiện Mitsubishi CHINT FCP23-M8 4P
Tấm bắt thiết bị CHINT FCP23-M8 4P
Application: NM8N series
Function: Make the circuit breaker have a flexible wiring mode
Frame size : 23 for 400/630 frame
Pole: 4P
Plate type: Standard
Number of screw holes: 2
Screw hole diameter: 13.1mm
Screw size: M10
Distance between 2 hole centers: 39mm
Overal width: 38mm, Overal width: 30mm
