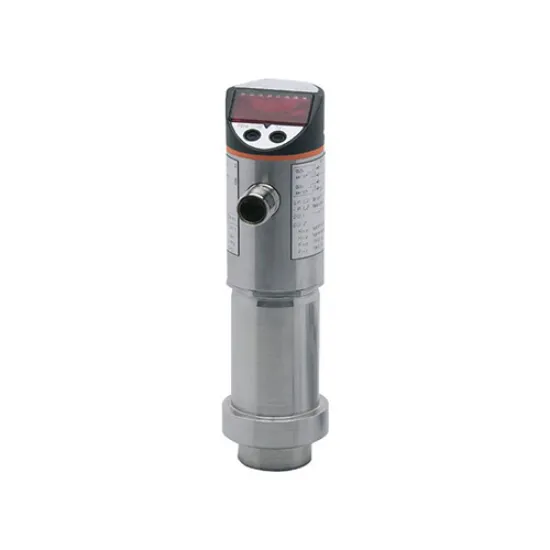

Ảnh của Cảm biến áp suất IFM PY9000

Cảm biến áp suất IFM PY9000

Cảm biến áp suất IFM PY9000
SKU: PY9000
Hãng sản xuất: IFM
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Mua Ngay : Zalo

nhà chế tạo: IFM
SKU: PY9000
Ngày giao hàng: 1-3 days
1.000 ₫
Giao đến
*
*
Phương pháp vận chuyển
Tên
Ngày dự kiến giao hàng
Giá bán
Không có tùy chọn giao hàng nào

Cảm biến áp suất IFM PY9000


Thông Tin Chi Tiết Sản Phẩm


Product characteristics
Output signal switching signal; analogue signal; (configurable)
Measuring range [bar] 0…600
Process connection homogeniser connection
Application
Special feature Gold-plated contacts
Application food and beverage industry
Media liquids and gases
Conditionally suitable for For gaseous media the application is limited to max. 25 bar.
Medium temperature [°C] -25…100; (145 max 1h)
Min. bursting pressure [bar] 1200
Pressure rating [bar] 800
Type of pressure relative pressure
Electrical data
Operating voltage [V] 20…30 DC
Current consumption [mA] < 65
Min. insulation resistance [MΩ] 100; (500 V DC)
Protection class III
Reverse polarity protection yes
Power-on delay time [s] 0.3
Integrated watchdog yes
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1
Outputs
Total number of outputs 2
Output signal switching signal; analogue signal; (configurable)
Electrical design PNP/NPN
Number of digital outputs 2
Output function normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V] 2
Permanent current rating of switching output DC [mA] 250
Switching frequency DC [Hz] < 170
Number of analogue outputs 1
Analogue current output [mA] 4…20; (scalable 1:4)
Max. load [Ω] (Ub – 10 V) / 20 mA
Analogue voltage output [V] 0…10; (scalable 1:4)
Min. load resistance [Ω] 2000
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Measuring/setting range
Measuring range [bar] 0…600
Set point SP [bar] 6…600
Reset point rP [bar] 3…597
Analogue start point [bar] 0…240
Analogue end point [bar] 150…600
In steps of [bar] 3
Accuracy / deviations
Switch point accuracy [% of the span] < ± 1,0; (Turn down 1:1)
Repeatability [% of the span] < ± 0,25; (with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span] < ± 1,0; (Turn down 1:1 linearity, incl. hysteresis and repeatability limit value setting to DIN 16086)
Linearity deviation [% of the span] < ± 0,5; (Turn down 1:1)
Hysteresis deviation [% of the span] < ± 1,0; (Turn down 1:1)
Long-term stability [% of the span] < ± 0,25; (Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K] < ± 0,2; (0…80 °C)
Temperature coefficient span [% of the span / 10 K] < ± 0,2; (0…80 °C)
Response times
Response time [ms] < 3
Damping for the switching output dAP [s] 0…4
Damping for the analogue output dAA in steps [s] 0 – 0; 1 – 0; 5 – 2
Max. response time analogue output [ms] 3
Software / programming
Parameter setting options hysteresis / window; normally open / normally closed; switching logic; current/voltage output; Damping; adaptation of displayed values; display can be rotated and switched off; Display unit; zero point; span
Operating conditions
Ambient temperature [°C] -25…80
Storage temperature [°C] -40…100
Protection IP 67
Mechanical data
Weight [g] 384
Materials stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); PC; PBT; PA; FKM; EPDM/X
Materials (wetted parts) stainless steel (1.4404 / 316L); ceramics (99.9 % Al2O3); FKM
Min. pressure cycles 50 million
Process connection homogeniser connection
Displays / operating elements
Display
Display unit 3 x LED, green
switching status 2 x LED, yellow
function display alphanumeric display, 4-digit
measured values alphanumeric display, 4-digit
Display unit bar; psi; MPa
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; Contacts: gold-plated
>
