Ảnh của Keyence FI-CF3

Keyence FI-CF3

Keyence FI-CF3

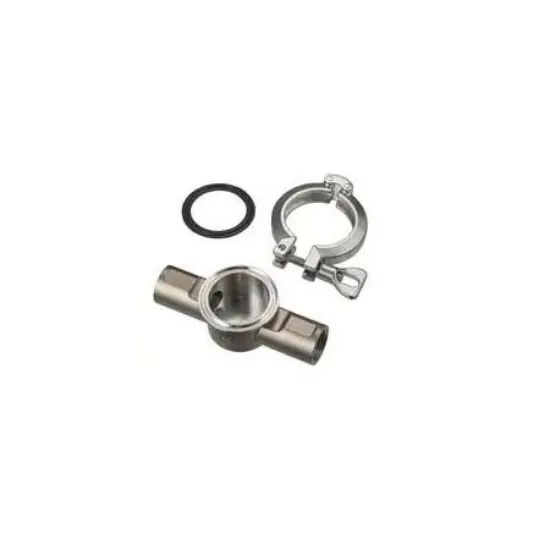

Pipe attachment NPT3/4 for FI-C40F
SKU: FI-CF3
Hãng sản xuất: Keyence
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Mua Ngay : Zalo

nhà chế tạo: Keyence
SKU: FI-CF3
Ngày giao hàng: 1-3 days
1.000 ₫
Giao đến
*
*
Phương pháp vận chuyển
Tên
Ngày dự kiến giao hàng
Giá bán
Không có tùy chọn giao hàng nào

Keyence FI-CF3


Thông Tin Chi Tiết Sản Phẩm


Model

FI-CF3

Type

Pipe type

Main unit

FI-C40F

Detection principle

Refractive index (surface light source)

Rated concentration range

Brix: 0–40% (nD: 1.32500–1.41000)

Display method

Status indicator light

Display range

Brix: 0–50%

Supported fluids

Non-corrosive aqueous solutions (such as water-soluble coolants, mold release agents, etc.)*1

Supported fluid temperature

0–70°C 32–158°F (no freezing)

Connection diameter

NPT3/4

Rated pressure range

1.0 MPa or less

Pressure resistance

2.0 MPa

Display resolution

Brix: 0.01/0.1% (default value: 0.1)
(nD: 0.00001)

Response time

1.0 s / 2.5 s / 5.0 s / 10.0 s / 30.0 s / 60.0 s / 120.0 s / 200.0 s

Measurement accuracy

Brix: ±0.2%*2*3 (nD: ±0.0003)

Concentration unit

Brix nD*4

Temperature measurement accuracy

±1.0°C 1.8°F*2

Power supply

Current consumption

25 mA or less

Environmental resistance

Enclosure rating

IP65/IP67 (IEC60529)

Ambient temperature

–10 to +60°C 14 to +140°F (no freezing)

Relative humidity

35–85% RH (no condensation)

Vibration resistance

10–500 Hz; Power spectral density: 0.816 G2/Hz; X, Y and Z directions

Shock resistance

100 m/s2 (approx. 10 G), 16 ms pulses, 1000 times each for X, Y and Z directions

Material

Liquid end materials

Body: SCS16A; Gasket: FKM

Other materials

Body: SUS304; PPS indicator light: PPSU / TPU / PBT
Cable: PVC

Weight

Approx. 790 g 27.87 oz

*1 Use water as the solvent, and use materials that are soluble in water. If the particles are not water soluble, such as with slurry, the refractive index may not change.
*2 This is the guaranteed value from verification performed at KEYENCE inspection facilities. Measurement error may occur depending on the type, condition and temperature of the fluid used by the customer, as well as other factors.
*3 This is the value obtained when sucrose solution is used in a constant 20°C 68°F environment, and absolute error and repeatability is taken into account.
*4 When using solutions other than sucrose solutions, concentration can be adjusted via span adjustment.

>
