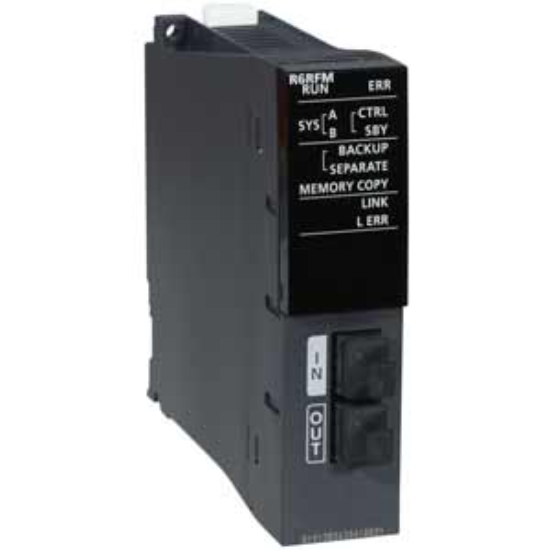

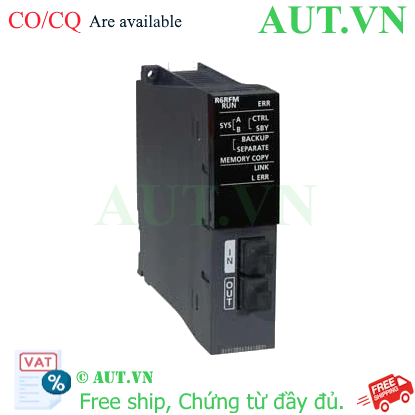

| Model | R6RFM |
| Loại | Mô đun |
| Phụ kiện mua rời | Battery holder unit and battery: Q6BAT |
| Cáp kết nối (Bán riêng) | Extension cable: RC06B, Extension cable: RC12B, Extension cable: RC30B , Extension cable: RC50B, Extension cable: RC100B [...] |
| Mô-đun mở rộng (Bán riêng) | Input module: RX28, Input module: RX10, Input module: RX10-TS, Input m odule: RX40C7, Input module: RX40C7-TS, Input module: RX41C4, Input module: RX41C4-TS, Input module: RX42C4, Input module: RX70C4, Input module: RX71C4, Input module: RX72C4, High-speed input module: RX40PC6H, High-speed input module: RX40NC6H, High-speed input module: RX41C6HS, High-speed input module: RX61C6HS, Input (with diagnostic functions) module: RX40NC6B, Output module: RY18R2A, Output module: RY10R2, Output module: RY10R2-TS, Output module: RY20S6, Output module: RY40NT5P, Output module: RY40NT5P-TS, Output module: RY41NT2P, Output module: RY41NT2P-TS, Output module: RY42NT2P, Output module: RY40PT5P, Output module: RY40PT5P-TS, Output module: RY41PT1P, Output module: RY41PT1P-TS, Output module: RY42PT1P, High-speed output module: RY41NT2H, High-speed output module: RY41PT2H, Output (with diagnostic functions) module: RY40PT5B, I/O combined module: RH42C4NT2P, Analog input module: R60AD4, Analog input module: R60ADH4, Analog input module: R60ADV8, Analog input module: R60ADI8, Analog input module: R60ADI8-HA, Analog input module: R60AD6-DG, Analog input module: R60AD8-G, Analog input module: R60AD16-G, Temperature input module: R60TD8-G, Temperature input module: R60RD8-G, Temperature control module: R60TCTRT2TT2, Temperature control module: R60TCRT4, Temperature control module: R60TCTRT2TT2BW, Temperature control module: R60TCRT4BW, Analog output module: R60DA4, Analog output module: R60DAH4, Analog output module: R60DAV8, Analog output module: R60DAI8, Analog output module: R60DA8-G, Analog output module: R60DA16-G, SIL2 analog control output module: RY40PT5B-AS, Motion module: RD78G4, Motion module: RD78G8, Motion module: RD78G16, Motion module: RD78G32, Motion module: RD78G64, Motion module: RD78GHV, Motion module: RD78GHW, Simple motion module: RD77GF4, Simple motion module: RD77GF8, Simple motion module: RD77GF16, Simple motion module: RD77GF32, Simple motion module: RD77MS2, Simple motion module: RD77MS4, Simple motion module: RD77MS8, Simple motion module: RD77MS16, Positioning module: RD75P2, Positioning module: RD75P4, Positioning module: RD75D2, Positioning module: RD75D4, High-speed counter module: RD62P2, High-speed counter module: RD62P2E, High-speed counter module: RD62D2, Channel isolated pulse input module: RD62D3 [...] |
| Mô-đun giao diện (Bán riêng) | Ethernet (built-in CC-Link IE) module: RJ71EN71, CC-Link IE Control mo dule: RJ71GP21-SX, CC-Link IE Control module: RJ71GP21S-SX, CC-Link IE Field module: RJ71GF11-T2, CC-Link IE Field Network remote head module: RJ72GF15-T2, CC-Link module: RJ61BT11, AnyWireASLINK module: RJ51AW12AL, BACnet® module: RJ71BAC96, CANopen® module: RJ71CN91, PROFINET® module: RJ71PN92, EtherNet/IP™ module: RJ71EIP91, PROFIBUS®-DP module: RJ71PB91V, DeviceNet® module: RJ71DN91, MELSECNET/H module: RJ71LP21-25, Serial communication module: RJ71C24, Serial communication module: RJ71C24-R2, Serial communication module: RJ71C24-R4 [...] |
| Mô-đun cấp nguồn (Bán riêng) | R61P, R62P, R63P, R63RP, R64P, R64RP |
| Đế cắm (Bán riêng) | Extended temperature range extension base: R610B-HT, Extended temperat ure range extension base: R68RB-HT, Extended temperature range main base: R310B-HT, Extended temperature range main base: R38RB-HT, Extended temperature range redundant power supply extension base: R68RB-HT, Extended temperature range redundant power supply main base: R65B, Extension base: R610RB, Extension base: R612B, Extension base: R65B, Extension base: R68B, Extension cable: RC06B, Extension cable: RC100B, Extension cable: RC12B, Extension cable: RC30B, Extension cable: RC50B, Main base: R310RB, Main base: R312B, Main base: R33B, Main base: R35B, Main base: R38B, Redundant power extension base: Q68RB, Redundant power main base: Q38RB, Redundant power supply extension base: R610RB, Redundant power supply main base: R310RB, RQ extension base: RQ612B, RQ extension base: RQ65B, RQ extension base: RQ68B [...] |
| Thẻ nhớ (Bán riêng) | NZ1MEM-16GBSD, NZ1MEM-2GBSD, NZ1MEM-4GBSD, NZ1MEM-8GBSD |
| Đầu nối (Bán riêng) | 40-pin connector: A6CON1, 40-pin connector: A6CON2, 40-pin connector: A6CON3, 40-pin connector: A6CON4 [...] |
| Phụ kiện khác (Bán riêng) | Battery: Q6BAT, Battery: Q7BATN, Battery: Q7BATN-SET, Blank cover: RG6 0, Blank cover: QG60, MES Interface: RD81MES96N, OPC UA server: RD81OPC96, Recorder module: RD81RC96, High-speed data logger: RD81DL96, C intelligent function module: RD55UP06-V, Flexible high-speed I/O control: RD40PD01, Energy measuring module: RE81WH, MELSOFT iQ Works: SW2DND-IQWK-E, MELSOFT GX Works3: SW1DND-GXW3-E, CW Workbench: SW1DND-CWWR-E, CW Workbench: SW1DND-CWWR-EZ, CW Workbench: SW1DND-CWWR-EVZ, CW-Sim: SW1DND-CWSIMR-EZ, CW-Sim: SW1DNC-CWSIMSAR-E, MELSOFT CW Configurator: SW1DND-RCCPU-E, MX MESInterface-R: SW1DND-RMESIF-E, MX OPC UA Module Configurator-R: SW1DND-ROPCUA-E, PX Developer monitor tool: SW1DNC-FBDQMON-E, Spring-clamp terminal block: Q6TE-18SN, Connector/terminal block conversion module: A6TBXY36, Connector/terminal block conversion module: A6TBXY54, Connector/terminal block conversion module: A6TBX70, Connector/terminal block conversion module cable: AC05TB, Connector/terminal block conversion module cable: AC10TB, Connector/terminal block conversion module cable: AC20TB, Connector/terminal block conversion module cable: AC30TB, Connector/terminal block conversion module cable: AC50TB, Connector/terminal block conversion module cable: AC80TB, Connector/terminal block conversion module cable: AC100TB, Relay terminal module: A6TE2-16SRN, Relay terminal module cable: AC06TE, Relay terminal module cable: AC10TE, Relay terminal module cable: AC30TE, Relay terminal module cable: AC50TE, Relay terminal module cable: AC100TE [...] |
| Category | Khối CPU |
| Công suất tiêu thụ | 880mA |
| Kiểu hiển thị | Hiển thị LED |
| Số điểm I/O mở rộng | 32 |
| Chức năng bảo vệ | Đang cập nhật |
| Chức năng | PLC iQ-R series, redundant function module |
| Kiểu lắp đặt | Chân cắm |
| Khối lượng tương đối | 180g |
| Chiều rộng tổng thể | 27.8mm |
| Chiều cao tổng thể | 106mm |
| Chiều sâu tổng thể | 110mm |
| Tiêu chuẩn | CE, cUL, UKCA, UL |
| Thiết bị tương thích | iQ-R series PLC |
