| Power rating | 960 W (When using the 960 W at 2-phase input, the power rating is 768 W.) |
|---|
| Output voltage | 24 VDC |
|---|
| Efficiency | 93 % typ. (Three-phase 400 VAC input) |
|---|
| Input | Rated input voltage | 380 to 480 VAC (Three-phase / two-phase) |
|---|
| Allowable input voltage variable range | 340 to 576 VAC (Two-phase)/320 to 576 VAC (Three-phase) |
|---|
| Frequency | 50/60Hz (47 to 63 Hz) |
|---|
| Rated input current | 1.6 A typ. (Three-phase 400 VAC input) |
|---|
| Leakage current | 3.5 mA max., 1.2 mA typ. (Three-phase 400 VAC input) |
|---|
| Inrush current (cold start at 25 ℃) | 6 A typ. (Three-phase 400 VAC input) |
|---|
| Output | Rated output current | 40 A |
|---|
| Output voltage variable range | 24 to 29.5 VDC With V.ADJ |
|---|
| Maximum peak current | 48 A |
|---|
| Ripple | 60 mV(p-p) max. |
|---|
| Static input variation influence | 0.5 % max. |
|---|
| Static load variation influence | 1.5 % max. |
|---|
| Ambient temperature variation influence | 0.05 %/℃ max. |
|---|
| Start up time | 500 ms typ. (Three-phase 400 VAC input) |
|---|
| Hold time | 35 ms typ. (Three-phase 400 VAC input) |
|---|
| Additional functions | Overload protection | Yes, automatic reset |
|---|
| Overvoltage protection | Yes, Shut off the input voltage and turn on the input again |
|---|
| Series operation | Yes (Up to 2 Power Supplies with external diode) |
|---|
| Parallel operation | Yes (Up to 2 Power Supplies) |
|---|
| Output indicator | Yes (LED, color: green, lighting from 80 to 90% or more of rated voltage) |
|---|
| Insulation | Dielectric strength | Between all input terminals and all output terminals: 3 kVAC for 1 min, Cut-off current: 20 mABetween all input terminals and PE terminals: 2.5 kVAC for 1 min, Cut-off current: 20 mABetween all output terminals and PE terminals: 1 kVAC for 1 min, Cut-off current: 30 mA |
|---|
| Insulation resistance | Between all output terminals and all input terminals/ PE terminals: 100 MΩ min., at 500 VDC |
|---|
| Environment | Vibration resistance | 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours |
|---|
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
|---|
| Ambient temperature (Operating) | -40 to 70 ℃ (with no freezing or condensation) |
|---|
| Ambient temperature (Storage) | -40 to 85 ℃ (with no freezing or condensation) |
|---|
| Ambient humidity (Operating) | 95 %RH max. |
|---|
| Ambient humidity (Storage) | 95 %RH max. |
|---|
| Reliability | MTBF | 135,000 hours min. |
|---|
| Construction | Construction | Covered type |
|---|
| Connection | Terminal blocks |
|---|
| Terminal type | Rod terminal |
|---|

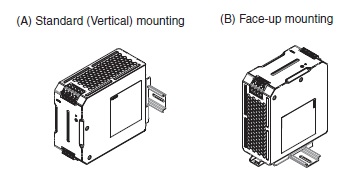

| Mounting | DIN track mounting |
|---|
| Degree of protection | IP20, EN/IEC 60529 |
|---|
| Weight (Main) | 2000 g max. |
|---|
