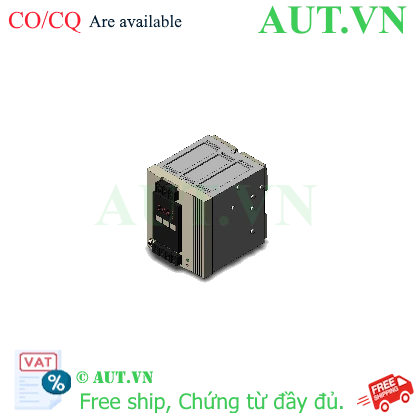

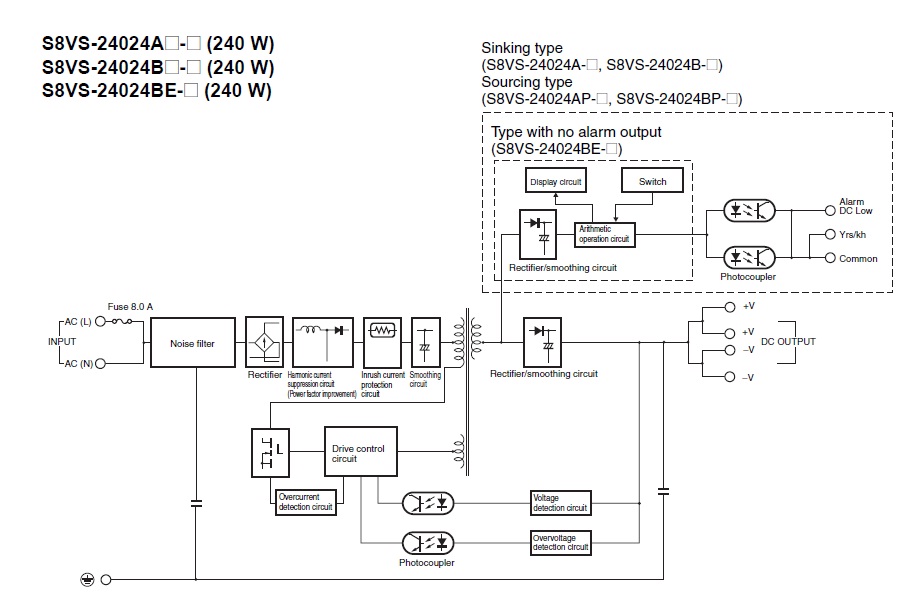

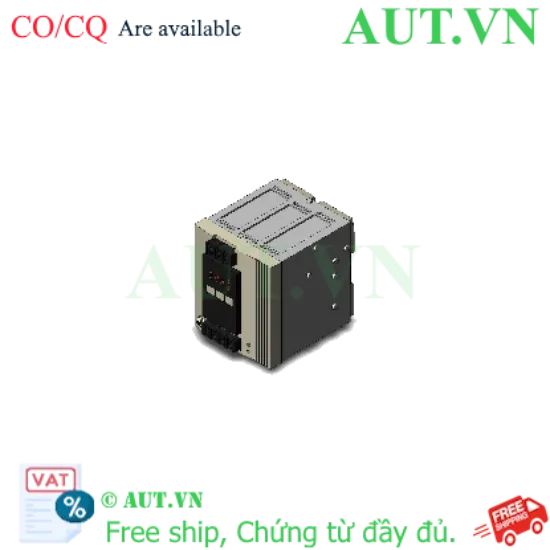

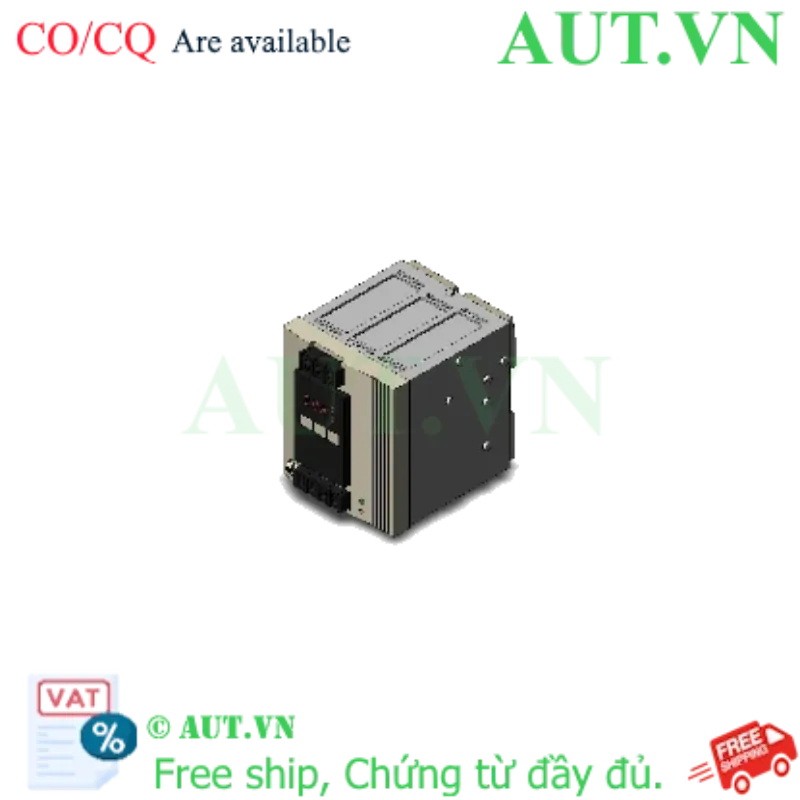

| Power rating | 240 W |
|---|
| Output voltage | 24 VDC |
|---|
| Efficiency | 85 % typ. (at 100 VAC input)88 % typ. (at 200 VAC input) |
|---|
| Input | Rated input voltage | 100 to 240 VAC |
|---|
| Allowable input voltage variable range | 85 to 264 VAC80 to 370 VDC |
|---|
| Frequency | 50/60Hz (47 to 63 Hz) |
|---|
| Rated input current | 3.8 A max., 2.9 A typ. (at 100 VAC input)2.0 A max., 1.5 A typ. (at 200 VAC input) |
|---|
| Power factor | 0.9 min. |
|---|
| Leakage current | 0.5 mA max. (at 100 VAC input)1.0 mA max. (at 200 VAC input) |
|---|
| Inrush current (cold start at 25 ℃) | 17.5 A max., 14 A typ. (at 100 VAC input)35 A max., 28 A typ. (at 200 VAC input) |
|---|
| Output | Rated output current | 10 A |
|---|
| Output voltage variable range | -10 to +15 % With V.ADJ |
|---|
| Ripple | 160 mV max. |
|---|
| Static input variation influence | 0.5 % max. (at 100% load) |
|---|
| Static load variation influence | 1.5 % max. (at rated input, 0 to 100% load) |
|---|
| Ambient temperature variation influence | 0.05 %/℃ max. |
|---|
| Start up time | 510 ms typ. (at 100 VAC input)510 ms typ. (at 200 VAC input) |
|---|
| Hold time | 46 ms typ. (at 100 VAC input)46 ms typ. (at 200 VAC input) |
|---|
| Additional functions | Overload protection | Yes, automatic reset |
|---|
| Overvoltage protection | Yes, Shut off the input voltage and turn on the input again |
|---|
| Series operation | Yes (Up to 2 Power Supplies with external diode) |
|---|
| Parallel operation | No (However, backup operation is possible, external diodes required.) |
|---|
| Output indicator | Yes (color: green) |
|---|
| Output voltage indication | Yes (switching) |
|---|
| Output current indication | Yes (switching) |
|---|
| Peak-hold current indication | Yes (switching) |
|---|
| Total run time monitor | Output: Yes (Transistor output, 30 VDC max., 50 mA max)Indication: Yes (switching) |
|---|
| Undervoltage alarm | Output: Yes (Transistor output, 30 VDC max., 50 mA max)Indication: Yes (switching) |
|---|
| Insulation | Dielectric strength | Between all input terminals and PE terminals: 2 kVAC for 1 min, Detection current: 20 mABetween all input terminals and all output terminals/alarm outputs: 3 kVAC for 1 min, Detection current: 20 mABetween all output terminals/alarm outputs and all PE terminals: 1 kVAC for 1 min, Detection current: 20 mABetween all output terminals and all alarm outputs: 500 VAC for 1 min, Detection current: 20 mA |
|---|
| Insulation resistance | Between all output terminals/alarm outputs and all input terminals/PE terminals: 100 MΩ min., at 500 VDC |
|---|
| Environment | Vibration resistance | 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours |
|---|
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
|---|
| Ambient temperature (Operating) | -10 to 60 ℃ |
|---|
| Ambient temperature (Storage) | -25 to 65 ℃ |
|---|
| Ambient humidity (Operating) | 25 to 85 % |
|---|
| Ambient humidity (Storage) | 25 to 90 % |
|---|
| Reliability | Life expectancy | 10 years (at rated input, a load rate of 50% load, under the temperature of 40 ℃, standard mounting) |
|---|

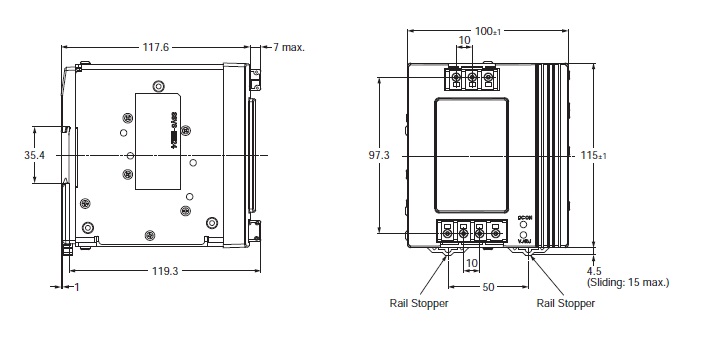

| Construction | Construction | Covered type |
|---|
| Connection | Terminal blocks |
|---|
| Terminal type | Screwless terminal |
|---|
| Mounting | DIN track mounting |
|---|
| Attachment | Terminal block cover |
|---|
| Weight (Main) | 1150 g max. |
|---|
