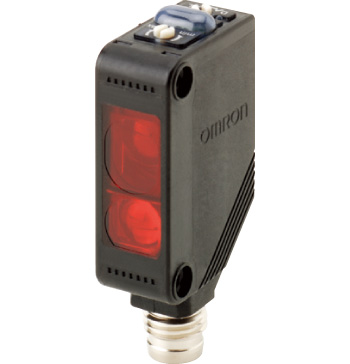

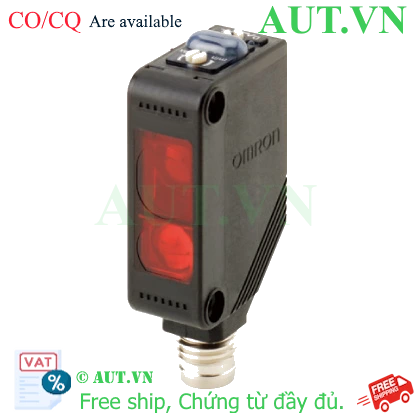

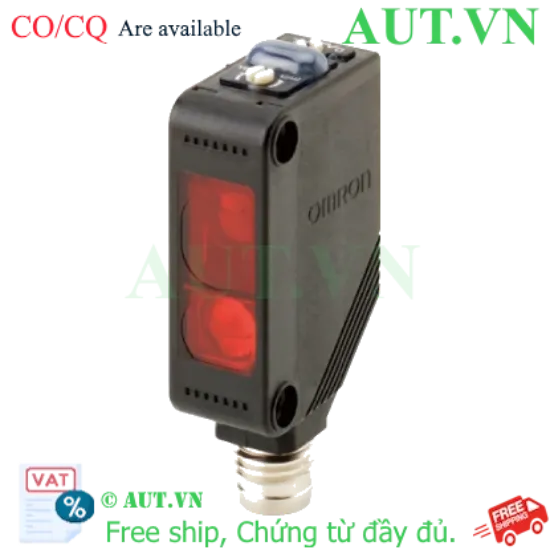

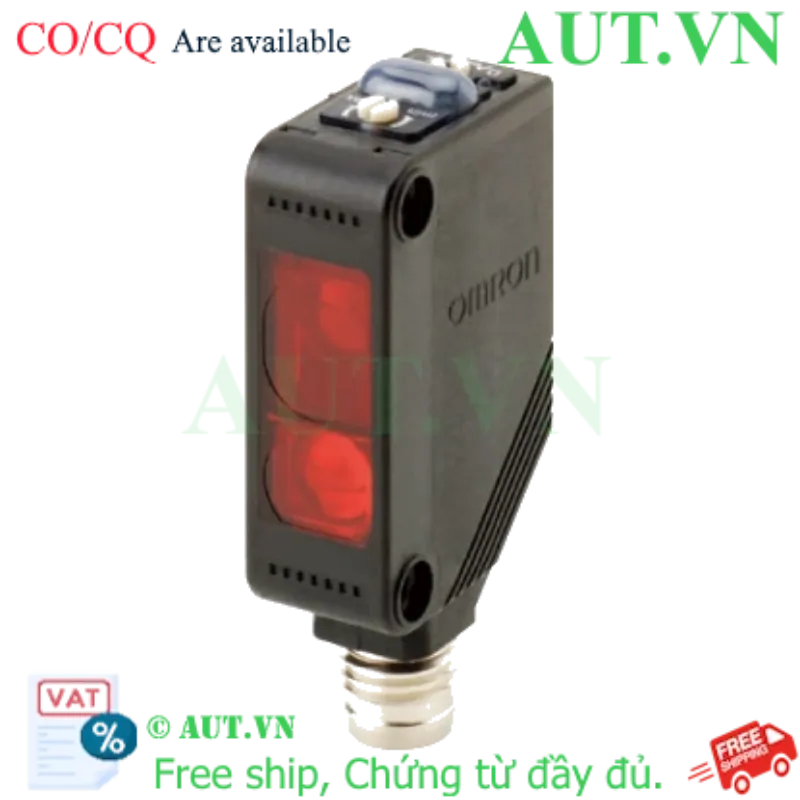

| Model | E3Z-LS86 |
|---|
| Shape | Square type |
|---|
| Sensing method | Distance-setting |
|---|
| Sensing distance | 20 to 200 mm |
|---|
| Setting range | White paper 100 x 100 mm: 40 to 200 mmBlack paper 100 x 100 mm: 40 to 160 mm |
|---|
| Detection range | BGS: 20 mm to Setting distance (White paper, Black paper 100 x 100 mm)FGS: Setting distance to 200 mm min. (White paper 100 x 100 mm), Setting distance to 160 mm min. (Black paper 100 x 100 mm) |
|---|
| Differential distance | 10% max. of setting distance |
|---|
| Reflectivity characteristic (black-white error) | 10% max. of setting distance |
|---|
| Light source | Red LED (670 nm) |
|---|
| Power supply voltage | 12 to 24 VDC±10% ripple (p-p) 10% max. |
|---|
| Current consumption | 30 mA max. |
|---|

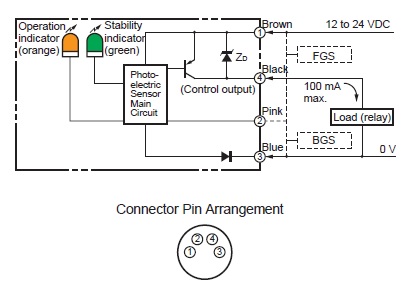

| Control output | PNP open collector26.4 VDC max.100 mA max.Residual voltage: 1 V max. |
|---|
| Operation mode | Light-ON/Dark-ON selectable |
|---|
| Protective circuit | Output short-circuit protection, Power supply reverse polarity protection |
|---|
| Response time | Operate or reset: 1 ms max. |
|---|
| Sensitivity setting | 5-turn endless adjustment |
|---|
| Ambient illuminance | Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. |
|---|
| Ambient temperature range (Operating) | -25 to 55 ℃ (with no freezing or condensation) |
|---|
| Ambient temperature range (Storage) | -40 to 70 ℃ (with no freezing or condensation) |
|---|
| Ambient humidity range (Operating) | 35 to 85 % (with no condensation) |
|---|
| Ambient humidity range (Strage) | 35 to 95 % (with no condensation) |
|---|
| Insulation resistance | 20 MΩ min. (500 VDC megger) |
|---|
| Dielectric strength | 1000 VAC 50/60 Hz 1 min |
|---|
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
|---|
| Shock resistance | Destruction: 500 m/s2 3 times each in X, Y and Z directions |
|---|
| Degree of protection | IEC: IP67 |
|---|

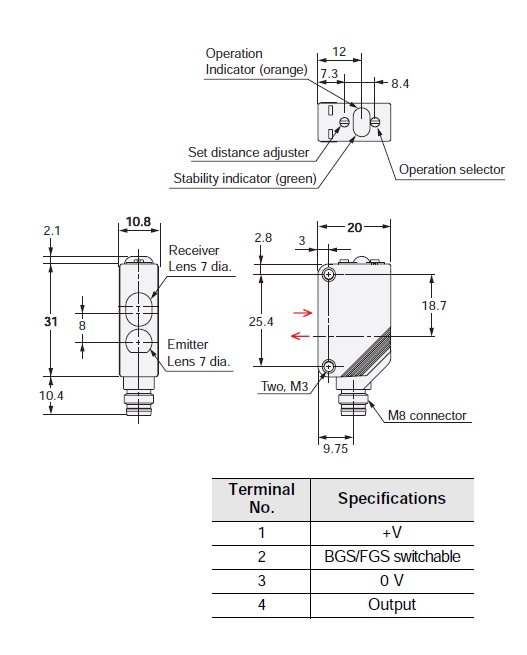

| Connection method | M8 connector models |
|---|
| Indicator | Operation indicator (orange), Stability indicator (green) |
|---|
| Weight | Package: Approx. 20 g |
|---|
| Accessories | Instruction manual |
|---|
| Material | Case: Polybutylene terephthalate (PBT)Lens: Denatured Polyarylate |
|---|
