| Model | E3S-CL1 2M |
|---|
| Shape | Square type |
|---|
| Sensing method | Distance-setting |
|---|
| Sensing distance | White paper 200 x 200 mm, setting distance: 200 mm: 5 to 200 mm |
|---|
| Setting range | White paper 200 x 200 mm: 40 to 200 mm |
|---|
| Differential distance | 2% max. of setting distance |
|---|
| Reflectivity characteristic (black-white error) | 2% max. of setting distance |
|---|
| Light source | Red LED (660 nm) |
|---|
| Power supply voltage | 10 to 30 VDC ripple (p-p) 10% included |
|---|
| Current consumption | 35 mA max. |
|---|

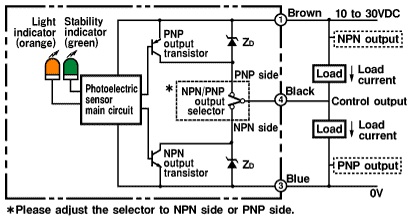

| Control output | NPN/PNP open collector (selectable)30 VDC max.100 mA max.Residual voltage: 1.2 V max. (NPN output)Residual voltage: 2 V max. (PNP output) |
|---|
| Operation mode | Light-ON/Dark-ON selectable |
|---|
| Protective circuit | Output short-circuit protection, Power supply reverse polarity protection |
|---|
| Response time | Operate or reset: 1 ms max. |
|---|
| Sensitivity setting | 6-turn endless adjustment (with indicator) |
|---|
| Ambient illuminance | Incandescent lamp: 5,000 lx max.Sunlight: 10,000 lx max. |
|---|
| Ambient temperature range (Operating) | -25 to 55 ℃ (with no freezing or condensation) |
|---|
| Ambient temperature range (Storage) | -40 to 70 ℃ (with no freezing or condensation) |
|---|
| Ambient humidity range (Operating) | 35 to 85 % (with no condensation) |
|---|
| Ambient humidity range (Strage) | 35 to 95 % (with no condensation) |
|---|
| Insulation resistance | 20 MΩ min. (500 VDC megger) |
|---|
| Dielectric strength | 1000 VAC 50/60 Hz 1 min |
|---|
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
|---|
| Shock resistance | Destruction: 500 m/s2 3 times each in X, Y and Z directions |
|---|
| Degree of protection | IEC: IP67NEMA: 6P (indoors only) |
|---|
| Connection method | Pre-wired models (Cable length 2 m) |
|---|
| Indicator | Light indicator (orange), Stability indicator (green) |
|---|
| Weight | Package: Approx. 170 g |
|---|
| Accessories | Instruction manual, Mounting bracket, Adjustment driver, Hexagon bolt M4 x 12 (with Spring washers, Flat washers) |
|---|
| Material | Case: Zinc diecastLens: Methacrylate resinCover: Polyether sulfoneMounting Bracket: Stainless steel (SUS304) |
|---|
