| Shape | Cylinder type |
|---|
| Sensing method | Diffuse-reflective |
|---|
| Sensing distance | White paper 300 x 300 mm: 100 mm |
|---|
| Spot size | 40 x 45 mm (sensing distance: 100 mm) |
|---|
| Differential distance | 20% max. |
|---|
| Light source | Red LED (624 nm) |
|---|
| Power supply voltage | 10 to 30 VDC±10% ripple (p-p) 10% included |
|---|
| Current consumption | 25 mA max. |
|---|

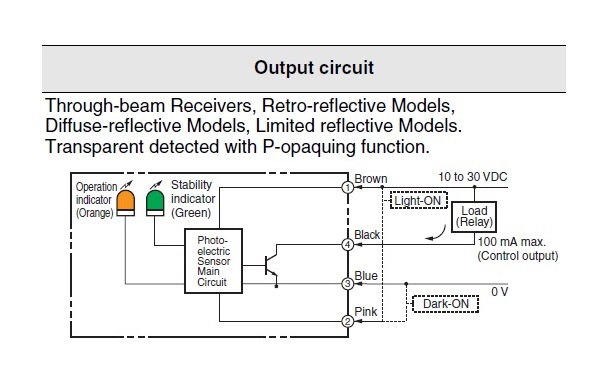

| Control output | NPN open collector30 VDC max.100 mA max.Residual voltage: 3 V max. |
|---|
| Operation mode | Light-ON/Dark-ON selectable |
|---|
| Protective circuit | Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection |
|---|
| Response time | Operate or reset: 0.5 ms max. |
|---|
| Sensitivity setting | Single-turn adjustment |
|---|
| Ambient illuminance | Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. |
|---|
| Ambient temperature range (Operating) | -25 to 55 ℃ (with no freezing or condensation) |
|---|
| Ambient temperature range (Storage) | -40 to 70 ℃ (with no freezing or condensation) |
|---|
| Ambient humidity range (Operating) | 35 to 85 % (with no condensation) |
|---|
| Ambient humidity range (Strage) | 35 to 95 % (with no condensation) |
|---|
| Insulation resistance | 20 MΩ min. (500 VDC megger) |
|---|
| Dielectric strength | 1000 VAC 50/60 Hz 1 min |
|---|
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
|---|
| Shock resistance | Destruction: 500 m/s2 3 times each in X, Y and Z directions |
|---|
| Degree of protection | IEC: IP67DIN40050-9: IP69K |
|---|
| Connection method | Pre-wired models (Cable length 2 m) |
|---|
| Indicator | Operation indicator (orange), Stability indicator (green) |
|---|
| Weight | Package: Approx. 60 gMain Unit: Approx. 50 g |
|---|
| Accessories | Instruction sheet, M18 nuts |
|---|
| Material | Case: ABSLens: Methacrylate resin (PMMA)Display: Methacrylate resin (PMMA)Adjustment: POMNut: POM |
|---|
