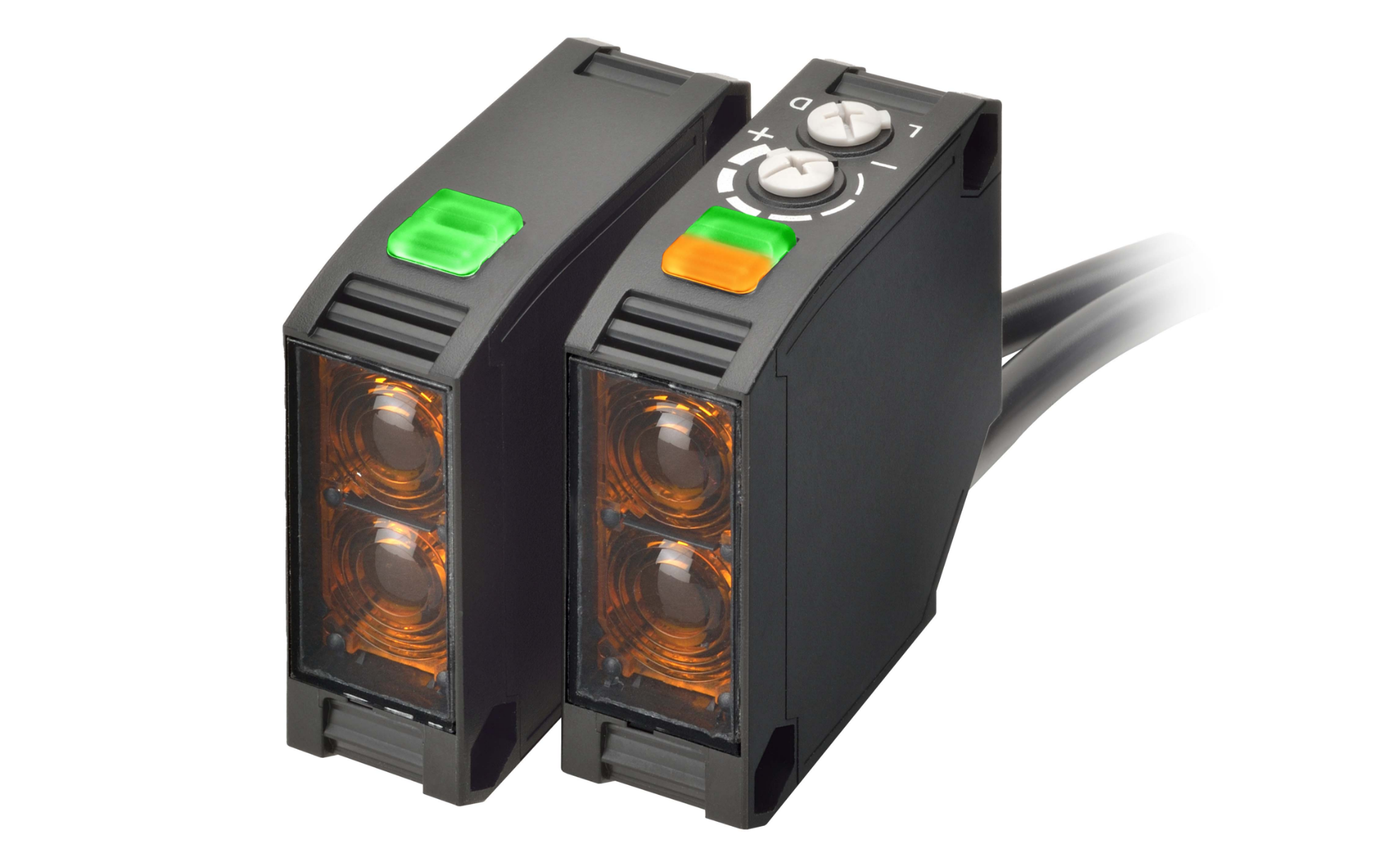

| Model | E3JK-TN11 2M |
|---|
| Shape | Square type |
|---|
| Sensing method | Through-beam type |
|---|
| Sensing distance | 40 m |
|---|
| Standard sensing object | Opaque: 17 mm dia. min. |
|---|
| Directional angle | Emitter: 3 ° min.Receiver: 3 ° min. |
|---|
| Light source | Red LED (624 nm) |
|---|
| Power supply voltage | 10 to 30 VDC ripple (p-p) 10% included |
|---|
| Current consumption | Emitter: 25 mA max.Receiver: 15 mA max. |
|---|

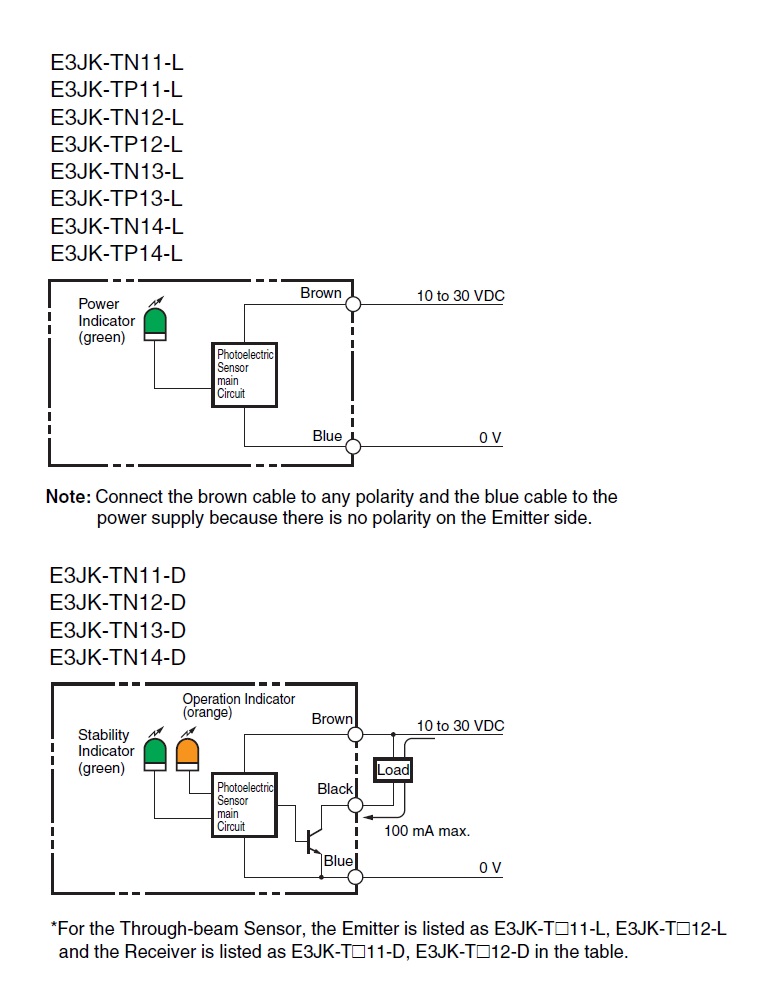

| Control output | NPN open collector30 VDC max.100 mA max.Residual voltage: 3 V max. |
|---|
| Operation mode | Light-ON/Dark-ON selectable |
|---|
| Protective circuit | Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection |
|---|
| Response time | 1 ms max. |
|---|
| Sensitivity setting | Single-turn adjustment (Receiver only) |
|---|
| Ambient illuminance | Incandescent lamp: 3,000 lxSunlight: 11,000 lx |
|---|
| Ambient temperature range (Operating) | -25 to 55 ℃ (with no freezing or condensation) |
|---|
| Ambient temperature range (Storage) | -40 to 70 ℃ (with no freezing or condensation) |
|---|
| Ambient humidity range (Operating) | 35 to 85 % (with no condensation) |
|---|
| Ambient humidity range (Strage) | 35 to 95 % (with no condensation) |
|---|
| Insulation resistance | 20 MΩ min. (500 VDC megger) |
|---|
| Dielectric strength | 1500 VAC 50/60 Hz 1 min |
|---|
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 hMalfunction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
|---|
| Shock resistance | Destruction: 500 m/s2 3 times each in X, Y and Z directionsMalfunction: 500 m/s2 3 times each in X, Y and Z directions |
|---|
| Degree of protection | IEC: IP64 |
|---|
| Connection method | Pre-wired models (Cable length 2 m) |
|---|
| Indicator | Operation indicator (orange), Stability indicator (green), Power indicator (green) |
|---|
| Weight | Package: Approx. 300 g |
|---|
| Accessories | Instruction manual |
|---|
| Material | Case: ABSLens: Methacrylate resinDisplay: Methacrylate resinAdjustment: POMCable: Polyvinyl chloride (PVC) |
|---|
