| Model | E3JM-DS70M4T |
|---|
| Shape | Square type |
|---|
| Sensing method | Diffuse-reflective |
|---|
| Sensing distance | White paper 200 x 200 mm: 700 mm |
|---|
| Differential distance | 20% max. of sensing distance |
|---|
| Light source | Infrared LED (940 nm) |
|---|
| Power supply voltage | 100 to 240 VAC±10% 50/60 Hz24 to 240 VDC±10% ripple (p-p) 10% max. |
|---|
| Power consumption | 2 W max. |
|---|

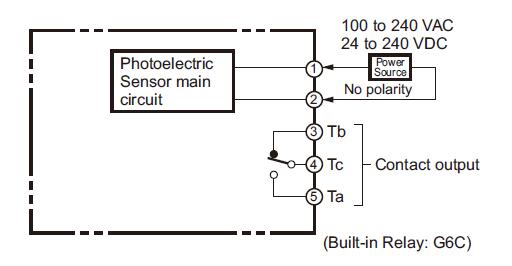

| Control output | Relay output (SPDT)250 VAC 3 A (cosφ= 1) max.5 VDC 10 mA min. |
|---|
| Life expectancy (relay output) | Electrical: 100 thousand times or more (switching frequency 1800 times/hour)Mechanical: 50 million times or more (switching frequency 18000 times/hour) |
|---|
| Operation mode | Light-ON/Dark-ON selectable |
|---|
| Response time | Operate or reset: 30 ms max. |
|---|
| Sensitivity setting | Single-turn adjustment |
|---|
| Timer function | Select from ON-delay, OFF-delay, or One-shot delay0.1 to 5 s |
|---|
| Ambient illuminance | Incandescent lamp: 3,000 lx max. |
|---|
| Ambient temperature range (Operating) | -25 to 55 ℃ (with no freezing or condensation) |
|---|
| Ambient temperature range (Storage) | -30 to 70 ℃ (with no freezing or condensation) |
|---|
| Ambient humidity range (Operating) | 45 to 85 % (with no condensation) |
|---|
| Ambient humidity range (Strage) | 35 to 95 % (with no condensation) |
|---|
| Insulation resistance | 20 MΩ min. (500 VDC megger) |
|---|
| Dielectric strength | 2000 VAC 50/60 Hz 1 min |
|---|
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 hMalfunction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
|---|
| Shock resistance | Destruction: 500 m/s2 3 times each in X, Y and Z directionsMalfunction: 100 m/s2 3 times each in X, Y and Z directions |
|---|
| Degree of protection | IEC: IP66 |
|---|
| Connection method | Terminal block models |
|---|
| Indicator | Operation indicator (red) |
|---|
| Weight | Package: Approx. 160 g |
|---|
| Accessories | Instruction manual, Mounting bracket, Nut, Terminal protection cover, One set of cable connection nuts |
|---|
| Material | Case: ABSLens: Methacrylate resinCover: PolycarbonateMounting Bracket: Iron |
|---|
