| Model | E3S-R11 2M |
|---|
| Shape | Square type |
|---|
| Sensing method | Retro-reflective with M.S.R. function |
|---|
| Sensing distance | When using the E39-R1: 0.1 to 1 m |
|---|
| Standard sensing object | Opaque: 75 mm dia. min.thickness: 0.7 mm, LCD glass plate |
|---|
| Directional angle | 3 to 10 ° |
|---|
| Light source | Red LED (660 nm) |
|---|
| Power supply voltage | 10 to 30 VDC ripple (p-p) 10% included |
|---|
| Current consumption | 30 mA max. |
|---|

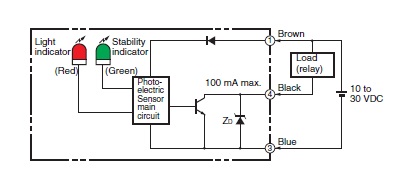

| Control output | NPN open collector30 VDC max.100 mA max.Residual voltage: 1 V max. |
|---|
| Operation mode | Light-ON/Dark-ON selectable |
|---|
| Protective circuit | Output short-circuit protection, Power supply reverse polarity protection |
|---|
| Response time | Operate or reset: 1 ms max. |
|---|
| Sensitivity setting | 2-turn endless adjustment |
|---|
| Ambient illuminance | Incandescent lamp: 5,000 lx max.Sunlight: 10,000 lx max. |
|---|
| Ambient temperature range (Operating) | 0 to 40 ℃ (with no freezing or condensation) |
|---|
| Ambient temperature range (Storage) | -40 to 70 ℃ (with no freezing or condensation) |
|---|
| Ambient humidity range (Operating) | 35 to 85 % (with no condensation) |
|---|
| Ambient humidity range (Strage) | 35 to 95 % (with no condensation) |
|---|
| Insulation resistance | 20 MΩ min. (500 VDC megger) |
|---|
| Dielectric strength | 1000 VAC 50/60 Hz 1 min |
|---|
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
|---|
| Shock resistance | Destruction: 500 m/s2 3 times each in X, Y and Z directions |
|---|
| Degree of protection | IEC: IP67 |
|---|
| Connection method | Pre-wired models (Cable length 2 m) |
|---|
| Indicator | Light indicator (red), Stability indicator (green) |
|---|
| Weight | Package: Approx. 110 g |
|---|
| Accessories | Instruction manual, Mounting bracket (with screws), Sensitivity adjustment driver, Reflector |
|---|
| Material | Case: Polybutylene terephthalate (PBT)Lens: Denatured PolyarylateMounting Bracket: Stainless steel (SUS304) |
|---|
