| Type | Sensor communications unit model |
|---|
| Light source | Red, 4-element LED (Emission wave length: 625 nm) |
|---|
| Power supply voltage | Supplied from the connector through the Sensor Communications Unit |
|---|
| Power consumption | Normal mode: 920 mW max. (at power supply voltage of 24 V, current consumption: 38 mA max.)Eco ON: 680 mW max. (at power supply voltage of 24 V, current consumption: 26 mA max.)Eco LO: 800 mW max. (at power supply voltage of 24 V, current consumption: 33 mA max.) |
|---|
| Operation mode | Light-ON/Dark-ON selectable |
|---|
| Response time | Operate | Standard mode: 1 msHigh-speed mode (HS): 250 µsSuper-high-speed mode (SHS): 32 µsGiga-power Mode (GIGA): 16 ms |
|---|
| Reset | Standard mode: 1 msHigh-speed mode (HS): 250 µsSuper-high-speed mode (SHS): 32 µsGiga-power Mode (GIGA): 16 ms |
|---|
| Protective circuit | Output short-circuit protectionPower supply reverse polarity protection |
|---|
| Indicator | Digital display: 7-segment displays (Sub digital display: green, Main digital display: white)Display orientation: Switchable between normal and reversedIndicators: OUT indicator (Orange), L/D indicator (Orange), ST indicator (Blue), DPC indicator (Green) |
|---|
| Number of mutual interference prevention | 10 units (can not be used in the Super-high-speed Mode) |
|---|
| Function | Auto power control, Dynamic power control, Timer, ZERO reset, Resetting setting, ECO mode, BANK switch, Sensor OFF setting, Power tuning, Output 1 setting, Output 2 setting, Hysteresis setting |
|---|
| Sensitivity setting | Smart Tuning (2-point tuning, full auto tuning, position tuning, maximum sensitivity tuning, power tuning, or percentage tuning (-99% to 99%)) or manual adjustment |
|---|
| Ambient illuminance | Receiver side, Incandescent lamp: 20000 lux max. Sunlight: 30000 lux max. |
|---|
| Ambient temperature range (Operating) | Groups of 1 to 2 units: 0 to 55 ℃Groups of 3 to 10 units: 0 to 50 ℃Groups of 11 to 16 units: 0 to 45 ℃Groups of 17 to 30 units: 0 to 40 ℃(with no freezing or condensation) |
|---|
| Ambient temperature range (Storage) | -30 to 70 ℃ (with no freezing or condensation) |
|---|
| Ambient humidity range (Operating) | 35 to 85 % (with no condensation) |
|---|
| Ambient humidity range (Strage) | 35 to 85 % (with no condensation) |
|---|
| Insulation resistance | 20 MΩ or higher (500 VDC megger) |
|---|
| Dielectric strength | 1,000 VAC 50/60 Hz 1 min |
|---|
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
|---|
| Shock resistance | Destruction: 150 m/s2 3 times each in X, Y, and Z directions |
|---|
| Connection method | Connector for sensor communications unit |
|---|
| Mass | Main Unit: Approx. 25 gPackage: Approx. 65 g |
|---|

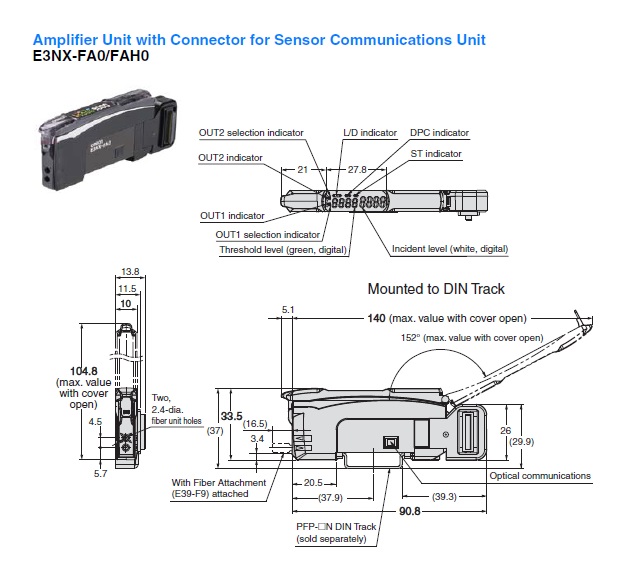

| Mounting method | DIN Track、Mounting Bracket |
|---|
| Material | Case: Polycarbonate (PC)Cover: Polycarbonate (PC) |
|---|
| Accessories | Instruction manual |
|---|
