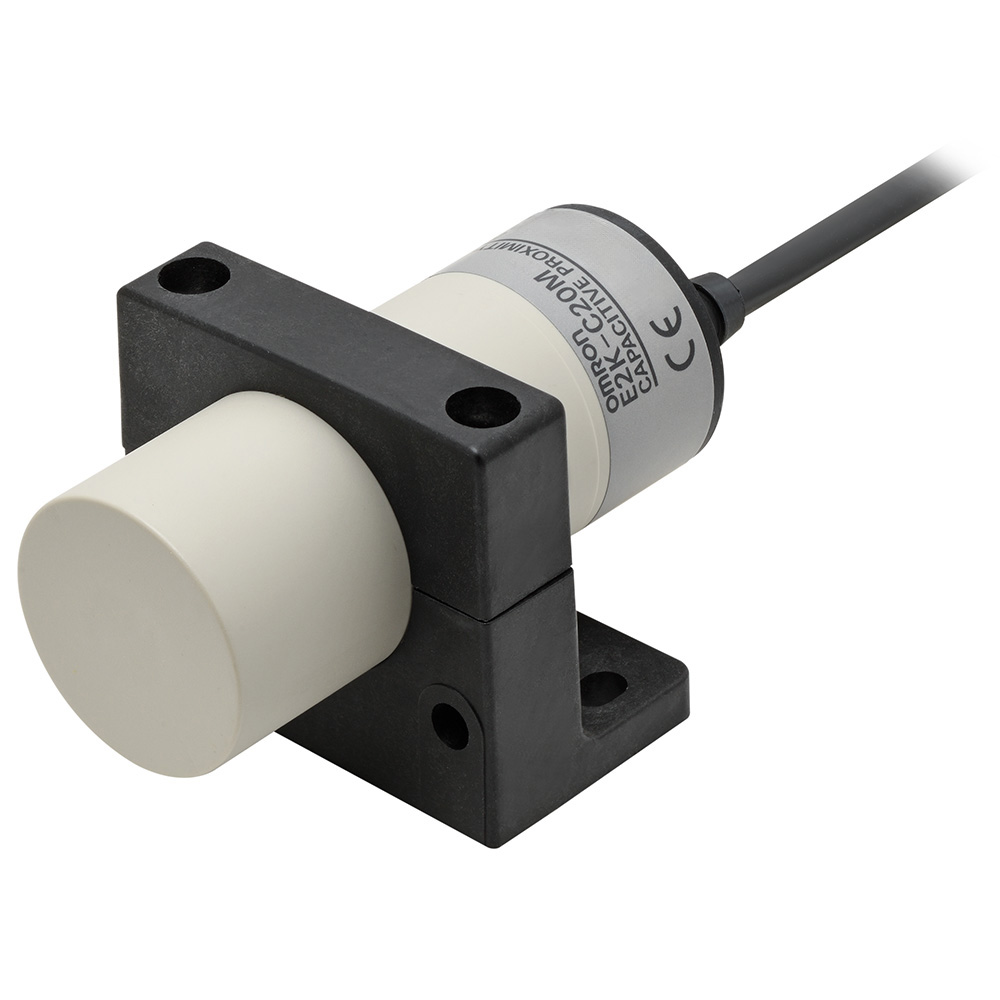

| Model | E2K-C20MT2 2M |
|---|

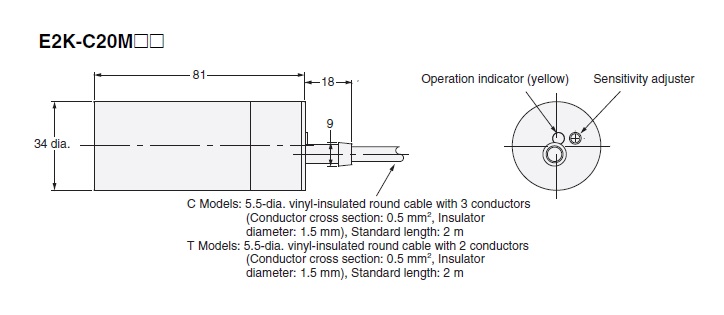

| Sensing head size | 34 dia. |
|---|
| Type | Noise immunity type, Cylinder type, Capacitive type, Unshielded |
|---|

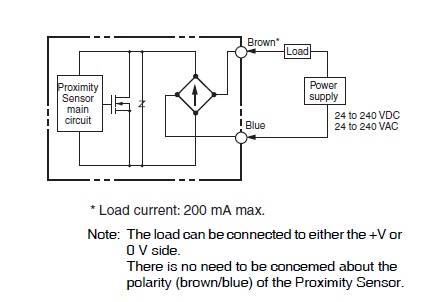

| Power source | AC/DC 2-wire models |
|---|
| Sensing distance | 20 mm |
|---|
| Setting distance | 3 to 20 mm |
|---|
| Differential distance | 15% max. of sensing distance (when adjusted to 20 mm ±10% with standard object) |
|---|
| Sensing object | Conductor and dielectrics |
|---|
| Standard sensing object | With grounded metal 50 x 50 x 1 mm |
|---|
| Response frequency | DC: 40 Hz (Average value)AC: 25 Hz (Average value) |
|---|
| Power supply voltage | 24 to 240 VDC24 to 240 VAC |
|---|
| Operating voltage range | 20 to 250 VDC20 to 250 VAC |
|---|
| Leakage current | at 24 VDC: 1.5 mA max.at 110 VAC 50/60 Hz: 1.7 mA max.at 250 VAC 50/60 Hz: 2.5 mA max. |
|---|
| Control output (Switching capacity) | Resistive load: 5 to 200 mA |
|---|
| Control output (Residual voltage) | 10 V max.AC8 V max.DC |
|---|
| Indicator | Operation indicator (yellow) |
|---|
| Operation mode | NC |
|---|
| Sensitivity setting | Sensitivity adjuster |
|---|
| Ambient temperature (Operating) | -25 to 70 ℃ |
|---|
| Ambient temperature (Storage) | -25 to 70 ℃ |
|---|
| Ambient humidity (Operating) | 35 to 95 % |
|---|
| Ambient humidity (Storage) | 35 to 95 % |
|---|
| Temperature influence | ±15% max. of sensing distance at 23 ℃ in the temperature range of −10 to 55 ℃±25% max. of sensing distance at 23 ℃ in the temperature range of −25 to 70 ℃ |
|---|
| Voltage influence | ±2% max. of sensing distance at rated voltage in the rated voltage ±15% range |
|---|
| Insulation resistance | Between charged parts and the case: 50 MΩ min. at 500 VDC |
|---|
| Dielectric strength | Between charged parts and the case: 1,500 VAC 50/60 Hz 1 min |
|---|
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
|---|
| Shock resistance | Destruction: 500 m/s2 10 times each in X, Y, and Z directions |
|---|
| Degree of protection | IEC: IP65 |
|---|
| Connection method | Pre-wired models (2 m) |
|---|
| Weight | Package: Approx. 240 g |
|---|
| Material | Case: Polybutylene terephthalate (PBT)Sensing surface: Polybutylene terephthalate (PBT) |
|---|
| Accessories | Instruction manual, Dedicated fixture, M4 screws |
|---|
