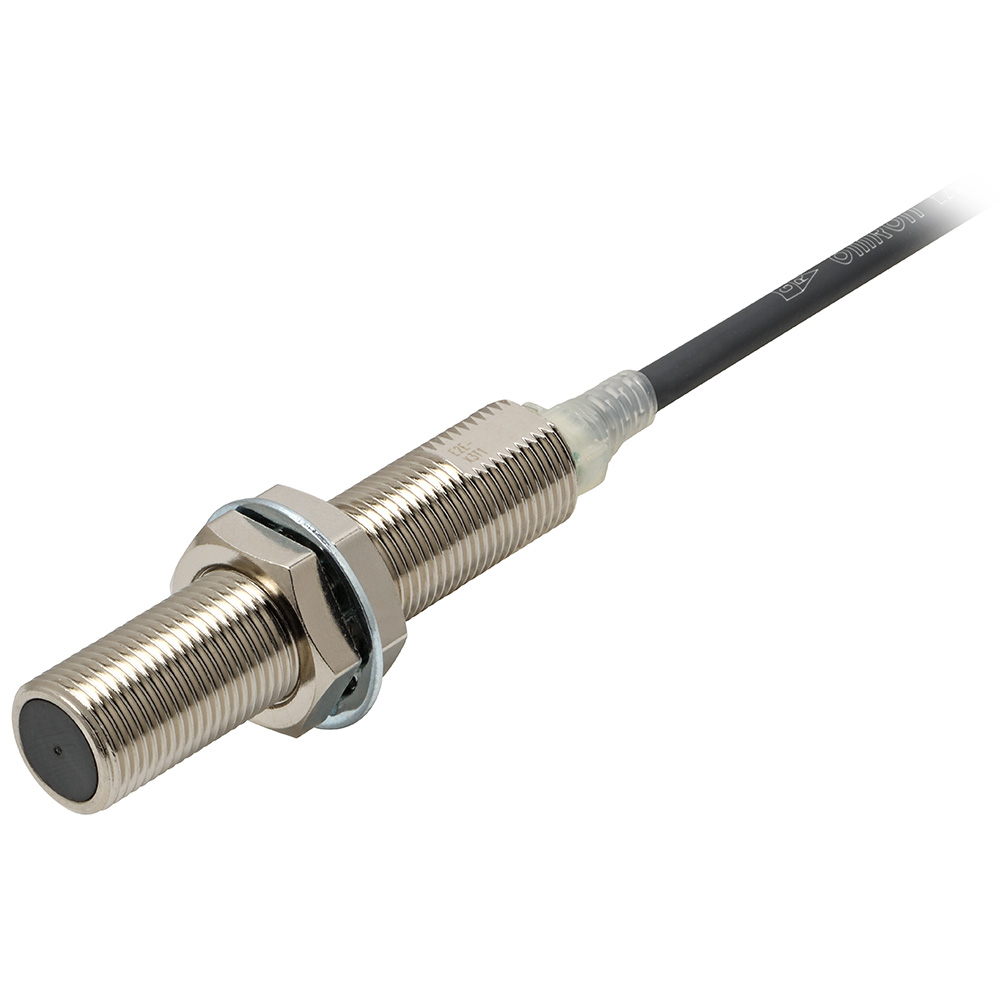

| Model | E2E-X3T1 2M |
|---|
| Sensing head size | M12 |
|---|
| Type | Cylinder type (with screw), Shielded |
|---|

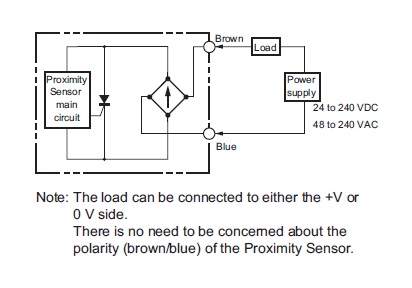

| Power source | AC/DC 2-wire models |
|---|
| Sensing distance | 3 mm ±10% |
|---|
| Setting distance | 0 to 2.4 mm |
|---|
| Differential distance | 10% max. of sensing distance |
|---|
| Sensing object | Ferrous metal (Sensitivity lowers with non-ferrous metals.) |
|---|
| Standard sensing object | Iron 12 x 12 x 1 mm |
|---|
| Response frequency | DC: 1000 Hz (Average value)AC: 25 Hz (Average value) |
|---|
| Power supply voltage | 24 to 240 VDC48 to 240 VAC |
|---|
| Operating voltage range | 20 to 264 VDC40 to 264 VAC |
|---|
| Leakage current | at AC: 2 mA max.at DC: 1 mA max. |
|---|
| Control output (Switching capacity) | 5 to 100 mA |
|---|
| Control output (Residual voltage) | 6 V max.DC (Load current 100 mA with cable length of 2 m)10 V max.AC (Load current 5 mA with cable length of 2 m) |
|---|
| Indicator | Operation indicator (red), Operation setting indicator (green) |
|---|
| Operation mode | NO |
|---|
| Protective circuit | Output short-cut protection (at 20 to 40 VDC)Surge suppressor |
|---|
| Ambient temperature (Operating) | -25 to 70 ℃(with no freezing or condensation) |
|---|
| Ambient temperature (Storage) | -40 to 85 ℃(with no freezing or condensation) |
|---|
| Ambient humidity (Operating) | 35 to 95 % (with no condensation) |
|---|
| Ambient humidity (Storage) | 35 to 95 % (with no condensation) |
|---|
| Temperature influence | ±10% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃ |
|---|
| Voltage influence | ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range |
|---|
| Insulation resistance | Between charged parts and the case: 50 MΩ min. at 500 VDC |
|---|
| Dielectric strength | Between charged parts and the case: 4,000 VAC 50/60 Hz 1 min |
|---|
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
|---|
| Shock resistance | Destruction: 1000 m/s2 10 times each in X, Y, and Z directions |
|---|
| Degree of protection | IEC: IP67Company standard: Oil-proof |
|---|

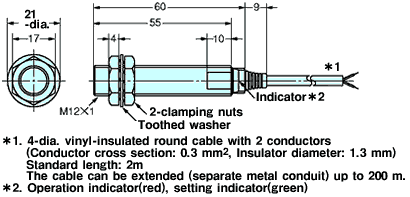

| Connection method | Pre-wired models (2 m) |
|---|
| Weight | Package: Approx. 80 g |
|---|
| Material | Case: Brass nickel platingSensing surface: Polybutylene terephthalate (PBT)Cable: PVCClamping nuts: Brass nickel platingToothed washers: Iron zinc plating |
|---|
| Accessories | Instruction manual, Clamping nuts, Toothed washers |
|---|
