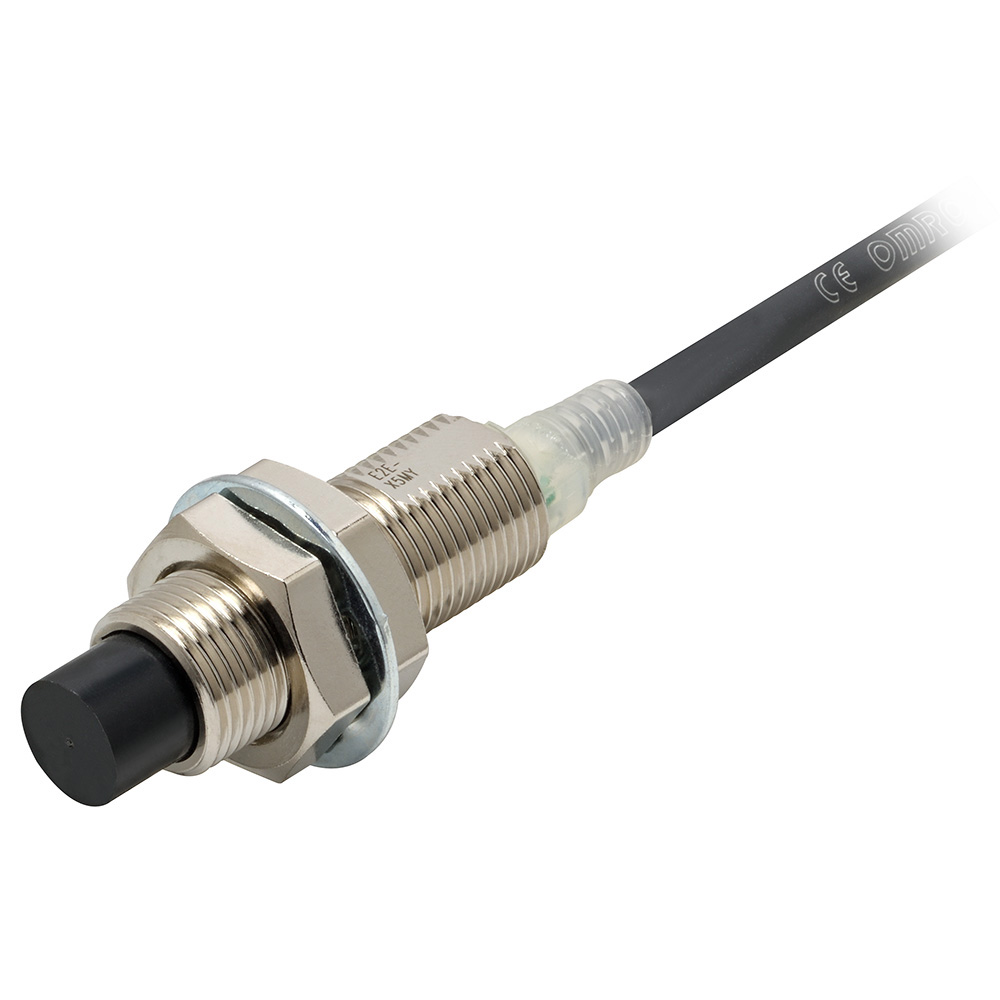

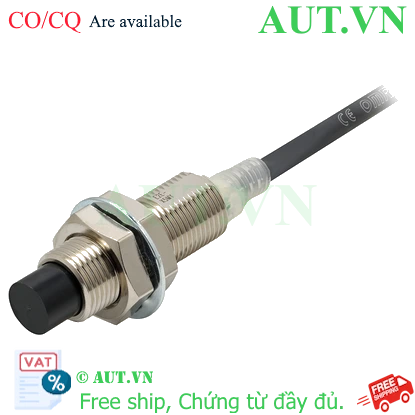

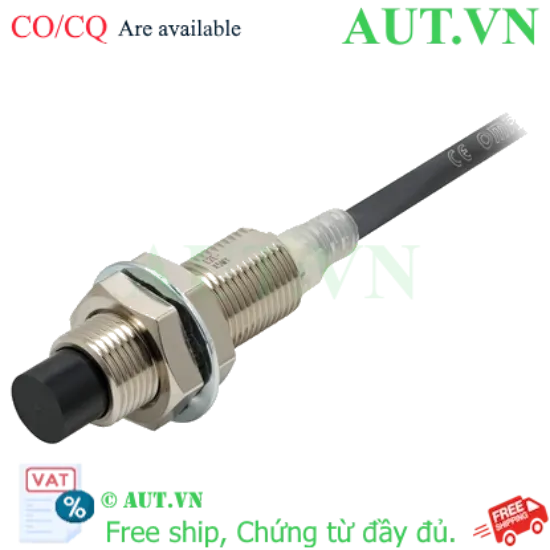

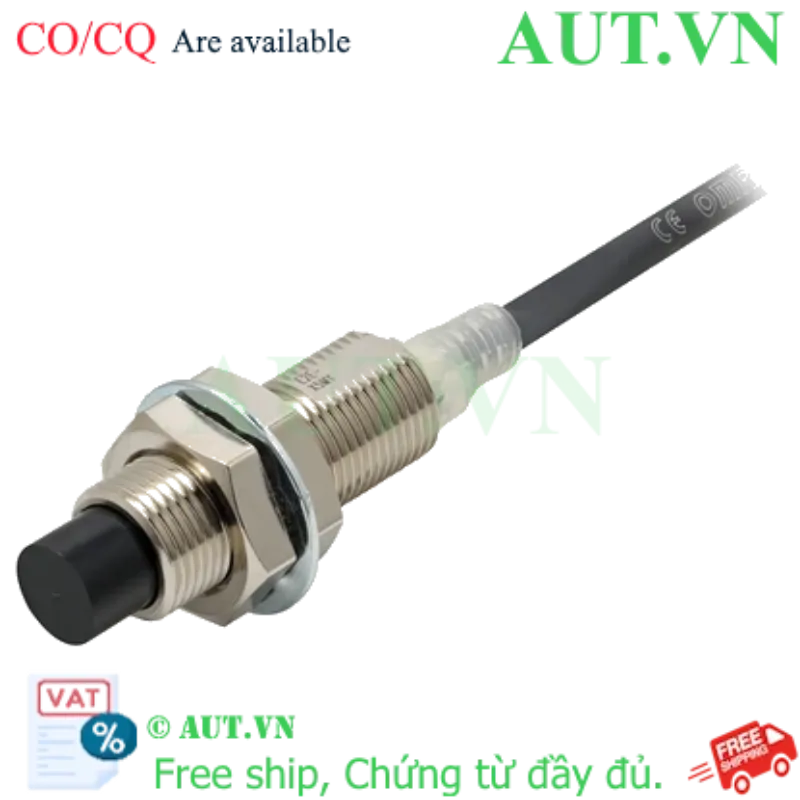

Cảm biến tiệm cận Omron E2E-X5MY1 2M Cảm biến tiệm cận Omron E2E-X5MY1 2M Proximity Sensor Cylinder type (with screw) Sensing distance: 5 mm Unshielded AC 2-wire NO Pre-wired model Standard PVC cable (oil resistant) 2 m Mua Ngay : nhà chế tạo: Omron SKU: E2E-X5MY1 2M Ngày giao hàng: 1-3 days Giá cũ: 1.789.960 ₫ Giá bán: 1.491.633 ₫ Số lượng: Thêm vào giỏ hàng Giao đến Chọn quốc gia Vietnam Vietnam * Khác * Phương pháp vận chuyển Tên Ngày dự kiến giao hàng Giá bán Không có tùy chọn giao hàng nào Áp dụng Custom wishlist được Thêm vào danh sách yêu thích Thêm vào danh sách so sánh Thông Tin Sản Phẩm: E2E-X5MY1 2M Thông Tin Kỹ Thuật cơ bản của : Cảm biến tiệm cận Omron E2E-X5MY1 5M Sensing head size M12 Type Cylinder type (with screw), Unshielded Power source AC 2-wire models Sensing distance 5 mm ±10% Setting distance 0 to 4 mm Operation mode NO Thông số kỹ thuật chi tiết sản phẩm: Cảm biến tiệm cận Omron E2E-X5MY1 5M Sensing head sizeM12TypeCylinder type (with screw), UnshieldedPower sourceAC 2-wire modelsSensing distance5 mm ±10%Setting distance0 to 4 mmDifferential distance10% max. of sensing distanceSensing objectFerrous metal (Sensitivity lowers with non-ferrous metals.)Standard sensing objectIron 15 x 15 x 1 mmResponse frequency25 HzPower supply voltage24 to 240 VACOperating voltage range20 to 264 VACLeakage current1.7 mA max.Control output (Switching capacity)5 to 200 mAIndicatorOperation indicator (red)Operation modeNOProtective circuitSurge suppressorAmbient temperature (Operating)-40 to 85 ℃(with no freezing or condensation)Ambient temperature (Storage)-40 to 85 ℃(with no freezing or condensation)Ambient humidity (Operating)35 to 95 % (with no condensation)Ambient humidity (Storage)35 to 95 % (with no condensation)Temperature influence±15% max. of sensing distance at 23 ℃ in the temperature range of -40 to 85 ℃±10% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃Voltage influence±1% max. of sensing distance at rated voltage in the rated voltage ±15% rangeInsulation resistanceBetween charged parts and the case: 50 MΩ min. at 500 VDCDielectric strengthBetween charged parts and the case: 4,000 VAC 50/60 Hz 1 minVibration resistanceDestruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 hShock resistanceDestruction: 1000 m/s2 10 times each in X, Y, and Z directionsDegree of protectionIEC: IP67Company standard: Oil-proofConnection methodPre-wired models (2 m)WeightPackage: Approx. 70 gMaterialCase: Brass nickel platingSensing surface: Polybutylene terephthalate (PBT)Cable: PVCClamping nuts: Brass nickel platingToothed washers: Iron zinc platingAccessoriesInstruction manual, Clamping nuts, Toothed washers Cam Kết Chất Lượng và Dịch Vụ Chúng tôi có hơn 35.000 sản phẩm vì vậy hãy liên hệ với chúng tôi Để được tư vấn và check tình trạng hàng bạn nhé! AUTO TECH VN cam kết: 1. Hàng Chính Hãng. 2. Xuất được Hóa đơn VAT. 3. Cấp CO/CQ đầy đủ. 4. Giá cạnh tranh. 5. Sản phẩm bảo hành theo chính sách của hãng.6. Miễn Phí hỗ trợ cài đặt và sử dụng thiết bị. Thông Tin Liên Hệ AUTO TECH VN - AUT.VN ĐT/ Zalo : 0968.053.025 Email: support@aut.vn Email2: sale@aut.vn Địa chỉ: 07 KĐT Flora Mizuki, Đường Số 1, Bình Hưng, Bình Chánh, Hồ Chí Minh Thẻ sản phẩm Cảm biến tiệm cận (8116) , Proximity Sensor (81) , E2E-X5MY1 2M (1) , Sensors (1856) , ProximitySensors (661) , Cylindrical (390) , E2E (85) , E2E-X5MY12M (1)
