| Power supply voltage | 100 to 240 VAC 50/60 Hz |
|---|
| Allowable power supply voltage range | 85 to 110% of the power supply voltage |
|---|
| Power consumption | 18 VA max. (at maximum load) |
|---|
| External power supply | 10 VDC ±5% 100 mA |
|---|
| Input type | Load dell/DC voltage |
|---|
| Output type | Judgment output: TransistorComparative output: HH, H, PASS, L, LL |
|---|
| Voltage measurement input | Measurement range | A: 0.00 to 199.99 mVB: 0.000 to 19.999 mVC: ±100.00 mVD: ±199.99 mV |
|---|
| Accuracy | A: ±0.1% rdg ±1 digit max.B: ±0.1% rdg ±5 digit max.C: ±0.1% rdg ±3 digit max.D: ±0.1% rdg ±1 digit max. |
|---|
| Input impedance | 1 MΩ min. |
|---|
| Allowable instantaneous input (30 s) | ±200 V |
|---|
| Load cell measurement input | Measurement range | A: 0.00 to 199.99 mVB: 0.000 to 19.999 mVC: ±100.00 mVD: ±199.99 mV |
|---|
| Accuracy | A: ±0.1% rdg ±1 digit max.B: ±0.1% rdg ±5 digit max.C: ±0.1% rdg ±3 digit max.D: ±0.1% rdg ±1 digit max. |
|---|
| Input impedance | 1 MΩ min. |
|---|
| Allowable instantaneous input (30 s) | ±200 V |
|---|
| Event input | Number of input | 8 point |
|---|
| Input method | NO-Voltage contact/NPN open collector |
|---|
| Event name | Timing inputStartup compensation timer inputHold inputForced-zero inputReset inputBank input |
|---|
| Connection method | Connector |
|---|
| Contact | ON: 1 kΩ max.OFF: 100 kΩ min. |
|---|
| No-contact | ON residual voltage: 2 V max. (TIMING input 3 V max.)OFF leakage current: 4 mA max. (TIMING input 17 mA max.)Maximum applied voltage: 30 V max.DCLeakage current: 0.1 mA max. (TIMING input 1.5 mA max.) |
|---|
| Judgment output | Transistor output | NPN open collectorMaximum load voltage: 24 V max.DCMaximum load current: 50 mA max.Leakage current: 100 µA max. |
|---|
| Display | Display method | Negative LCD (backlit LED) 7-segment digital display |
|---|
| Digits | 5 digit (-19999 to 99999) |
|---|

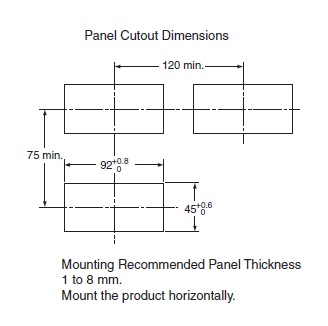

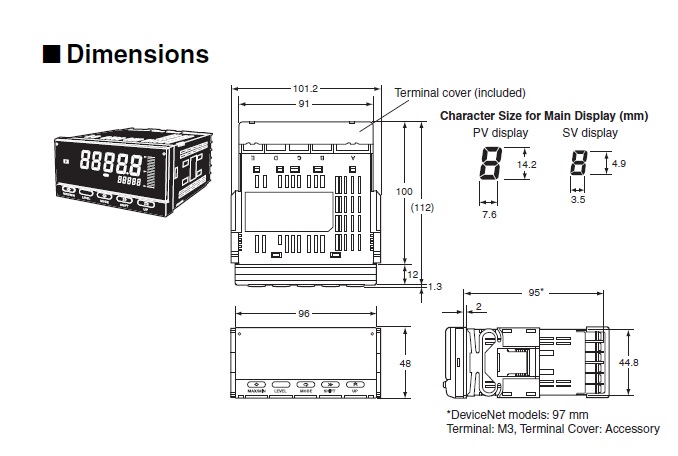

| Character height | PV: 14.2 mm (green/red)SV: 4.9 mm (green) |
|---|
| Sampling period | 50 times/second (20 ms) |
|---|
| Comparative output response time | 100 ms max. (time until the comparative output is made when there is a forced sudden change in the input signal from 15% to 95% or 95% to 15%.) |
|---|
| Insulation resistance | 20 MΩ min. (at 500 VDC) |
|---|
| Dielectric strength | Between the entire external terminal and case: 2,300 VAC 1 min |
|---|
| Noise immunity | ±1,500 V at power supply terminals in normal or common mode (waveform with 1-ns rising edge and pulse width of 1 µs/100 ns) |
|---|
| Vibration resistance | Malfunction: 10 to 55 Hz, Acceleration: 50 m/s2, 5 min 10 sweeps each in X, Y, and Z directions |
|---|
| Shock resistance | Malfunction: 150 m/s2, 3 times each in 3 axes 6 directions |
|---|
| Degree of protection | Front: NEMA4X for indoor use (equivalent to IP66)Case rear: IP20Terminals: IP00 + finger protection (VDE0106/100) |
|---|
| Memory protection | EE-PROM (non-volatile memory) Number of rewrites: 100,000 |
|---|
| Ambient temperature | Operating: -10 to 55 ℃ (with no freezing or condensation)Storage: -25 to 65 ℃ (with no freezing or condensation) |
|---|
| Ambient humidity | Operating: 25 to 85 % |
|---|
| Accessories | Waterproof packing, Fixtures, Terminal Cover, Unit label, Instruction manual |
|---|
| Weight | Approx. 300 g |
|---|
