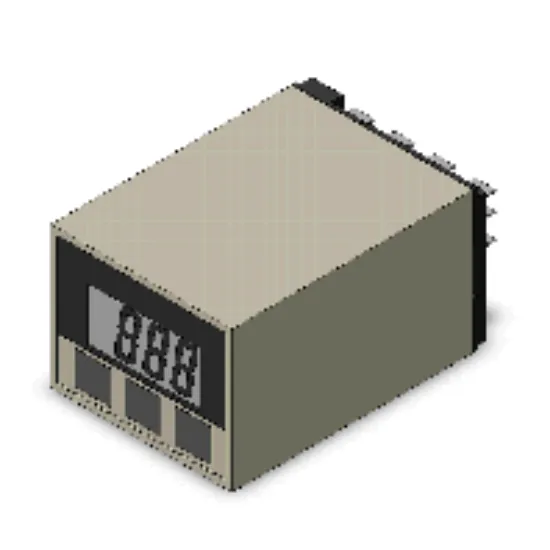

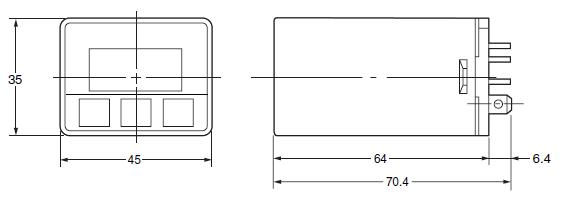

| Shape | 45 x 35 x 70 mm (socket type) |
|---|
| Fixed/Programmable | Fixed |
|---|
| Power supply voltage | 100 to 240 VAC (50/60 Hz) |
|---|
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
|---|
| Power consumption | Approx. 3 VA |
|---|
| Input | Number of input points | 1 point |
|---|
| Temperature input | Interchangeable thermistor temperature sensor100 to 200 ℃ |
|---|
| Control method | ON/OFF |
|---|
| Control output | Number of total control output | 1 point |
|---|
| Control output 1 | Relay output |
|---|
| Control output 2 | None |
|---|
| Relay output | 1 pointSPST-NO, 10 A at 250 VAC, cos φ= 1 (resistive load) |
|---|
| Setting method | Digital setting using front panel keys |
|---|
| Indication method | LCD digital display |
|---|
| Sampling period | 2 s |
|---|
| Hysteresis | 1 to 9 ℃ (in increments of 1 ℃) |
|---|
| Insulation resistance | 100 MΩ min. (500 VDC megger) |
|---|
| Dielectric strength | 2810 VAC, 50/60 Hz for 1 min (Between charged terminals and uncharged metallic parts, between power supply terminals and input terminals, between power supply terminals and output terminals, and between input terminals and output terminals) |
|---|
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm double amplitude for 2 h each in X, Y, and Z directionsMalfunction: 10 to 55 Hz, 0.5 mm double amplitude for 10 min each in X, Y, and Z directions |
|---|
| Shock resistance | Destruction: 300 m/s2, 3 times each in 6 directionsMalfunction: 100 m/s2, 3 times each in 6 directions |
|---|
| Ambient temperature (Operating) | -10 to 55 ℃ (with no freezing or condensation) |
|---|
| Ambient temperature (Storage) | -25 to 65 ℃ (with no freezing or condensation) |
|---|
| Ambient humidity (Operating) | 25 to 85 % |
|---|
| Degree of protection | Front panel: IP40, Terminal section: IP00 |
|---|
| Memory protection | Non-volatile memory (number of writes: 100,000) |
|---|

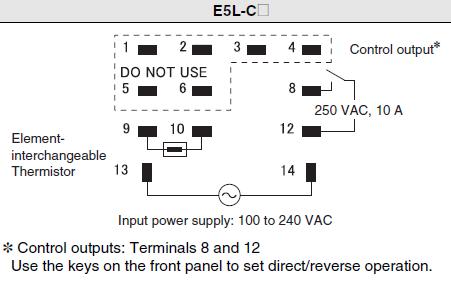

| Terminal type | Plug-in |
|---|
| Accessories | Interchangeable thermistor temperature sensor |
|---|
| Weight | Approx. 80 g |
|---|
| Sold separately | Front connecting socket: PTF14AFront-connecting Socket with Finger Protection: PTFZ-14-EFront connecting socket (Push-In Plus Terminal Block): PTF-14-PU-LMounting Bracket: Y92H-10 |
|---|
